(UPVC,CPVC,PVDF)塑料隔膜阀

(UPVC,CPVC,PVDF)进口塑料隔膜阀 主要性能 Main performance

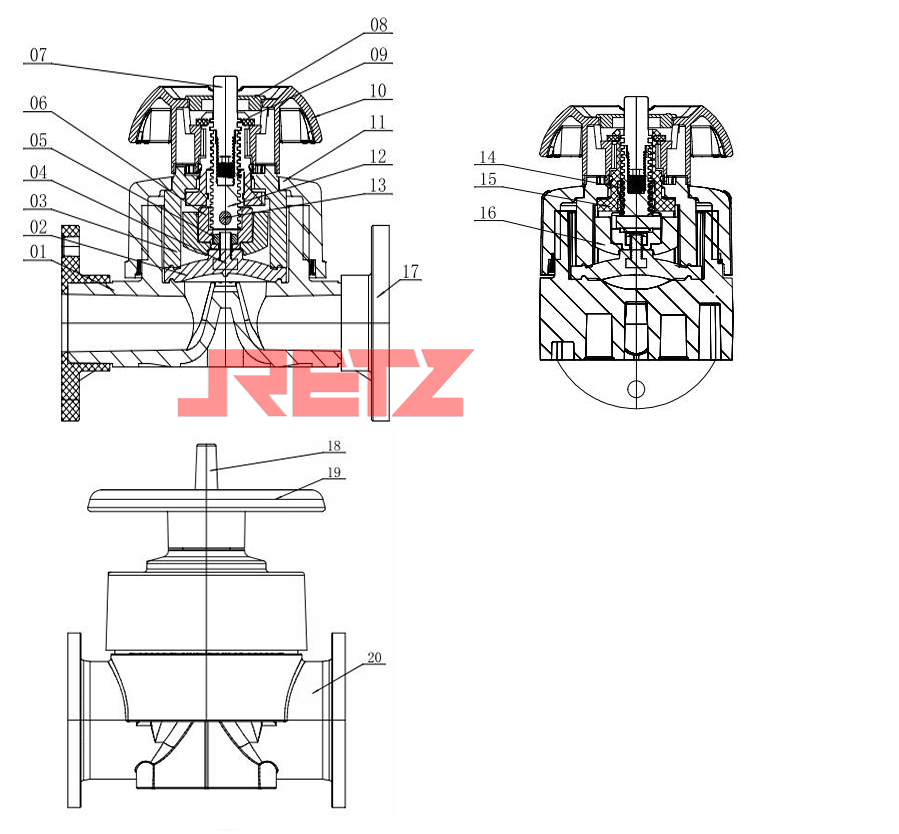

UPVC，CPVC塑料隔膜阀可以手动也可以气动操作，开启和关闭是由阀杆的上下运动来实现。当阀杆处于上位时，弧形膜片向上弯曲，阀门形成导通状态。当阀杆由上往下运行时带动压板使膜片弯曲，膜片紧贴阀座密封区域，关闭阀门retz品牌 UPVC and CPVC plastic diaphragm valves can be operated manually or pneumatically. Opening and closing are realized by the up and down movement of the valve stem. When the valve stem is in the upper position, the arc-shaped diaphragm bends upward, and the valve is in a conductive state. When the valve stem runs from top to bottom, the pressure plate is driven to bend the diaphragm, and the diaphragm is close to the sealing area of the valve seat to close the valve

技术参数 Technical paramete

1. 开关扭力小 Switch torque is small

2. 部件可更换，简单经济 Simple economy

3. 材料经过纳米改性，提高产品的耐压性及抗冲击性 The material is nano-modified to improve the pressure resistance and impact resistance of the product

4. 阀体加厚处理，抗压性能高 Thickened valve body for high compression resistance

5. 阀门出厂 100% 压力测试 Valve factory 100% pressure test

6. 本体和密封经过特殊处理，性能更好 The body and seal are specially treated for better performanceActuator performs 500,000 opening and closing tests

法兰式塑料隔膜阀  Flange plastic diaphragm valve

密封性能好，操纵扭矩小 Good sealing performance and small operating torque

规格:1/2"-6" Specification: 1/2"-6"

压力:10bar（145PSI）Pressure: 10 bar (145 psi)

温度:≤100℃

由令式塑料隔膜阀  Youling plastic diaphragm valve

密封性能好，操纵扭矩小 Good sealing performance and small operating torque

规格:1/2"-2" Specification: 1/2"-2"

压力:10bar（145PSI）Pressure: 10 bar (145 psi)

温度:≤100℃

插口式塑料隔膜阀 Socket type plastic diaphragm valve

密封性能好，操纵扭矩小 Good sealing performance and small operating torque

规格:1/2"-2" Specification: 1/2"-2"

压力:10bar（145PSI）Pressure: 10 bar (145 psi)

温度:≤100℃
