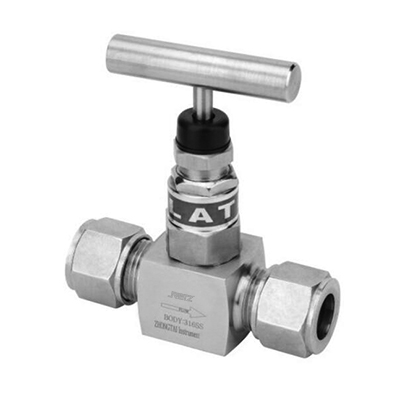

卡套式针型阀 仪表阀 压力表阀
简要描述：RETZ进口卡套式针型阀，仪表阀，压力表阀两端为双卡套连接,把管子直接插入再锁紧卡套即可,安装维护极其方便,是仪表测量管路系统中作开启或切断管路的开关阀,具有受压大、严密的密封性能,通常用在较小流量,较高压力的气体或者液体介质的切断
品牌：RETZ- 工况条件：开启/截止/节流
- 温度/压力：P-T: 483bar@25℃/246bar@648℃
- 更新时间：2022/09/14
进口卡套式针型阀，仪表阀，压力表阀性能参数 Performance parameter
卡套式针型阀针型阀亦称双卡套截止阀、卡套式仪表阀、卡套式压力表阀、卡套式节流阀 RETZ Ferrule type needle valve Needle valve is also called double ferrule stop valve, ferrule type instrument valve, ferrule type pressure gauge valve and ferrule type throttle valve
结构特征:
锥面密封,活动阀瓣 Structural features: cone seal, movable valve disc

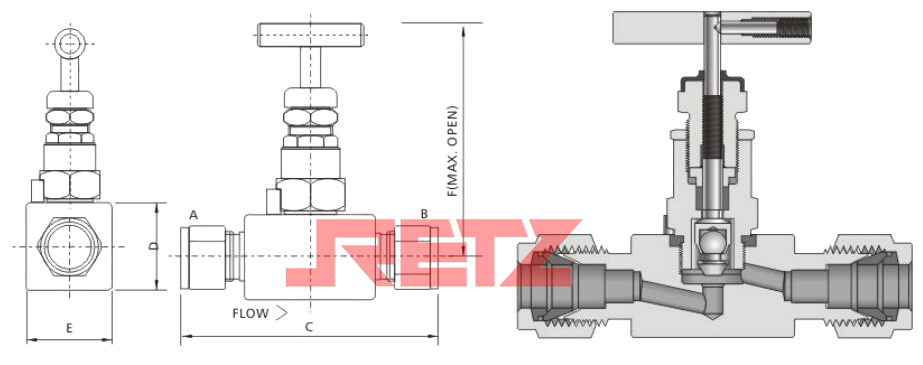

流通型式:直通，角式 Circulation type: straight, angle
标准 Standard∶ ANSI B16.34 ASME
工作压力 Working Pressure∶483bar@25℃/246bar@648℃
额定温度Temperature Rating∶648℃柔性石墨填料 with Graphite packing
材料:304SS,304L,316SS,316L,316H,321,A105,F91,F92,F22,16Mu,LF2等
规格尺寸:1/4＂－1＂
结构特征
产品的设计符合ASME VIII，ANSI B16.34/B16.5B31.3 和API6D的相关要求retz品牌 The product design shall conform to ASME VIII, ANSI B16.34/B16.5B31.3 and API6D
阀瓣可变换为节流型、针型、球型,可用以较精确的流量调节 The valve disc can be changed into throttling type, needle type and ball type for more accurate flow regulation

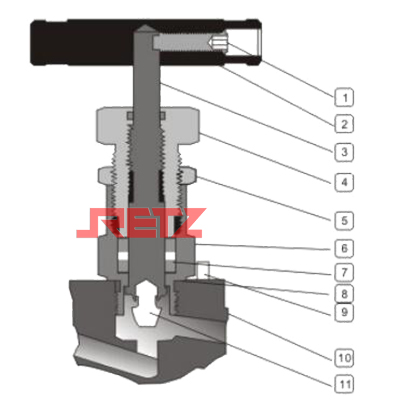

锥形阀芯 Conicalvalvecore

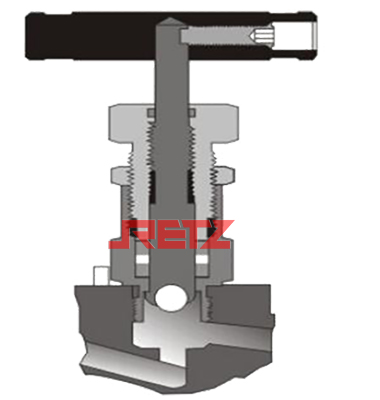

| 球形阀芯 Sphericalvalvecore
|
No. | 部件描述 Part description | 材料 Material | ||
1 | 螺钉 Screw | 304SS | 304SS | CS |
2 | T型手柄T bat handle | 304SS | 304SS | CS |
3 | 阀杆 stem | 316LSS | 304LSS | 410SS |
4 | 密封压盖 gland retainer | 316SS | 304SS | CS |
5 | 防松螺母 Check nut | 304SS | 304SS | CS |
6 | 填料接头Gland body | 316LsS | 304LSS | CS |
7 | 填料 Gland packing | 柔性石墨或PTFE Graphite orPTFE | 柔性石墨或PTFE Graphite orPTFE | 柔性石墨或PTFE Graphite orPTFE |
8 | 垫片 The gasket | 316SS | 304SS | 304SS |
9 | 锁销 Lock pin | 304SS | 304SS | 304SS |
10 | 阀体 Valve Body | 316SS | 304SS | CS |
11 | 阀芯 Valve core | 司太立STELLITE | 司太立STELLITE | 司太立STELLTE |
不旋转阀芯,以确保压力关闭的紧密性 Do not rotate the spool to ensure tight pressure closure
不旋转阀杆承受超高压和超高温 Non rotating valve rod withstands ultra-high pressure and ultra-high temperature

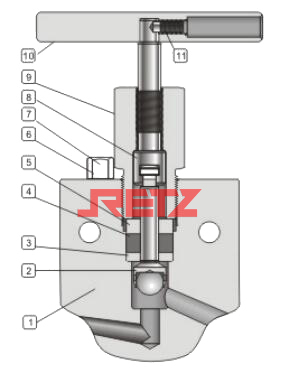

No. | 部分描述 Part description | 材料 Material |
1 | 阀体 Valve Body | 316SS |
2 | 下阀杆 The lower stem | 316SS+STELLITE |
3 | 垫圈 The gasket | 316SS |
4 | 填料 Gland packing | 柔性石墨或PTFEGraphite or PTFE |
5 | 压紧垫圈 Pressure washer | 316SS |
6 | 固定螺钉 Retaining screw | 304SS |
7 | 锁紧螺母 Lock nut | 304SS |
8 | 上阀杆 The upper stem | 316SS |
9 | 密封压盖 gland retainer | 316LSS |
10 | T型手柄T bat handle | 304SS |
11 | 螺钉 Screw | 304SS |
填料位于阀杆的下方,以隔绝螺纹与介质的接触 The packing is located below the valve stem to isolate the contact between the thread and the medium
阀杆和填料函接头和阀体是相扣设计,防止阀杆脱离阀门 The joint between the valve stem and stuffing box and the valve body is designed to be interlocked to prevent the valve stem from leaving the valve
