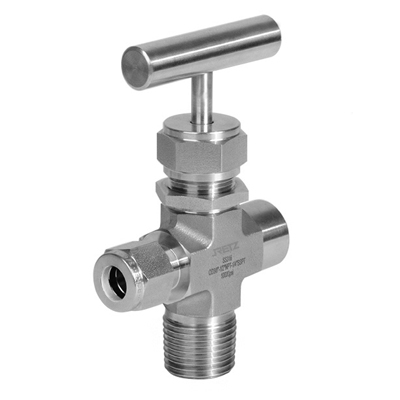

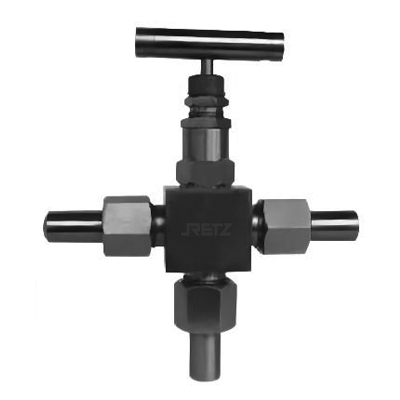

三通针型阀 截止阀

进口三通针型阀，截止阀性能参数  Performance parameter

三通针型阀亦称三通截止阀、三通仪表阀、三通压力表阀、三通分流针型阀、三通切换针型阀  RETZ  three-way needle valve is also called three-way stop valve, three-way instrument valve, three-way pressure gauge valve, three-way three-way diversion needle valve, three-way switch needle valve

结构特征:

锥面密封,活动阀瓣 Structural features: cone seal, movable valve disc

流通型式: 三通式，直通，角通，分流 Circulation type: three-way, straight, angle, split

功    能:根据阀芯的不同有切断和节流两种 Function: according to the different valve cores, there are two kinds of cutting and throttling

三通针型阀是通过旋转阀杆的位置来改变两个主孔或主孔和旁边孔之间的连通的retz品牌 The three-way needle valve changes the connection between the two main holes or between the main hole and the side hole by rotating the position of the valve stem

逆时针旋转阀杆以连接两个主孔并关闭旁通孔  Rotate the valve stem counterclockwise to connect the two main ports and close the bypass port

顺时针旋转阀杆和关闭两个主孔，其中一个主孔将连接到旁通孔 Turn the valve stem clockwise and close the two main holes, one of which will be connected to the bypass hole

如果旋转阀杆居中，也就不是顶部也不是底部，这个时候所有的三个孔都连接起来了 If the rotary valve rod is centered, it is neither the top nor the bottom. At this time, all three holes are connected

进口三通针型阀，截止阀标准 Standard∶ ANSI B16.34 ASME

工作压力 Working Pressure∶483bar@25℃/246bar@648℃

额定温度Temperature Rating∶648℃柔性石墨填料 with Graphite packing

材料:304SS,304L,316SS,316L,316H,321,A105,F91,F92,F22,16Mu,LF2等

规格尺寸:1/4＂－1＂

结构特征 structure characteristics

产品的设计符合ASME VIII，ANSI B16.34/B16.5B31.3 和API6D的相关要求  The product design shall conform to ASME VIII, ANSI B16.34/B16.5B31.3 and API6D

提供圆形手轮或一字手柄  Provide round handwheel or slotted handle

多种连接方式（螺纹、焊接、外螺纹活焊接、卡套）可选 Multiple connection methods (thread, welding, external thread movable welding, ferrule) are optional

阀瓣可变换为节流型、锥形、球型,可用以较精确的流量调节 The valve disc can be changed into throttling type, needle type and ball type for more accurate flow regulation

阀尖垂直运动，无旋转，使用寿命长 Vertical movement of valve tip, no rotation, long service life

耐高温压高、阀采用优质锻钢制造，阀杆做渗碳处理，阀芯全部焊STL合金，密封性和反复性好 High temperature and pressure resistance, the valve is made of high-quality forged steel, the valve stem is carburized, and the valve element is all welded with STL alloy, with good sealing and repeatability

气体介质阀座采用PTFE、PEEK软密封材料提高本阀的密封性 PTFE and PEEK soft sealing materials are used for the gas medium valve seat to improve the sealing performance of the valve

根据安装安求,可选择带有面板安装结构 According to the installation requirements, the panel mounting structure can be selected
