法兰全焊接球阀 全焊封钢制球阀

进口法兰全焊接球阀，全焊封钢制球阀性能描述 Performance description

法兰全焊接球阀（全焊封钢制球阀）是一种很好节能环保产品，其特点在阀门关断时内部泄漏量可达到“零泄露”状态，可使能源流失造成的损失降低到低点。大大提高节能性与热能计量的精确度。阀门由全焊接的阀体和碳增强特氟隆密封垫组成，可以频繁操作，在有杂质及化学物质的情况下长寿命运行。研磨精细的不锈钢球体可以保证多年开闭自如，运行可靠  RETZ Flanged all welded ball valve (all welded sealed ball valve) is a good energy-saving and environmental protection product. Its feature is that when the valve is turned off, the internal leakage can reach the "zero leakage" state, which can reduce the loss caused by energy loss to a low point. Greatly improve energy conservation and accuracy of heat energy measurement. The valve is composed of a fully welded valve body and a carbon reinforced Teflon gasket, which can be operated frequently and operates for a long time in the presence of impurities and chemicals. The finely ground stainless steel ball can ensure free opening and closing for many years and reliable operation

执行标准 Executive standards

设计规范Design code：API 6D、ASMEB 16.34

结构长度 Structure length：ASME B16.10、GB12221

对焊端形式 Butt welding end form：ASME B16.25、ASME B31.4/31.8

检验与试验 Inspection and test：API 598、API 6D、GB13927

耐火试验 Fire resistance test：API 607、API 6FA

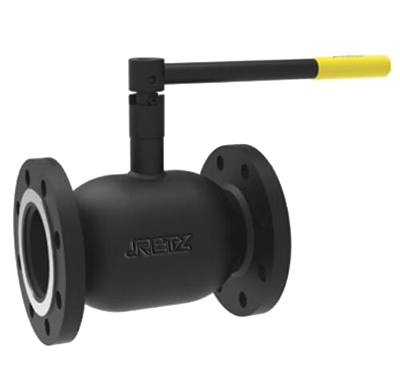

手动法兰全焊接钢制球阀 DN15-DN200  Manual flange all welded steel ball valve DN15-DN200

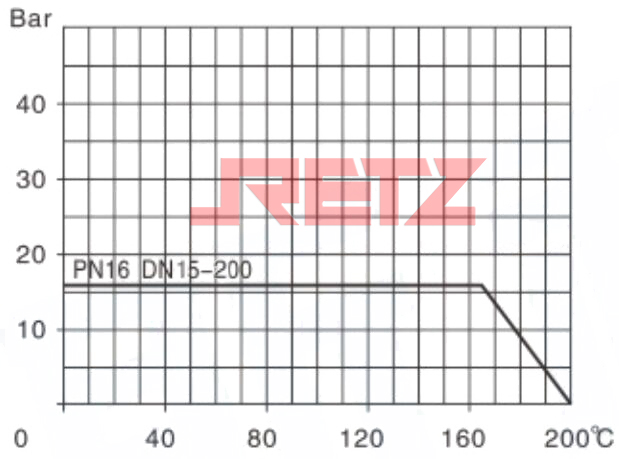

压力-温度等级Pressure temperature class：ASME B16.34、API608

适用范围：城市燃气、供暖系统、工业用途、区域供热、各种工业设备、热力管道

介质：水，空气，油和其它不与碳钢发生化学反应的流体

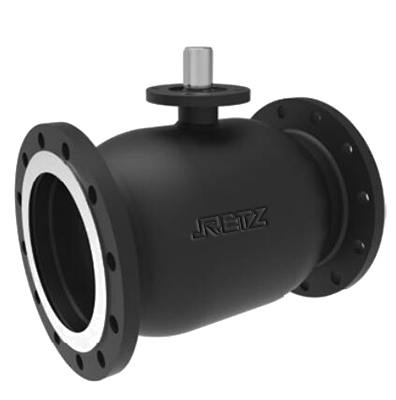

涡轮法兰全焊接钢制球阀 DN125-DN600

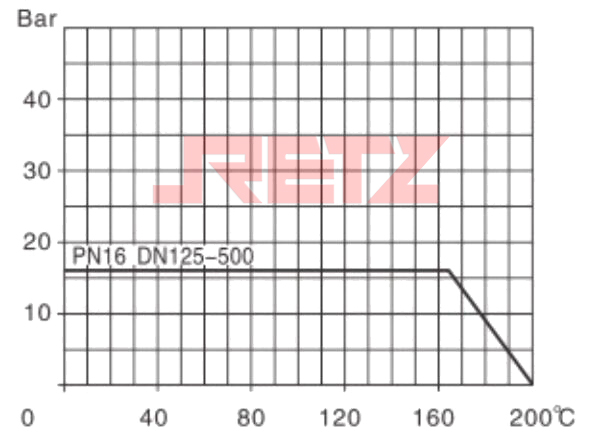

压力-温度等级Pressure temperature class：ASME B16.34、API608

适用范围：城市燃气，煤气，燃气管道、采暖供暖系统、工业用途、区域供热、各种工业设备、暖通，热力管道、压缩空气、太阳能系统

介质：水，空气，油和其它不与碳钢发生化学反应的流体

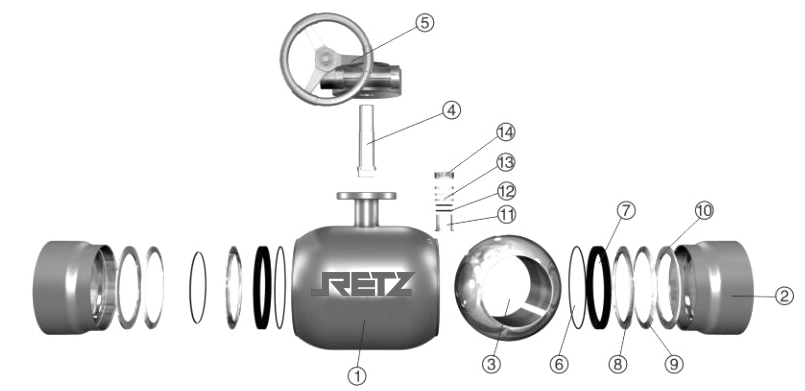

进口法兰全焊接球阀，全焊封钢制球主要零部件材料 Main parts and materials
