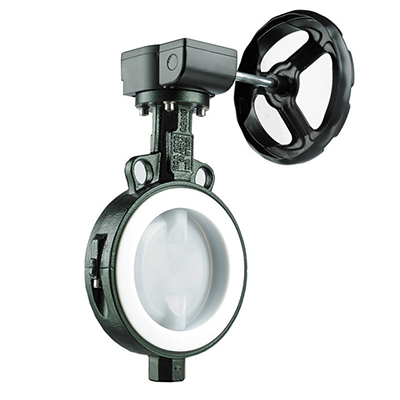

(耐酸碱,防腐蚀)衬氟蝶阀

(耐酸碱,防腐蚀)进口衬氟蝶阀性能描述 Performance description

(耐酸碱防腐蚀)衬氟蝶阀在阀杆轴部的密封。在上下密封轴处采用独特设计的四级弹性垫与O型圈相结合的密封结构，更适应高温与低温使用环境的温差变化。弹性密封机构体使两平面不透气的紧密配合，始终保持最低的操作扭矩。在端面上的衬里提供了比较宽的密封面·阀瓣采用直板式设计最大限度降低流通的阻力，提高在DCS控制系统中调节微动流量的Cv值 RETZ (Acid and alkali resistant and anti-corrosion) sealing of fluorine lined butterfly valve at the stem shaft. The upper and lower sealing shafts adopt a sealing structure of unique design of four stage elastic pads combined with O-rings, which is more suitable for the temperature difference changes in high-temperature and low-temperature service environments. The elastic sealing mechanism body makes the two planes airtight and closely fit, and always maintains the lowest operating torque. The lining on the end face provides a wide sealing surface. The valve disc adopts a straight plate design to minimize the flow resistance and improve the Cv value for regulating the inching flow in the DCS control system

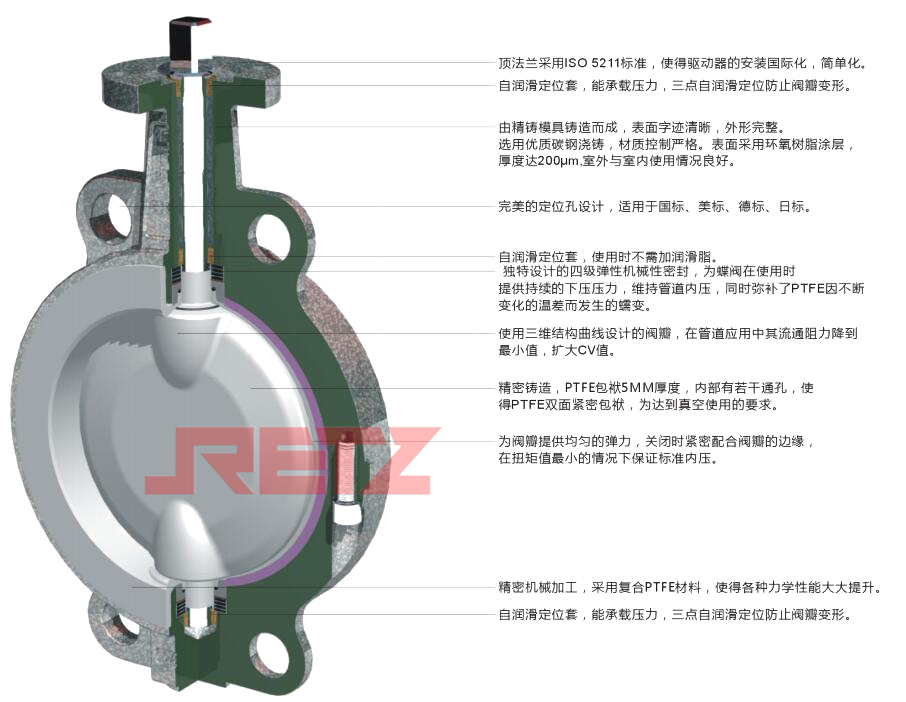

三维解剖截面装配图 Three dimensional anatomical sectional assembly drawing

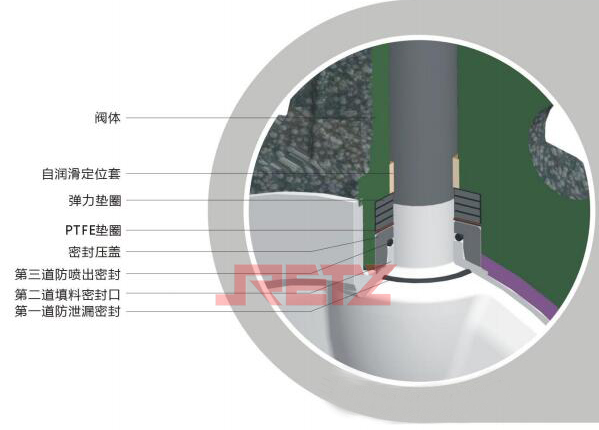

三维解剖密封结构图 Three dimensional anatomical seal structure diagram

(耐酸碱,防腐蚀)进口衬氟蝶阀技术资料 technical information

设计制造标准：GB/T12238 API609

结构长度标准：GB/T12221 API609 Table A

压力试验标准：GB-T 13927-2008 API598

法兰标准：HG/T 20592 ASME B16.5 JIS B2220

公称通径∶2" to 24"（inch）DN50～DN600

操作压力∶ANSI125LB，150LB，JIS10K，DINPN16

使用温度：-29℃～ +180℃

法兰连接标准∶DIN PN 10/（16）ANSI150，JIS 10K

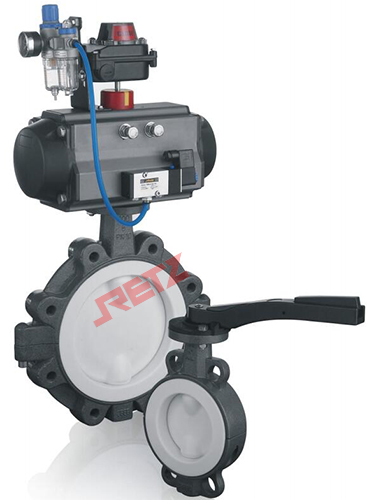

驱动方式∶手动/蜗轮转动/气动/电动

适用介质除熔融碱金属，元素氟外的各种浓度的酸、碱、盐、王水，有机酸等强腐蚀的介质 Applicable medium: acid, alkali, salt, aqua regia, organic acid and other strong corrosive media with various concentrations except molten alkali metal and elemental fluorine

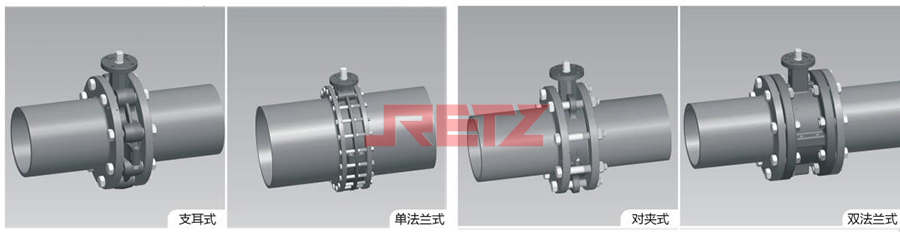

连接形式 Body Type

RETZ衬氟适用于多种法兰安装的标准，如DIN2501（PN10/16）ANSI B16.5 Class150,JIS B2212 10K等设计标准的法兰 RETZ fluorine lining is applicable to various flange installation standards, such as DIN2501 (PN10/16) ANSI B16.5 Class150, JIS B2212 10K and other flange design standards

阀座密封圈可以作为垫片使用，无需外加垫片 The valve seat sealing ring can be used as a gasket without additional gasket

所有蝶阀都是不可用焊接方式进行安装，否则会使阀座密封面因高温而变形 All butterfly valves cannot be installed by welding, otherwise the sealing surface of valve seat will be deformed due to high temperature

特别注意的是要对准阀门的中心并进行检查后才能开关阀门 Special attention shall be paid to aligning the center of the valve and checking before opening and closing the valve

主要特点 main features

低扭矩 操作轻便可以使用更小执行机构 Low torque operation is convenient, and smaller actuators can be used

通用型设计，可直接安装在ANSI150LB/PN10/PN16/JIS10K的法兰 Universal design, can be directly installed on ANSI150LB/PN10/PN16/JIS10K flange

高阀颈设计，适用于高温管线保温材料的包复 High valve neck design, applicable to the wrapping of high-temperature pipeline insulation materials

分体式设计，高性能轴密封的典型结构 Split design, typical structure of high-performance shaft seal

无缝型设计，防止外部污染物进入阀腔 Seamless design to prevent external contaminants from entering the valve chamber

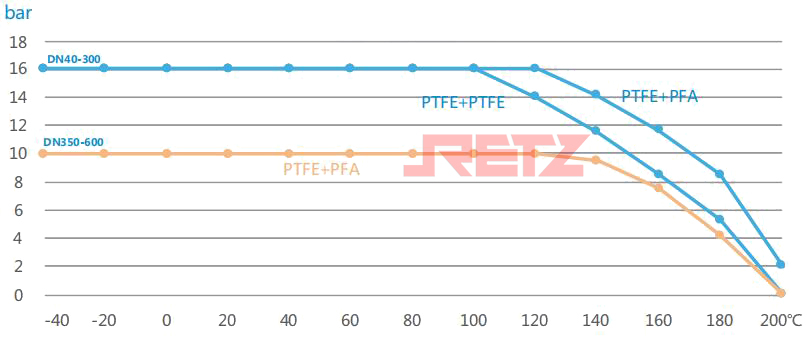

温度与压力的关系  Relationship between temperature and pressure

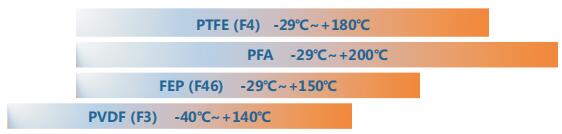

衬里材料耐温性 Temperature resistance of lining material

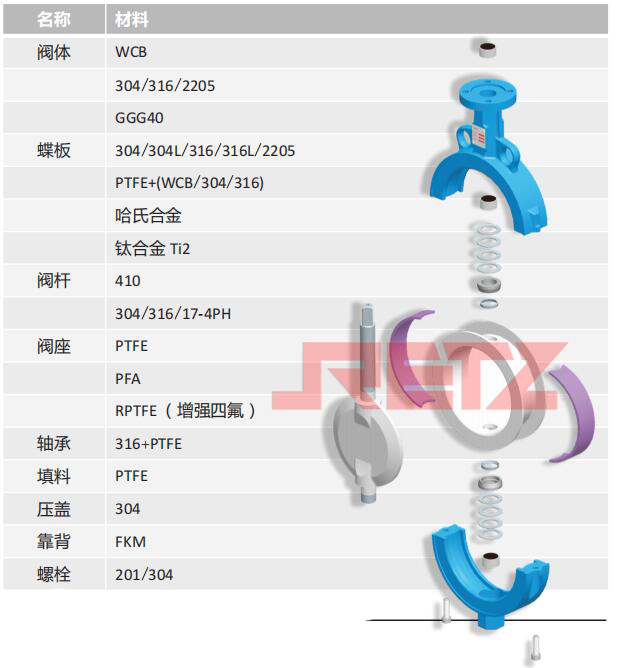

零部件材质表 Parts material table

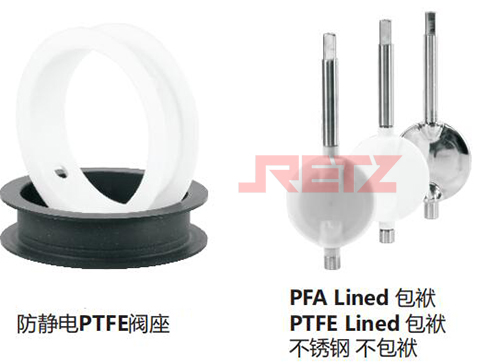

可跟换配件

扭矩值 (Nm)
