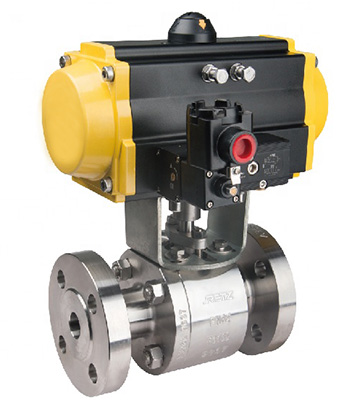

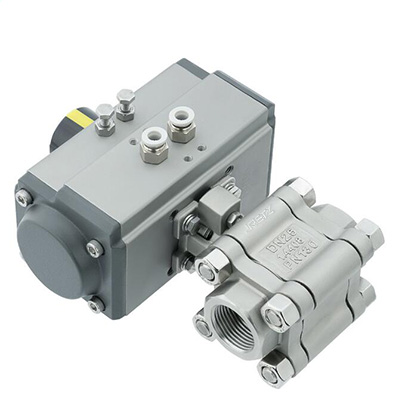

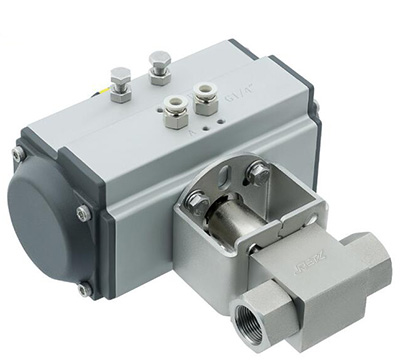

(法兰，内螺纹)气动高压球阀

(法兰，内螺纹)进口气动高压球阀旋转控制芯轴使球体从开启位置切换到关闭位置，系统压力将球体推向密封碗的无压制侧并无泄漏地切断液流  RETZ (Flange, internal thread) The inlet pneumatic high-pressure ball valve rotates the control spindle to switch the ball from the open position to the closed position, and the system pressure pushes the ball to the non pressing side of the sealing bowl to cut off the liquid flow without leakage

性能参数 Performance description

(法兰，内螺纹)进口气动高压球阀 执行器参数 Actuator parameters

采用双作用式和单作用式（弹簧复位）气动执行器，齿轮齿条传动，安全可靠；大口径阀门采用系列AW型气动执行器拔叉式传动，结构合理，输出扭矩大  Double acting and single acting (spring return) pneumatic actuators are used for rack and pinion transmission, which is safe and reliable; The large diameter valve adopts series AW pneumatic actuator fork type transmission, with reasonable structure and large output torque

1、齿轮式双活塞，输出力矩大，体积小 Gear type double piston, large output torque, small volume

2、可在顶部、底部安装手动操作机构 Manual operating mechanism can be installed at the top and bottom

3、齿条式连接可调节开启角度、额定流量 Rack type connection can adjust opening angle and rated flow

4、执行器可选带电讯号反馈指示及各类附件以实现自动化操作 The actuator can select live signal feedback indication and various accessories to realize automatic operation

5、IS05211标准连接为产品的安装更换提供了方便 IS05211 standard connection provides convenience for product installation and replacement

6、两端调的节螺钉可使标准产品在0°和90°有±4°的可调范围。确保与阀门的同步精度 The adjustable pitch screws at both ends can make the standard products have an adjustable range of ± 4 ° at 0 ° and 90 °. Ensure synchronization accuracy with the valve

特点Characteristic

全流量流通，启闭迅速,从全开到全关只要旋转90° Full flow circulation, quick opening and closing, and 90 ° rotation from full opening to full closing

流体阻力小，全通径的球阀基本没有流阻  The fluid resistance is small, and the full bore ball valve basically has no flow resistance

耐高压，启闭迅速,扭矩低，无泄漏，不需要手工重调密封件 High pressure resistance, quick opening and closing, low

紧密可靠,密封面材料为PTFE，密封性好，能实现完全密封。在真空系统中也已广泛使用 Tight a
torque, no leakage, no need to manually readjust the sealsnd reliable, the sealing surface material is PTFE, with good sealing performance, and can achieve complete sealing. It has also been widely used in vacuum systems

在全开或全闭时，球体和阀座的密封面与介质隔离，介质通过时，不会引起阀门密封面的侵蚀  When the valve is fully opened or closed, the sealing surfaces of the ball and valve seat are isolated from the medium. When the medium passes through, it will not cause erosion of the valve sealing surface

主要零部件材料 Main parts and materials
