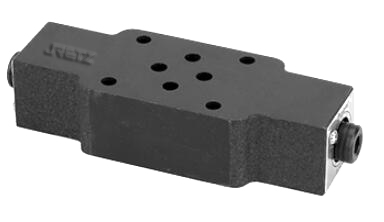

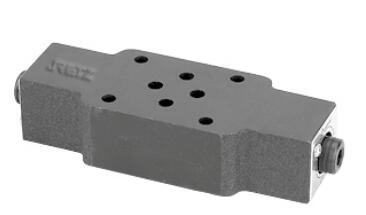

(Z2FS6)叠加式双单向节流阀

Z2FS6...4X系列叠加式双单向节流阀 技术参数 Technical paramete

通径(NG)6, 压力至31.5MPa ,流量至80L/min  Diameter (NG) 6, pressure to 31.5MPa, flow to 80L/min

(Z2FS6)进口叠加式双单向节流阀 特性 characteristic

叠加式结构 Superimposed structure

安装面符合DIN 24340 A型和ISO 4401 Mounting surface according to DIN 24340 type A and ISO 4401

3种调节形式 3 types of adjustment

带内六角锁紧螺母和防护帽的螺钉 Screw with hexagon socket lock nut and protective cap

带一个或两个插入式溢流阀 With one or two plug-in relief valves

带刻度旋钮 Dial knob

用于限定2个工作油口的主流量或控制流量 It is used to limit the main flow or control flow of 2 working oil ports

用于进口或出口节流 Used for inlet or outlet throttling

功能说明 Function description

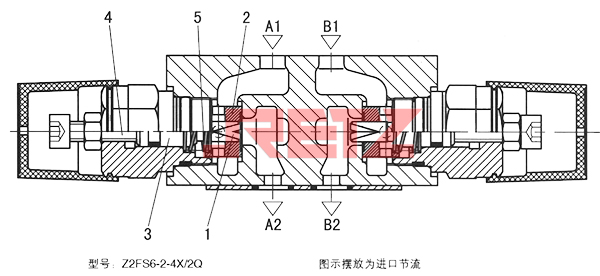

Z2FS6叠加式双单向节流阀、通过改变节流口端面大小来调节油路流量.实现流量控制。在反向时.溢流直接通过单向阀自由流动.在进口节流控制时.油液从A1口通过节流口（1）流入A2口。节流口是单向阀板（2）和节流阀芯（3）组成。通过调节螺钉（4）调节节流口（1）的大小retz品牌 Z2FS6 stacked double one-way throttle valve regulates the flow of the oil passage by changing the size of the end face of the throttle port to achieve flow control. In the reverse direction, the overflow flows freely directly through the check valve. In the inlet throttling control Oil flows from port A1 to port A2 through orifice (1). The throttle port is composed of a one-way valve plate (2) and a throttle valve core (3). Adjust the size of the throttle port (1) by adjusting the screw (4)

油液从A2口流向A1时∶压缩单向弹簧（5）打开单向阀板（2）使该阀起单向阀作用.并允许油液自由流动。改变Z2FS6叠加式单向节流阀安装位置。可实现进口节流或出口节流 When the oil flows from port A2 to port A1, compress the check spring (5) and open the check valve plate (2) to make the valve act as a check valve The oil is allowed to flow freely. Change the installation position of Z2FS6 stacked one-way throttle valve. Inlet throttling or outlet throttling can be realized

主流量限制（型号中以2Q表示）叠加式双单向节流阀为了改变执行器的速度安装于方向阀和底板之间 Main flow limit (indicated by 2Q in the model) The superimposed double one-way throttle valve is installed between the direction valve and the base plate to change the speed of the actuator

控制流量限制（型号中以1Q表示）用于控制流量限制.将叠加式双单向节流阀安装于主阀与先导阀之间 The control flow limit (1Q in the model) is used to control the flow limit. The stacked double one-way throttle valve is installed between the main valve and the pilot valve

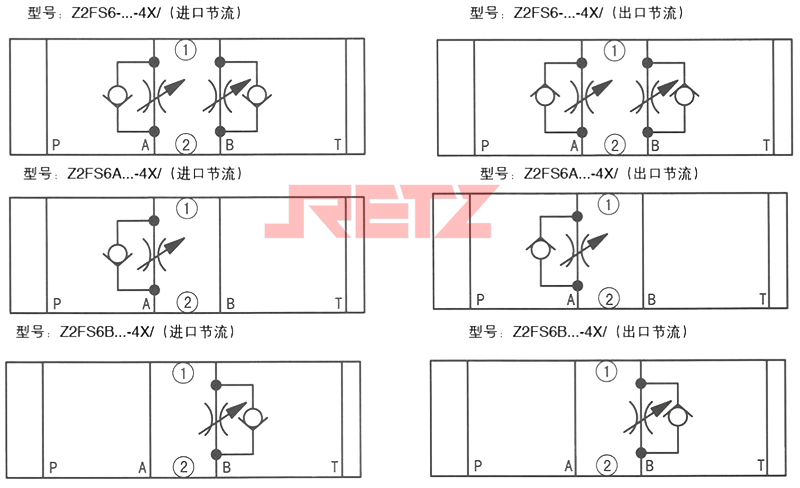

图形符号（①=阀侧；②=底板侧）

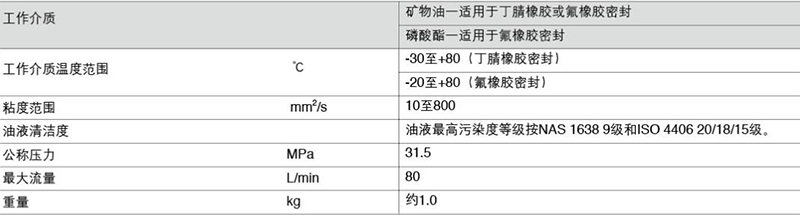

技术参数 Technical parameter

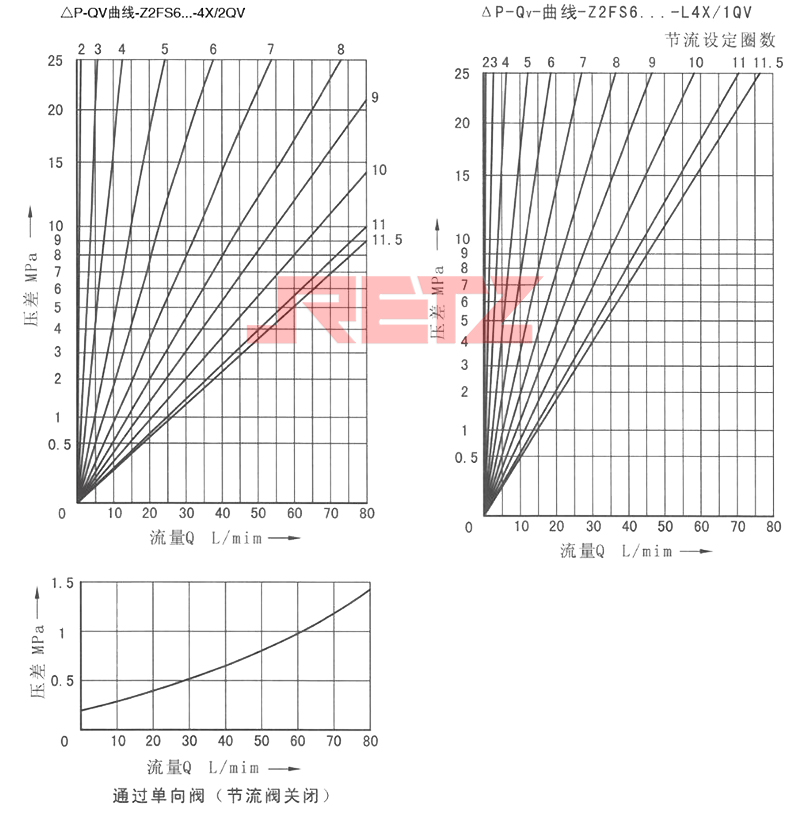

性能曲线（在使用HLP46，t=40℃±5℃时测得）

Z2FS....30系列叠加式双单向节流阀 技术参数 Technical paramete

通径(NG)10、16、22, 压力至35MPa ,流量至360L/min  Diameter (NG) 10、16、22, pressure to 35MPa, flow to 360L/min

特性 characteristic

Z2FS型叠加式单向节流阀通过改变节流口断面大小来调节油路流量.实现流量控制。在反向时.油流直接通过单向阀回油。对于10通径选用不同安装位置可实现进口节流或出口节流。对于16.22通径可选用不同的型号实现进可同时连接工作油腔的两口节流或出口节流. 可同时连接工作油腔的两条油路 Z2FS stacked one-way throttle valve regulates the flow of the oil passage by changing the size of the throttle section to achieve flow control. In the reverse direction, the oil flow returns directly through the check valve. For 10 diameters, different installation positions can be selected to achieve inlet throttling or outlet throttling. For the 16.22 drift diameter, different models can be selected to realize the two port throttling or outlet throttling that can be connected to the working oil chamber at the same time Two oil circuits of the working oil chamber can be connected at the same time

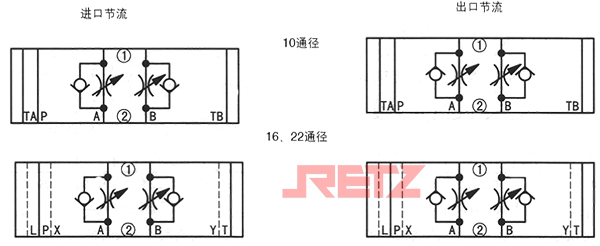

图形符号（①=阀侧；②=底板侧）

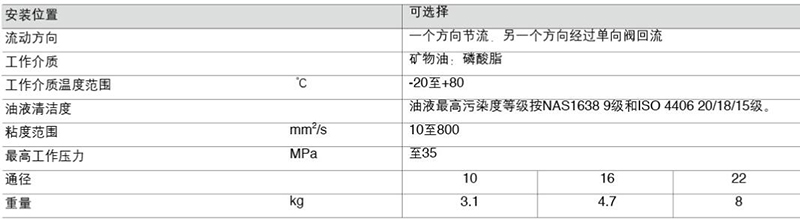

技术参数 Technical parameter

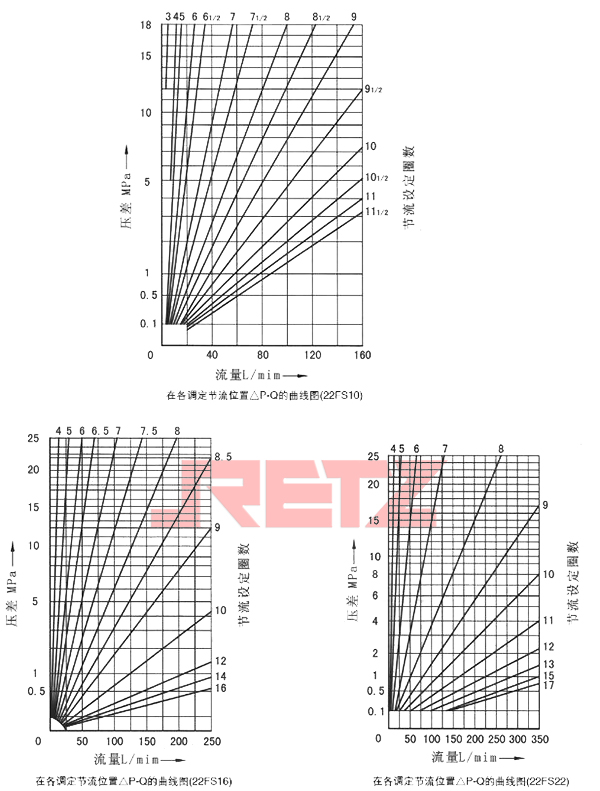

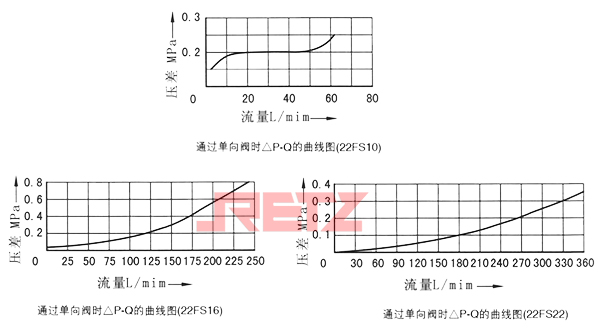

性能曲线（在使用HLP46，t=40℃±5℃时测得）

性能曲线（在使用HLP46，t=40℃±5℃时测得）
