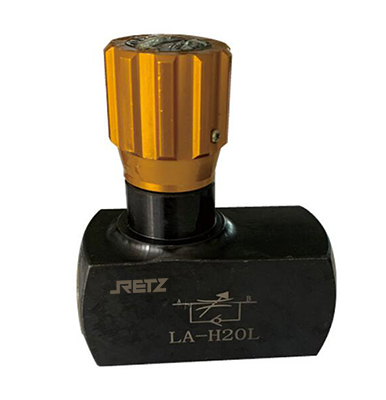

(L,LA)节流阀,单向节流阀
简要描述：RETZ (L,LA)进口节流阀,单向节流阀用于双向调节液压油流量，也可以用来实现液流截止功能
品牌：RETZ- 工况条件：单向/节流
- 温度/压力：P-T: 315bar@60℃
- 更新时间：2022/12/14
L/LA节流阀,单向节流阀 技术参数 Technical paramete
通径(NG)6至40, 压力至31.5MPa Diameter (NG) 6 to 40, pressure to 31.5MPa
(L,LA)进口节流阀,单向节流阀 特性 characteristic
L型节流截止阀用于双向调节液压油流量，也可以用来实现液流截止功能 retz品牌L-type throttle stop valve is used for two-way adjustment of hydraulic oil flow, and also can be used to realize the function of liquid flow cut-off
LA型单向节流流截止阀，用于在一个方向调节精确的油液流量，并允许油液反向自由回流 LA type one-way throttling stop valve is used to regulate the precise oil flow in one direction and allow the oil to return freely in reverse direction
技术参数 Technical parameter
通径 | 6 | 8 | 10 | 12 | 16 | 20 | 30 | 35 | 40 |
流量 mn | 6 | 15 | 30 | 50 | 140 | 200 | 300 |
400 | 600 |
最高工作压力Mpa | 31.5 | ||||||||
单向阀开启压力 Mpa | 0.05 | ||||||||
液压介质 | 矿物励液压油，碘职脆凌压油 | ||||||||
介助温度范围 ℃ | 20-80 | ||||||||
介质粘要范围 (mm'rS) | 28～100 | ||||||||

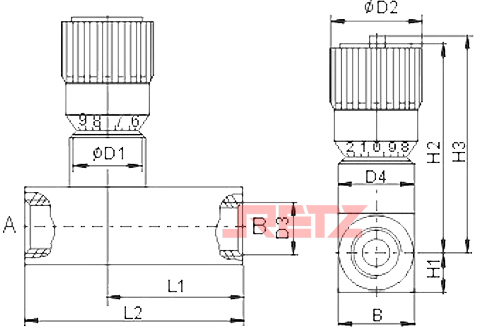

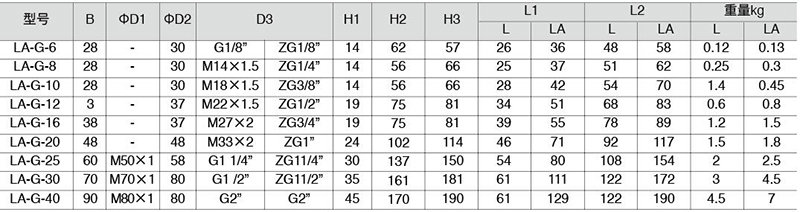

外形安装尺寸图 Outline installation dimension drawing
