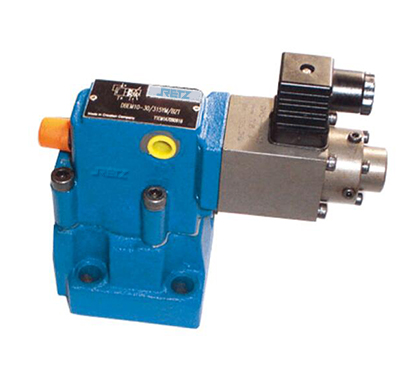

(DBE，DBEM)比例溢流阀

WE6电磁换向阀 技术参数 Technical paramete

通径(NG)10.25.32, 压力至31.5MPa ,流量至600L/min  Diameter (NG) 10.25.32, pressure to 31.5MPa, flow to 600L/min

(DBE，DBEM)进口比例溢流阀 特性 characteristic

底板安装 Base plate installation

装入油路块 Install the oil circuit block

最高压力保护结构(供选) Maximum pressure protection structure (optional)

阀和比例放大器配套供应 Valve and proportional amplifier supplied together

(DBE，DBEM)进口比例溢流阀 功能说明 Function description

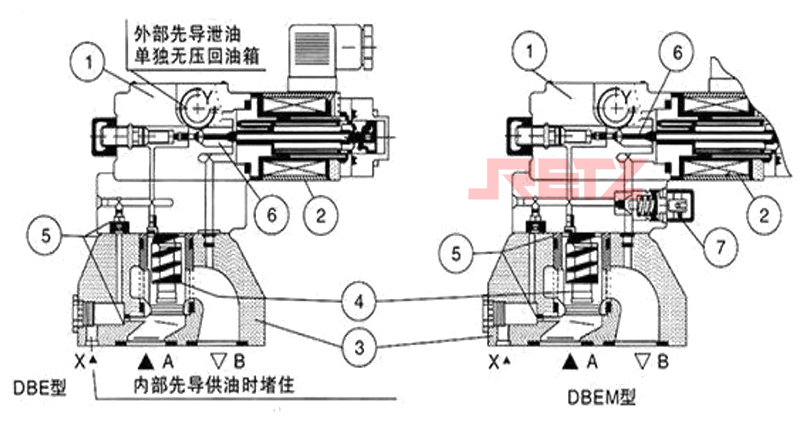

DBE / DBEM型阀是锥阀式结构的先导式比例溢流阀，根据输入信号变化无级调节系统的压力。该阀主要由带电磁铁(2)的先导阀①和带主阀芯(4)的主阀(3)组成 The DBE/DBEM type valve is a pilot operated proportional relief valve with a cone valve structure, which regulates the pressure of the system steplessly according to the input signal changes. The valve is mainly composed of a pilot valve ① with a magnet (2) and a main valve (3) with a main valve element (4）

DBE型:系统压力作用在主阀芯(4)的同时，经过阻尼(5)作用在主阀芯上端和先导阀阀芯(6)上。如果系统压力升高而超过比例电磁铁调定压力值，则先导阀锥阀(6)开启，控制油回油箱，在主阀芯(4)上产生压降，使主阀芯开启，压力油从A腔到8腔通。通过改变导阀阀座孔径可获不同压力等级 retz品牌 DBE type: the system pressure acts on the upper end of the main valve core and the pilot valve core (6) through damping (5) while acting on the main valve core (4). If the system pressure rises and exceeds the set pressure value of the proportional electromagnet, the pilot valve cone valve (6) opens to control the oil return to the oil tank, which creates a pressure drop on the main valve core (4) to open the main valve core and open the pressure oil from chamber A to chamber 8. Different pressure grades can be obtained by changing the diameter of pilot valve seat.

DBEM型:此类阀与DBE型相同，只是有一个最高压力保护装置，使系统免受意外高压引起的损坏 DBEM type: This type of valve is the same as DBE type, but has a maximum pressure protection device to protect the system from damage caused by accidental high pressure

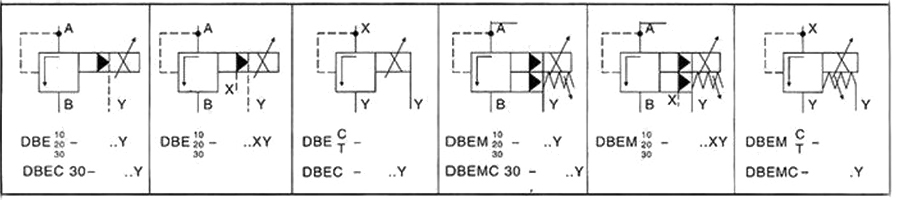

图形符号 Graphical symbols

特性曲线（试验条件 v=36×10-6 m²/S t=50℃) Characteristic curve (test condition v=36 × 10-6 m ²/ S t=50℃)

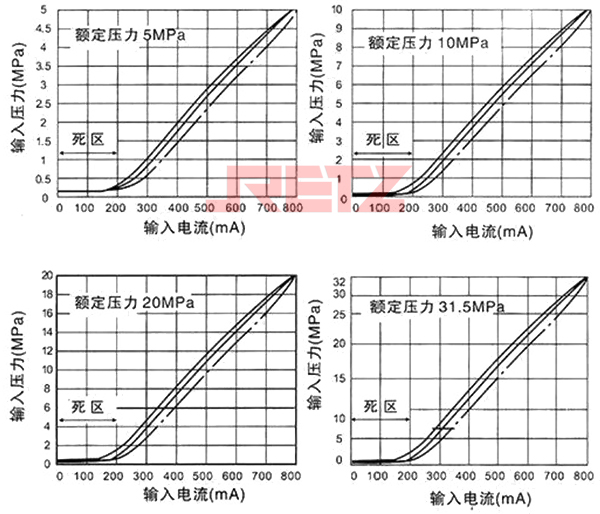

DBE10、20和30/DBET型输入压力/电流要求曲线 DBE10, 20 and 30/DBET input pressure/current demand curve

DBE10、20和30型在27L/min的流量下测得 DBE10, 20 and 30 are measured at a flow rate of 27L/min

DBET型在0.8L/min 的流量下测得 DBET is measured at a flow rate of 0.8L/min

迟滞：

有颤振 —

无颤振 --

注：为了得到最低设定压力，先导电流不得超过0.1A Note: In order to obtain the minimum set pressure, the pilot current shall not exceed 0.1A
