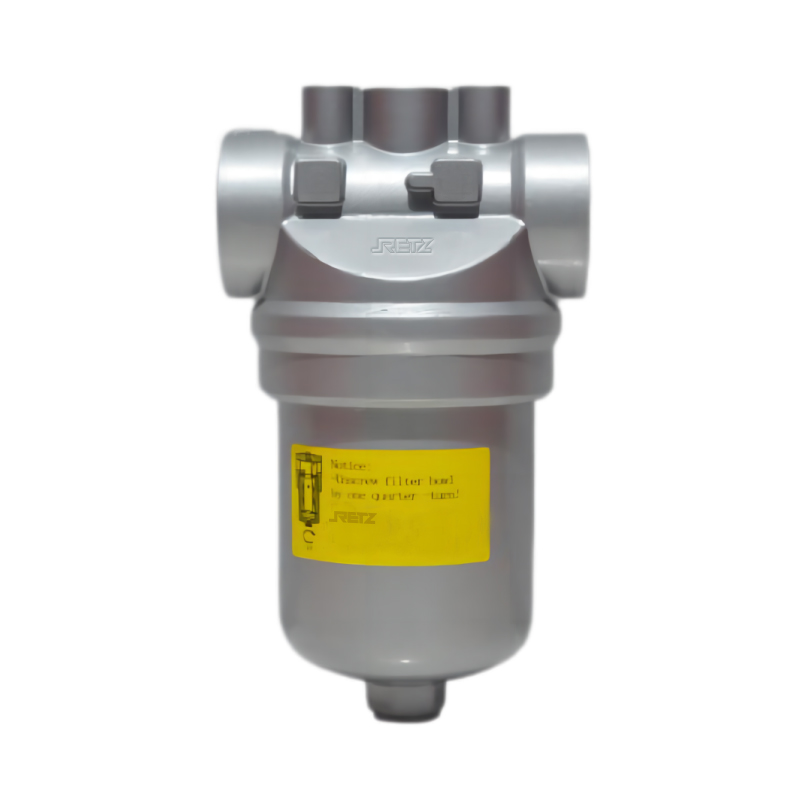

(LPF)低压管路过滤器

(LPF)进口低压管路过滤器   性能特点 Performance characteristics

---流量至120 l/min Flow to 280 l/min

---压力等级至25和50bar Pressure rating up to 25 and 50bar

---材料：铝/碳钢  Material: aluminum/carbon steel

---温度范围：-30℃...+100 Temperature range: -30℃...+100

---旁通阀开启压力：△Pa=6bar+0.5bar （可选择3 bar）  Opening pressure of bypass valve: △ Pa=6bar+0.5bar (3 bar can be selected)

---污染发讯器的设定压力：△Pa=5bar-10% （可选择3 bar）Set pressure of pollution transmitter: △ Pa=5bar-10% (3 bar is optional)

---安装：管路过滤器 Line filter

---流向：入口--在侧面；出口--同一高度对立侧 Flow direction: inlet -- on the side; Exit - opposite side at the same height

滤芯 Filter element

玻璃纤维BN3HC:25bar

BH3HC:210bar

不锈钢金属网W/HC:30bar

过滤精度μm: BN3HC,BH3HC-3,5,10,20 ;W/HC-25,50,100,200

介质相容性：适用于矿物油、润滑油、抗燃油、合成和可迅速生物分解的油 Medium compatibility: applicable to mineral oil, lubricating oil, fire-resistant oil, synthetic and rapidly biodegradable oil

规格 Specifications

污染发讯器形式  Form of pollution transmitter

A  无污染发讯器，带螺塞 Pollution free transmitter with screw plug

B  带目视污染指示器 With visual pollution indicator

C  带电气污染发讯器 With electric pollution transmitter

D  带目视/电气污染发讯器 With visual/electrical pollution transmitter

技术参数 Technical parameter

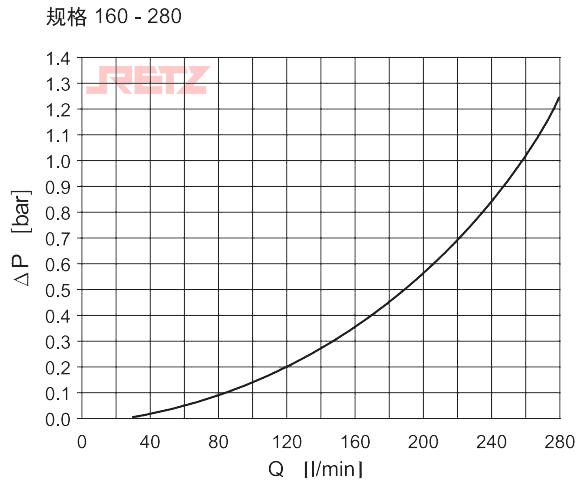

壳体压降流量特性曲线，按ISO3968 Pressure drop flow characteristic curve of shell, according to ISO3968

壳体特性曲线适用于密度为0.86kg/dm3,且运动粘度为30mm2/s的矿物油。这种情况下，压降与密度成比例变化 The shell characteristic curve is applicable to the density of 0.86kg/dm 3 And the kinematic viscosity is 30mm 2/ S mineral oil. In this case, the pressure drop varies in proportion to the density.

滤芯压降流量特性曲线 Filter element pressure drop flow characteristic curve

滤芯特性曲线适用于运动粘度为30mm2/s的矿物油 Characteristic curve of filter element is applicable to kinematic viscosity of 30mm 2/ Mineral oil of s

压降与粘度成比例变化 Pressure drop changes proportionally to viscosity
