带安装孔高压球阀

功能原理 Functional principle

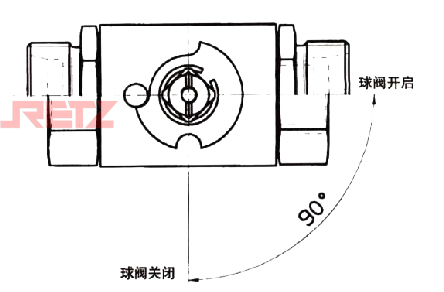

(KHB)进口带安装孔高压球阀旋转控制芯轴使球体从开启位置切换到关闭位置，系统压力将球体推向密封碗的无压侧并无泄漏地切断液流 retz品牌  (KHB) High pressure ball valve with mounting hole at the inlet rotates the control spindle to switch the ball from the open position to the closed position, and the system pressure pushes the ball to the non pressure side of the sealing bowl to cut off the liquid flow without leakage

(KHB3K)进口带安装孔高压三通球阀旋转控制芯轴使液流按球口形状换向，同时无泄漏地截断对立的一侧。系统压力把球体推向密封的无压侧。球体无泄漏地截断从接口1到接口2或3的液流。当流向从接口2或3到接口1时，会有少许泄漏，但取决于压力。转向过程中三个接口互相连接。retz品牌 (KHB3K) The imported two position three-way high pressure ball valve rotates the control spindle to make the liquid flow reverse according to the shape of the ball mouth, while cutting off the opposite side without leakage. The system pressure pushes the ball towards the non pressure side of the seal. The ball can cut off the liquid flow from interface 1 to interface 2 or 3 without leakage. When the flow direction is from interface 2 or 3 to interface 1, there will be a little leakage, but it depends on the pressure. The three interfaces are connected to each other during steering

外形尺寸 Overall dimensions

通孔连接尺寸/Full Holes Dimensions

螺纹孔连接尺寸/Thread Holes Dimensions

侧面双边螺纹安装孔 Side bilateral threaded mounting hole

注释：球阀不是设计为流量控制阀，因此要么全开要么全闭以免损坏密封 Note: The ball valve is not designed as a flow control valve, so it is either fully open or fully closed to avoid damaging the seal

为确保工作正确，必须满足要求的压力和温度参数 To ensure correct operation, the required pressure and temperature parameters must be met
