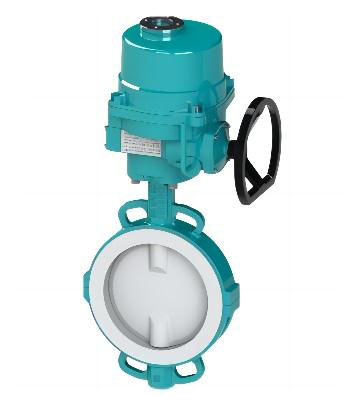

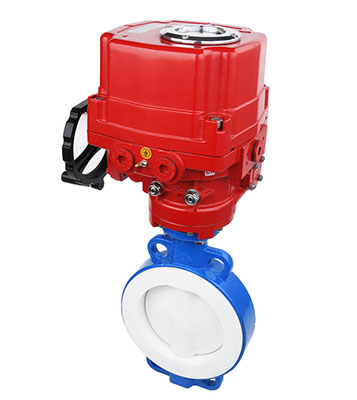

电动衬氟蝶阀(耐酸碱，耐腐蚀）

功能介绍 Function introduction

进口电动衬氟蝶阀(耐酸碱，耐腐蚀）有对夹式、凸耳式、法兰式三种型号，坚固的设计，阀体由铸钢WCB(1.0619)或采用不锈钢CF8M(1.4408)制成，可包袱聚四氟乙烯(PTFE)、超高分子量聚乙烯(PFA)，介质与阀体隔离，从而达到耐腐蚀效果 retz The imported electric fluorine-lined butterfly valve (acid and alkali resistant, corrosion resistant) has three types: wafer type, lug type, and flange type. The valve body is made of cast steel WCB (1.0619) or stainless steel CF8M (1.4408). It can be packed with polytetrafluoroethylene (PTFE) and ultra-high molecular weight polyethylene (PFA). The medium is isolated from the valve body to achieve corrosion resistance

设计特色 Design features

1、重型设计，其整体结构紧凑，结实，耐用，免维护 Heavy-duty design, its overall structure is compact, strong, durable and maintenance-free

2、低扭矩 操作轻便可以使用更小执行机构 Low-torque operation is light, and smaller actuator can be used

3、通用型设计，可直接安装在ANSI150LB/PN10/PN16/JIS10K的法兰 Universal design, can be directly installed on ANSI150LB/PN10/PN16/JIS10K flange

4、ISO 5211顶法兰标准，可以直接更换气动执行机构而无需加支架 ISO 5211 top flange standard, pneumatic actuator can be directly replaced without bracket　

5、高阀颈设计，适用于高温管线保温材料的包袱 High valve neck design, suitable for the burden of high-temperature pipeline insulation materials

6、分体式设计，高性能轴密封的典型结构 Split design, typical structure of high-performance shaft seal

7、无缝型设计，防止外部污染物进入阀腔 Seamless design prevents external pollutants from entering the valve chamber

基本参数 Basic parameters

主要零件材料 Material of main parts

主要技术参数及性能 Main technical parameters and performance

执行器技术参数 Technical parameters of actuator
