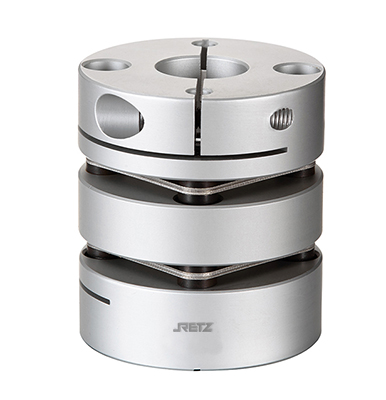

夹紧式双膜片联轴器(铝合金)

简要描述:RETZ进口夹紧式双膜片联轴器(铝合金)一体化结构,整体采用高强度高强度铝合金,膜片采用304不锈钢,抗疲劳性特好,专为编码器、微型电机设计

  • 品牌:RETZ
  • 工况条件:联接机械
  • 温度/压力:1-80N.m.
  • 更新时间:2023/03/05
产品详情 在线咨询

进口夹紧式双膜片联轴器(铝合金)产品用途 Product use进口夹紧式单膜片联轴器(铝合金)2.jpg

1.一体化结构,整体采用高强度高强度铝合金,膜片采用304不锈钢,抗疲劳性特好 Integrated structure, high strength aluminum alloy, 304 stainless steel diaphragm, excellent fatigue resistance

2.扭矩刚性高,能准确控制周的旋转,可进行高精度控制 High torque rigidity, can accurately control the rotation of the circle, and can carry out high-precision control

2.通常用于伺服电机,步进电机 Commonly used for servo motor and stepper motor


结构特点 Structural features

1.弹性作用补偿径向、角向、轴向偏差 Elastic action compensates radial, angular and axial deviation

2.无间隙的轴和轴套连接,适用于正反转 The shaft is connected with the shaft sleeve without clearance, which is suitable for forward and reverse rotation

3.专为编码器、微型电机设计 Designed for encoder and micro motor

4.定位螺丝紧固方式 Fastening method of set screw


基本参数 Basic parameters and dimensions

参数

型号

额定
扭矩
(N ·m)*

容许
偏心
(mm)*

 容许
偏角
(°)

容许轴
向偏差
(mm)*

最高
转速
rpm

静态扭
转刚度
(N ·M/rad)

惯性矩
(kg ·M²)

轴套
材质

弹片
材质

表面
处理

重量
g

DL-19x27

1

0.12

1.5

±0.18

10000

700

9.1x10¯7

高强度铝合金

进口SUS304

阳极氧化处理

14.6

DL-26x35

1.5

0.15

1.5

±0.3

10000

1850

3.0x10¯6

37

DL-34x45

3

0.17

1.5

±0.36

10000

4050

1.1x10¯6

77

DL-39x50

6

0.22

1.5

±0.45

10000

9000

3.0x10¯⁵

118

DL-44x50

9

0.22

1.5

±0.54

10000

10000

3.8x10¯5

144

DL-56x64

25

0.27

1.5

±0.72

10000

25000

1.6x10¯⁴

318

DL-68x75

60

0.31

1.5

±0.8

9000

35000

2.0x10 ¯4

492

DL-82x98

80

0.55

1.5

±0.8

8000

70000

2.5x10¯4

1013

注:必须在容许值的范围内使用该联轴器 Note: The coupling must be used within the allowable range

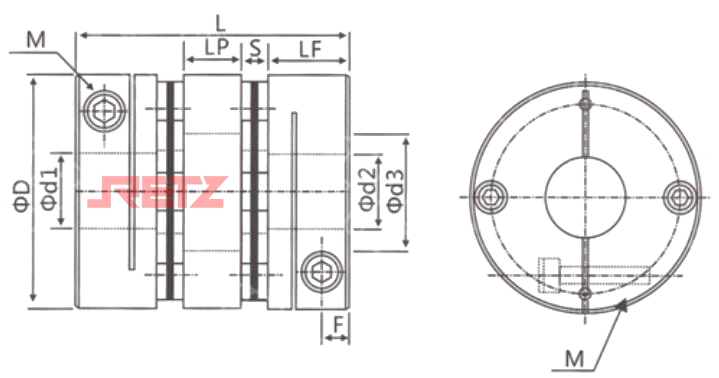

外形尺寸 Overall dimension


      参数

型号

常用d1,d2,轴径

φD

L

LF

LP

d3

S

F

M

紧固螺
丝扭矩
(N ·m)

DL-19x27

3,4,5,6,6.35,7,8

 19

27

9

5

9

2

3.3

M2.5

1

DL-26x35

5,6,6.35,7,8,9,9.525,10,11

 26

35

11.65

6.6

12

2.7

3.9

M3

1.5

DL-34×45

6,6.35,8,9,9.525,10,11,12,12.7,14,15

 34

45

14.25

9.5

16

3.5

4.85

M4

2.5

DL-39x50

8,9,9.525,10,11,12,12.7,14,15,16,18,19

 39

50

15

11.5

19

4.5

5

M4

2.5

DL-44x50

8,9,9.525,10,11,12,12.7,14,15,16,18,19,20,22

44

50

14.9

11.1

22

4.7

5

M4

2.5

DL-56x64

12,14,15,16,18,19,20,22,24,25

56

64

19.75

13.5

32.5

5.5

6.4

M5

5

DL-68x75

15,16,19,20,22,24,25,28,30,35

 68

75

23.35

15.7

38.3

6.3

7.7

M6

8

DL-82x98

22,24,28,30,35,38,40

 82

98

30

22

45.5

8

9.7

M8

20
