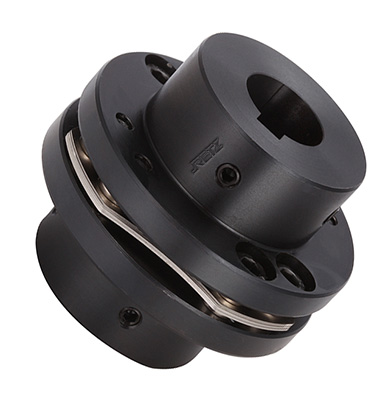

八螺丝键槽式高刚性双台阶单膜片联轴器(45#)

进口八螺丝键槽式高刚性双台阶单膜片联轴器(45#) 产品用途 Product use

1、膜片型联轴器，拆装方便 Diaphragm coupling, convenient for disassembly and assembly

2、膜片补偿径向，角向和轴向的偏差 Diaphragm compensates radial, angular and axial deviations

3、采用多边弧形8个螺丝膜片，扭矩大 Adopt 8 screw diaphragms with polygonal arc, high torque

4、防震动，使用安全可靠，寿命更长 Anti-vibration, safe and reliable use, longer service life

5、高性能，高灵敏度 High performance, high sensitivity

广泛用于各种机械装置的轴系传动，如水泵（尤其是大功率、化工泵）、风机、压缩机、液压机械、石油机械、印刷机械、纺织机械、化工机械、矿山机械、冶金机械、航空（直升飞机）、舰艇高速动力传动系统、汽轮机、活塞式动力机械传动系统、履带式车辆，以及发电机组高速、大功率机械传动系统，经动平衡后应用于高速传动轴系已比较普遍

It is widely used for shafting transmission of various mechanical devices, such as water pumps (especially high-power and chemical pumps), fans, compressors, hydraulic machinery, petroleum machinery, printing machinery, textile machinery, chemical machinery, mining machinery, metallurgical machinery, aviation (helicopter), high-speed power transmission system of naval ships, steam turbines, piston-type power mechanical transmission system, tracked vehicles, and high-speed generator sets The high-power mechanical transmission system has been widely used in high-speed transmission shafting after dynamic balancing

结构特点 Structural features

1.主体采用45#钢材料 The main body is made of 45 # steel

2.表面采用发黑处理、带键槽设计 The surface is blackened and designed with keyway

3.膜片型联轴器，拆装方便 Diaphragm coupling, convenient for disassembly and assembly

4.采用多边弧型8个螺丝膜片，精确度高，扭力大 Adopt 8 screw diaphragms of multilateral arc type, with high accuracy and large torque

5.防震动，使用安全可靠、寿命更长 Anti-vibration, safe and reliable use, longer service life

6.高性能、高灵敏度 High performance and sensitivity

7.无间隙，顺时针与逆时针回转特性完全相同 No clearance, clockwise and counterclockwise rotation characteristics are identical

8.膜片补偿径向，角向和轴向偏差 Diaphragm compensates radial, angular and axial deviations

9.适合大力矩传递 Suitable for large torque transmission

基本参数 Basic parameters and dimensions

注：必须在容许值的范围内使用该联轴器 Note: The coupling must be used within the allowable range

外形尺寸 Overall dimension
