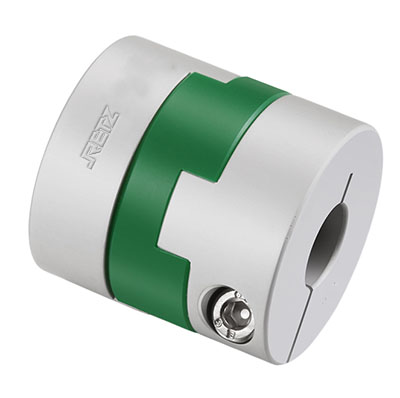

夹紧式短型十字滑块联轴器(铝合金)
简要描述：RETZ进口夹紧式短型十字滑块联轴器(铝合金) 主体轴套采用铝合金,体积轻巧 .中间十字滑块胶体材料采用PA66具有良好的耐磨耐腐蚀性和电气绝缘性
品牌：RETZ- 工况条件：联接机械
- 温度/压力：0.5-4.5N.m.
- 更新时间：2023/03/21
进口夹紧式短型十字滑块联轴器(铝合金) 产品用途 Product use
1.主体轴套采用铝合金,体积轻巧，安装方便、免维护 The main shaft sleeve is made of aluminum alloy, with lightweight volume, convenient installation, and maintenance free
2.胶体材料采用PA66具有良好可抗油污、耐磨耐腐蚀性和电气绝缘性 Colloidal material made of PA66 has good oil resistance, wear resistance, corrosion resistance, and electrical insulation
3.适应于伺服电机,步进电机 Suitable for servo motors, stepper motors
结构特点 Structural features
结构简单的高扭矩,高刚性,高灵敏度联轴器 、容许大的径向和轴向偏差 High torque, high rigidity, high sensitivity couplings with simple structure, allowing for large radial and axial deviations
滑动设计更有效的补偿径向和角向偏差 Sliding design more effectively compensates for radial and angular misalignment
可拆式设计，便于安装 Removable design for easy installation
夹紧螺丝紧固方式 Fastening method of clamping screw
基本参数 Basic parameters and dimensions
参数 | 额定 | 容许 | 容许 | 容许轴 | 容许 | 静态扭 | 惯性矩 | 轴套 | 胶块 | 表面 | 重量 |
DHCS-12×14.9 | 0.5 | 0.6 | 2 | ±0.2 | 12000 | 9 | 7.1×10¯8 | 高强度铝合金 | PA66 | 阳极氧化处理 | 3 |
DHCS-16×21 | 0.7 | 1 | 2 | ±0.2 | 9000 | 30 | 3.0×10¯⁷ | 8 | |||
DHCS-20×22.1 | 1.2 | 1.3 | 2 | ±0.2 | 6500 | 47 | 7.4×10¯⁷ | 13 | |||
DHCS-25×27.2 | 2 | 1.5 | 2 | ±0.2 | 5500 | 85 | 2.2×10¯⁶ | 24 | |||
DHCS-32×33.3 | 4.5 | 2 | 2 | ±0.2 | 4500 | 190 | 7.3×10¯⁶ | 48 |
注：以上技术参数由至大孔径测得 Note: The above technical parameters are measured from to large aperture

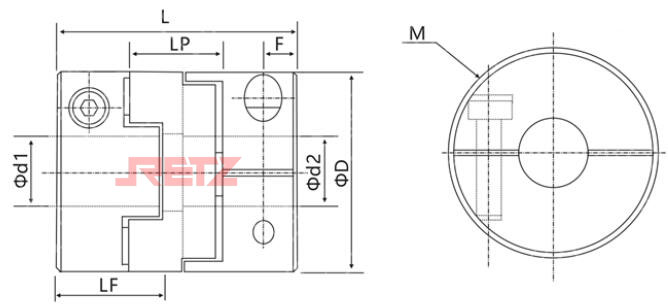

外形尺寸 Overall dimension
参数 | 常用d1,d2,轴径 | φD | L | LF | LP | F | M | 紧固螺 |
DHCS-12×14.9 | 3,4,5 | 12 | 14.9 | 7.3 | 4.9 | 2.5 | M2 | 0.4 |
DHCS-16×21 | 4,5,6,6.35 | 16 | 21 | 10.4 | 7 | 3 | M2.5 | 0.8 |
DHCS-20×22.1 | 5,6,6.35,7,8 | 20 | 22.1 | 10.9 | 8.1 | 3 | M2.5 | 0.8 |
DHCS-25×27.2 | 5,6,6.35,8,9,9.525,10,11,12 | 25 | 27.2 | 13.5 | 11.2 | 4 | M3 | 1.2 |
DHCS-32×33.3 | 5,6,8,9,9.525,10,11,12,12.7,14,15,16 | 32 | 33.3 | 16.5 | 13.3 | 5 | M4 | 2.5 |
