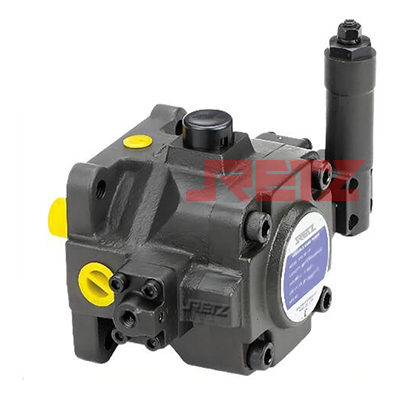

(VP3、VP4)变量叶片泵

(VP3、VP4)进口变量叶片泵 性能 performance

特殊的限压式变量机构，可实现低压大流量，高压小流量，使功率最合理的运用，有效降低电机消耗功率，节约能源retz品牌  The special pressure limiting variable mechanism can realize low-voltage large flow and high-voltage small flow, so that the most reasonable use of power can effectively reduce the power consumption of the motor and save energy

内置压力调整阀，系统无需加装调压阀  Built in pressure regulating valve, the system does not need to install pressure regulating valve

最高使用压力可达140kgf/cm2 The maximum operating pressure can reach 140kgf/cm2

可连接直接式电机，安装简便 It can be connected to a direct motor, which is easy to install

精密加工，精确配合间隙，提升容积效率 Precision machining, precise fit clearance, improve volumetric efficiency

型号说明 Model description

XVP卸载型变量叶片泵 参数表  Parameter table

注：配管尺寸  进口：2/4’，1/2’，1/4’Note: pipe size inlet: 2/4 ', 1/2', 1/4 '

使用说明 Instructions

1、马达轴心与帮浦轴心使用连轴器装配时，平行度误差需在0.05mm以内，角度误差在1度以内。建议使用直接式油泵专用电机  When the motor axis and pump axis are assembled with a coupling, the parallelism error should be within 0.05mm and the angle error should be within 1 degree. Direct oil pump special motor is recommended

2、推荐液压油粘度工作压力低于70kgf/cm2，以30~50cst（ISOVG32）为宜 It is recommended that the working pressure of hydraulic oil viscosity is lower than 70kgf/cm2, and 30~50cst (isovg32) is appropriate

3、液压油连续工作温度应保持在15~60℃，低于15℃请使用加热器，超过60℃请使用冷却器  The continuous working temperature of hydraulic oil should be kept at 15~60 ℃, and if it is lower than 15 ℃, please use heater, if it is higher than 60 ℃, please use cooler

4、新机开始运转时，应在无压力的状态下反复启动电机马达，以排除泵内和吸油中的空气，为确保系统内的空气排除，可在无负载的状态下，连续运转10分钟  When the new machine starts to operate, the motor should be started repeatedly without pressure to remove the air in the pump and the oil suction. In order to ensure that the air in the system is removed, it can operate continuously for 10 minutes under no-load condition

5、泵浦吸油口请勿高于油面1米  The pump suction port should not be 1 meter higher than the oil level

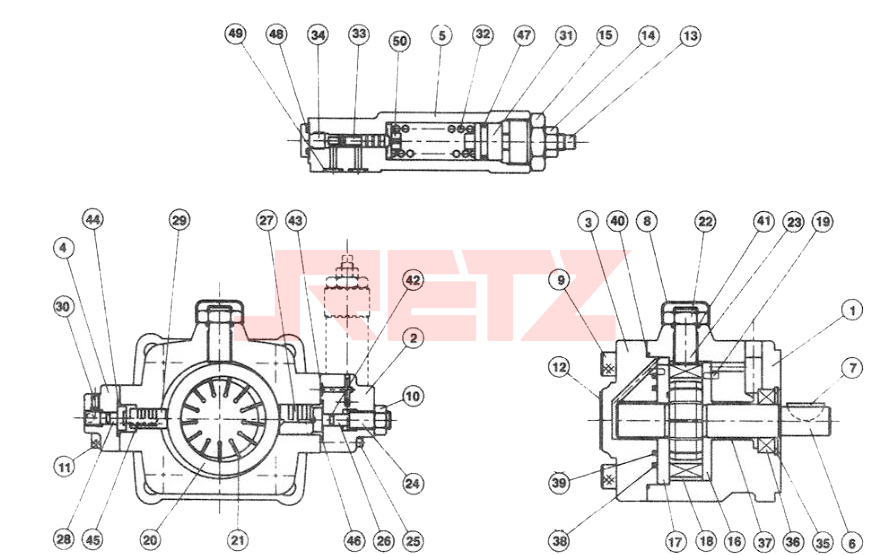

XVP卸载型变量叶片泵 材质表 Material table
