微弯型质量流量计

简要描述:RETZ进口微弯型质量流量计采用双V 型流管设计,降低外界震动干扰影响,减少了安装体积

  • 品牌:RETZ
  • 工况条件:流体测控
  • 温度/压力:P-T: 16bar@350℃
  • 更新时间:2023/04/01
产品详情 在线咨询

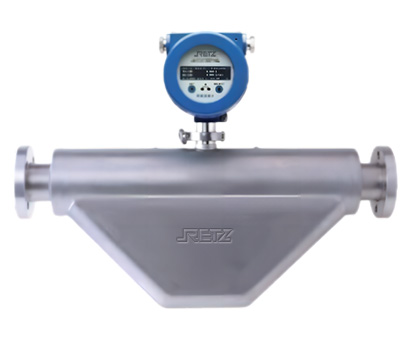

进口微弯型质量流量计 产品用途 Product use进口微弯型质量流量计2.jpg

采用双V 型流管设计,降低外界震动干扰影响,减少了安装体积 Double V-shaped flow tube design is adopted to reduce the impact of external vibration interference and reduce the installation volume

提供质量流量、体积流量、密度、温度测量参数,测量精度不受到温度、压力、密度、粘度影响Provide mass flow, volume flow, density, and temperature measurement parameters, and the measurement accuracy is not affected by temperature, pressure, density, and viscosity

V型结构设计压力损失小,接液材质可更换耐腐蚀金属哈氏合金,用于酸碱等腐蚀性介质测量 The V-shaped structure is designed with low pressure loss, and the liquid receiving material can be replaced with corrosion-resistant metal Hastelloy, which is used for measuring corrosive media such as acid and alkali

安装简单,没有前后直管段要求,测量流体变化的时候无需重新标定 Simple installation, no requirements for front and rear straight pipe sections, and no need to recalibrate when measuring fluid changes


技术参数 Technical parameter

流量测量精度

 0.1%0.15%0.2%

被测介质温度

-200℃-350℃

重复性

0.05%-0.1%

适用环境温度

-30~70℃

密度测量范围

 0<p<5g/cm3

测量管材质

316L,哈氏合金

密度测量精度

±0.002g/cm3

工作压力

常规4MPa,高压可特殊订制

温度测量范围

  -200-350

防爆型等级

Exd[ib]IICT1~T6Gb

温度测量精度

±1℃

防护等级

IP67

输出信号

4-20mA电流信号、0-10KHZ频率信号、脉冲当量信号、RS485通讯信号、HART协议

参考量程表 Reference Range Table



公称通径

推荐流量范围(kg/h)

最大流量范围(kg/h)

RV-MF15

15

0-3000

0-4800

RV-MF25

25

0-9600

0-12000

RV-MF50

50

0-48000

0-60000

科里奥利(科氏力)质量流量计原理 Coriolis mass flowmeter principle

科里奥利质量流量计(Coriolis Mass Flowmeter)简称科氏力质量流量计,一个弯管道的两端被固定,在两个固定点的中间位置质量流量计原理图.jpg给管道施加振动力(按管道的谐振频率),使其以固定点为轴以其自然频率u振动,当管道内没有流体流动时,管道只受外加震动力作用,管道两个半段振动方向相同,没有相位差。当有流体流动时受管道内流动的介质质点科氏力Fc的影响,管道的两个半段按相反的方向发生扭动,产生相位差,这一相位差同质量流量成正比,这就是科氏质量流量计的工作原理.

Coriolis Mass Flowmeter is referred to as Coriolis force mass flowmeter. Both ends of a curved pipe are fixed, and vibration force (based on the resonance frequency of the pipe) is applied to the pipe at the middle of the two fixed points, making it vibrate at its natural frequency u with the fixed point as the axis. When there is no fluid flow in the pipe, the pipe is only subjected to external vibration force, and the vibration directions of the two halves of the pipe are the same, without phase difference. When there is fluid flowing, influenced by the Coriolis force Fc of the medium particles flowing in the pipe, the two halves of the pipe twist in opposite directions, resulting in a phase difference that is proportional to the mass flow rate. This is the working principle of a Coriolis mass flowmeter


安装外形尺寸 Installation overall dimensions

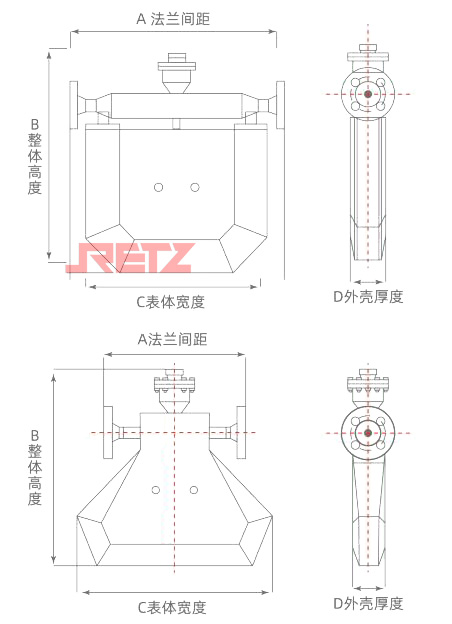

小口径质量流量计(DN15mm及以下)安装尺寸表(分体式)

Installation Dimension Table for Small Diameter Mass Flowmeter (DN15mm and Below) (Split Type)


规格

A(法兰间距)mm

B(整体高度)mm

C(表体宽度)mm

D(外壳厚度)mm

003

222

273

255

50

006

250

343

340

54

010

410

432

350

75

015

416

432

350

75

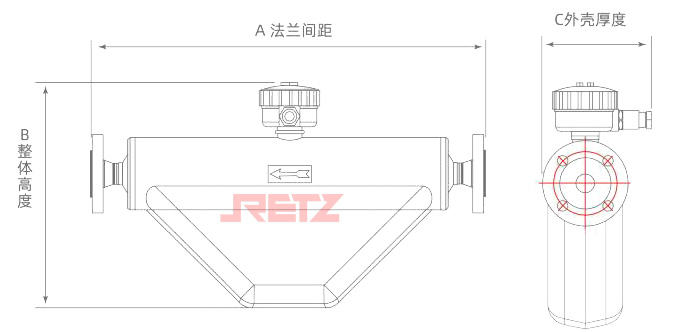

微弯型质量流量计安装尺寸表(分体式)




A(法兰间距)mm

B(整体高度)mm

C(外壳厚度)mm

015

446

315

136

025

580

330

146

050

800

449

183
