PTFE防腐电磁阀(塑料王)

简要描述:RETZ进口PTFE防腐电磁阀采用一次性开阀形式,隔离式密封结构,阀体为聚四氟乙稀(塑料王)制作,因此可用强酸、强碱性流体和超净介质

  • 品牌:RETZ
  • 工况条件:防腐介质控制
  • 温度/压力:P-T: 0-6bar@120℃
  • 更新时间:2023/04/10
产品详情 在线咨询

产品描述 Product Description

进口PTFE防腐电磁阀常闭型,采用一次性开阀形式,隔离式密封结构,阀体为聚四氟乙稀(塑料王)制作,膜片材料氟橡胶四氟,介质和其它配件隔离,因此可用强酸、强碱性流体和超净介质等进口PTFE防腐电磁阀2.jpg

The imported PTFE anti-corrosion electromagnetic valve is of the normally closed type and adopts a one-time open valve form with an isolated sealing structure. The valve body is made of polytetrafluoroethylene (plastic king), and the diaphragm material is fluororubber tetrafluoroethylene. The medium is isolated from other accessories, so it can be used for strong acid, strong alkaline fluid, and ultra clean medium


技术参数

阀体材质:PTFE聚四氟乙烯 Valve body material: PTFE polytetrafluoroethylene

阀芯材质:PTFE聚四氟乙烯 Valve core material: PTFE polytetrafluoroethylene

活塞、阀杆:PTFE聚四氟乙烯 Piston and valve stem: PTFE polytetrafluoroethylene

密封材质:KFM氟橡胶 Sealing material: KFM fluororubber

流体温度Fluid temperature:-10~80℃

环境温度ambient temperature:-10~50℃

工作压力working pressure:0-0.3~6bar

工作型式Working type:直动式、先导隔膜式(常闭型)

连接方式:DN15~25G螺纹、NPT螺纹

                DN15~50:法兰

工作电压:DN15~25:AC220V功率:启动154VA,保持8VA;DC24V功率:启动50W,保持8W

                DN32~50:AC220V功率:启动170VA,保持9VA;DC24V功率:启动75W,保持8W,防护等级IP65,绝缘等级H级

流量通径
(mm)

规格

Cv

工作压力(bar)

10

3/8"

3.5

020.36

15

1/2"

 4.8

020.36

20

3/4"

 7.6

020.36

25

1"

 11

020.3~6

32

114"

 24

0.3~6

40

1/2"

 29

0.3~6

50

2"

 45

0.3~6

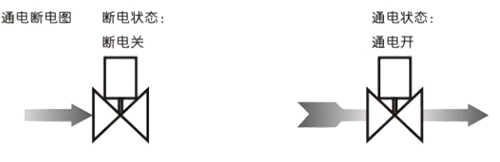

常闭电磁阀,断电关闭,通电打开 Two position two normally closed solenoid valve, power off to close, power on to open
