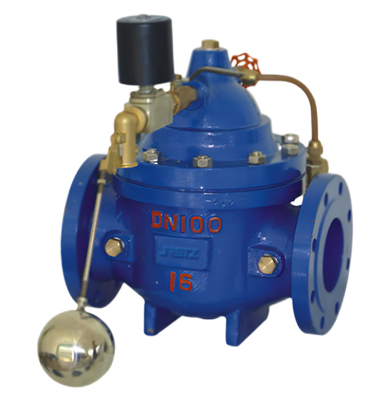

电磁电动遥控浮球阀

产品描述 Product Description

进口电磁遥控浮球阀加装了常开或常闭型电磁阀电控装置，具有双保险作用，即使停电或电浮球失灵，也能控制水位，绝不会让水位超过规定的位置，电动浮球阀可以设置启闭水位，解决主阀频繁启闭。该阀广泛用于高层建筑、城市生活用水、消防、工况企业的水池，水塔的进水管道中

The imported electromagnetic remote control float valve is equipped with a normally open or normally closed electromagnetic valve electric control device, which has a dual safety function. Even if there is a power outage or the electric float valve fails, the water level can be controlled and will never exceed the specified position. The electric float valve can set the opening and closing water level to solve the problem of frequent opening and closing of the main valve. This valve is widely used in water tanks and inlet pipes of water towers in high-rise buildings, urban domestic water, firefighting, and operating enterprises

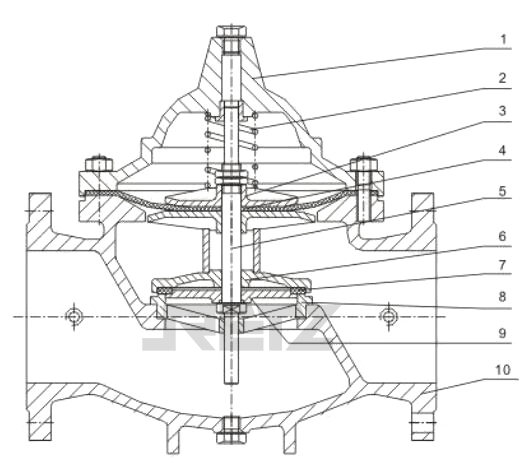

结构和主要零件材质 Structure and main component materials

结构形式为液控截止形式，按不同口径采用橡胶膜片和活塞式连接阀盖瓣开启、关闭的形式 The structure is in the form of hydraulic control cut-off, with rubber diaphragm and piston type connection valve cover disc opening and closing according to different diameters

该阀由主阀、针阀、球阀、浮球阀和微型过滤器等组成，如图所示 The valve consists of a main valve, needle valve, ball valve, float valve, and micro filter, as shown in the figure

主要零件材质 Main component materials

工作原理

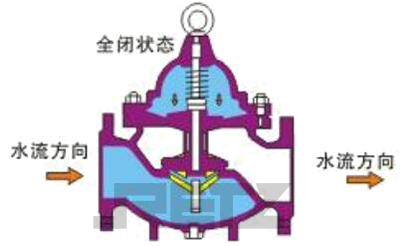

关闭状态：当主阀进口端水压分别进入阀体及控制室，且主阀的外部球阀同时关闭，此时主阀处于关闭状态。

Fully closed state: When the water pressure at the inlet end of the main valve enters the valve body and control room respectively, and the external ball valve of the main valve is closed at the same time, the main valve is in a fully closed state

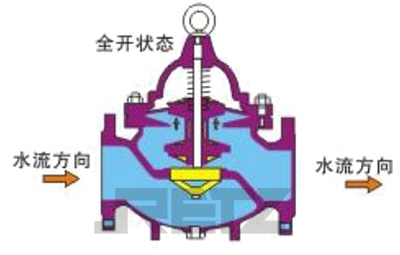

开启状态：当主阀外部的球阀全开后，此时控制室内水压全部释放到管路下游，而主阀也呈现为开启状态。

Fully open state: When the ball valve outside the main valve is fully open, all the water pressure in the control room is released to the downstream of the pipeline, and the main valve also shows a fully open state

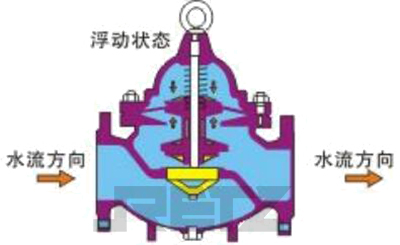

浮动调节状态：调节主阀外部的球阀开度，使进水端流向控制室的水流和控制室流向下游的水流达到平衡，此时主阀处于调节浮动状态。

Floating adjustment state: Adjust the opening of the ball valve outside the main valve to balance the water flow from the inlet end to the control room and the water flow from the control room to the downstream. At this time, the main valve is in the floating adjustment state

安装与调试 Installation and debugging

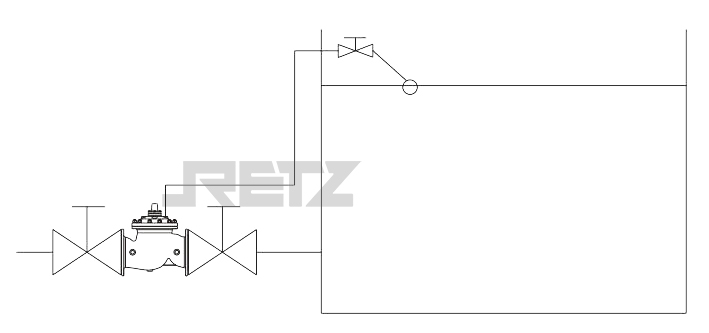

1、主阀安装于水池或高位水塔的进水管上，最佳安装方式是水平安装在管线上，阀盖朝上，其他安装方式也可达到操作功能。浮球阀安装于水池和水塔内，以便遥控 The main valve is installed on the inlet pipe of the pool or high-level water tower, and the best installation method is to install it horizontally on the pipeline with the valve cover facing upwards. Other installation methods can also achieve operational functions. Floating ball valves are installed in the pool and water tower for remote control

2、安装前要清除管道内的杂物，冲洗管道。安装时要注意主阀体外水流标示箭头，遵循方向安装 Before installation, thoroughly remove any debris from the pipeline and flush the pipeline thoroughly. When installing, pay attention to the water flow arrow outside the main valve and follow the direction of installation

3、主阀前要装一只闸阀和一只过滤器，主阀后也需装一只间阀，以便于维修 A gate valve and a filter should be installed in front of the main valve, and a space valve should also be installed behind the main valve for maintenance purposes

4、试水时要慢慢开启主阀前的闸阀，慢慢增加压力，同时注意主阀体外的控制管路是否泄漏 When testing the water, slowly open the gate valve in front of the main valve, slowly increase the pressure, and pay attention to whether the control pipeline outside the main valve is leaking

5、为出厂时包装方便，浮球阀装于主阀上 For convenient packaging at the factory, the float valve is installed on the main valve

6、主阀导管进口处的微型过滤器要2~3个月清洗一次 The micro filter at the inlet of the main valve guide should be cleaned every 2-3 months
