节能 差流梭式止回阀

简要描述:RETZ进口节能、差流梭式止回阀用于水泵出口或其他防止液体倒流的地方,可有效防止普通止回阀液体倒流时产生的水锤冲击和噪音

  • 品牌:RETZ
  • 工况条件:逆止
  • 温度/压力:P-T: 40bar@200℃
  • 更新时间:2023/04/17
产品详情 在线咨询

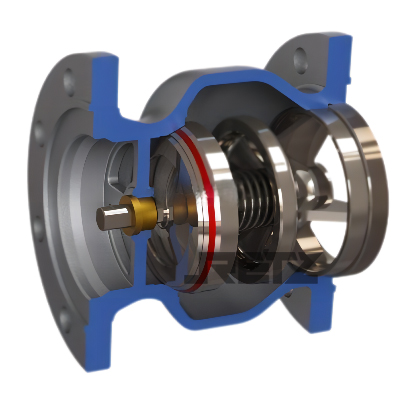

进口差流梭式止回阀产品描述 Product Description进口差流梭式止回阀.jpg

差流梭式止回阀根据差流可调梭阀的基本原理设计而成的。内部流道采用流线型设计并设有导流体。主要用于水泵出口或其他防止液体倒流的地方,静音关闭并且密封性能好,可有效防止普通止回阀液体倒流时产生的水锤冲击和噪音

The imported differential shuttle check valve is designed based on the basic principle of differential adjustable shuttle valves. The internal flow channel adopts streamline design and is equipped with fluid guide. Mainly used at the outlet of water pumps or other places to prevent liquid backflow, it is silent and has good sealing performance, which can effectively prevent water hammer impact and noise caused by liquid backflow in ordinary check valves


设计与应用标准 Design and Application Standards

设计与制造标准:GB/T12233-2006、GB/T 12235-2007、GB/T 12224-2005

连接法兰标准:JB/T 78-1994、JB/T 79-1994、GB/T 9113、GB/T 17241.6

结构长度标准:GB/T12221-2005

检验与实验标准:JB/T9092-1999

规格尺寸:1-20”

公称压力:10-40BAR


主要材料 Main materials

阀体、导流体
Valve Body,Lead fluids

阀瓣Disc

弹簧Spring

    阀座密封
Valve seat sealing

适用介质Applicable Medium

碳钢、不锈钢
Carbon steelstainless steel

碳钢、不锈钢
Carbon steelstainless steel

不锈钢
Stainless Steel

     不锈钢

Stainless Steel

200℃,介质:水、油品蒸汽

≤ 200 ℃, medium: water, oil vapor


进口节能梭式止回阀产品描述 Product Description


The energy-saving shuttle check valve is mainly used in water supply and drainage systems. It is installed vertically on the pipeline and relies on the pressure difference inside the system and the weight of the valve disc to achieve lifting and closing


设计与应用标准 Design and Application Standards

设计与制造标准:GB/T12233-2006、GB/T 12235-2007、GB/T 12224-2005

连接法兰标准:JB/T 78-1994、JB/T 79-1994、GB/T 9113、GB/T 17241.6

结构长度标准:GB/T12221-2005

检验与实验标准:JB/T9092-1999

规格尺寸:1-20”

公称压力:10-40BAR


主要材料 Main materials

阀体Valve Body

阀瓣Disc

阀座密封垫Sealed cushion of the valve seat

适用介质Applicable Medium

球墨铸铁、碳钢
Ductile iron, carbon steel

镀铬铸铁
Chromeplate gray cast iron of chromium

丁晴橡胶
Nitrile-butadiene Rubber(NBR)

≤80℃,介质:水

≤ 80 ℃, medium: water
