静音式止回阀

简要描述:RETZ进口静音式止回阀主要用于给排水、消防、暖通、化工、电厂、冶金石化等系统,一般安装在水泵的出口处,以防倒流及水锤对泵的损害

  • 品牌:RETZ
  • 工况条件:静音
  • 温度/压力:P-T:16bar@80℃
  • 更新时间:2023/04/20
产品详情 在线咨询

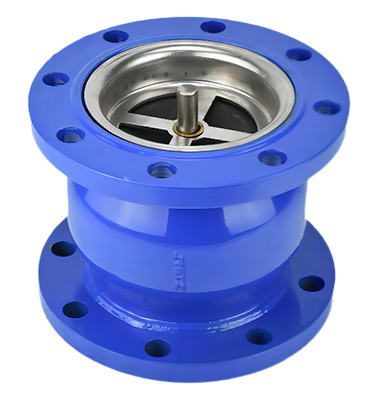

产品描述 Product Description进口静音式止回阀2.jpg

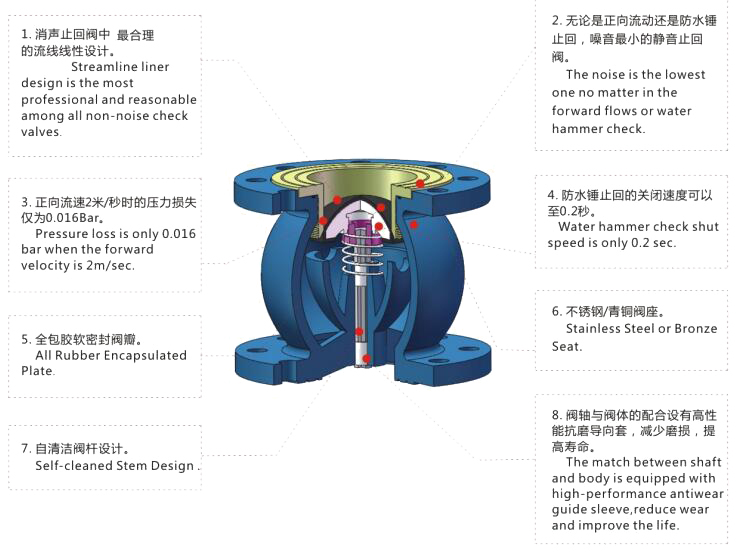

静音止回阀主要由阀体、阀座、导流体、阀瓣、导向套和压缩弹簧等零件组成.符合水利学的轮廓设计,取得较佳的流线型水路,内部付有导流体设计能保证最小压力损失,阀瓣行程较短,停泵能快速关闭,防止水锤水击的发生,达到静音的效果。

The silent check valve is mainly composed of valve body, valve seat, guide body, valve disc, guide sleeve, compression spring and other parts. It conforms to the outline design of hydraulics, and achieves a better streamline waterway. The internal fluid guide design can ensure the minimum pressure loss. The valve disc travel is short, and the pump can be shut down quickly to prevent the occurrence of water hammer and water hammer, so as to achieve the effect of silence.


主要技术性能(Main technical feature)

公称压力(MPa)
Nominal pressure

试验压力Ps(MPa)Test pressure

适用介质
Suitable medium

工作温度(℃)
TeMa2re

     阀体材料
Valve Body Material

壳体

Shell

水压密封

Hydraulic seal

气压密封

Pressurized seal

1.0

1.5

1.1

0.6

水、气体、油品等Water, steam,gas, oil,etc.

0100

灰铸铁Gray cast iron

1.6

2.4

1.76

0.6

0100

球墨铸铁Nodular  castiron

2.5

3.8

2.8

0.6

0100

碳素钢Carbon  steel

                                         规格size  1-12


主要零件材质 Structure and main component materials

零件材质
Parts and
Materials

阀体、导流体
Valve Body
Lead fluids

阀辩、轴阀座
    Discaxle valve seat

弹簧
Spring

 材料
Material

灰铸铁、球墨铸铁
碳钢
Gray casting iron,
Spheroidal Graphite
Cast iron,
Carbon steel

     铝青铜
   或铬不锈钢
   Aluminium
    bronze or
    chromium
stainless steel

不锈钢

Stainless
Steel

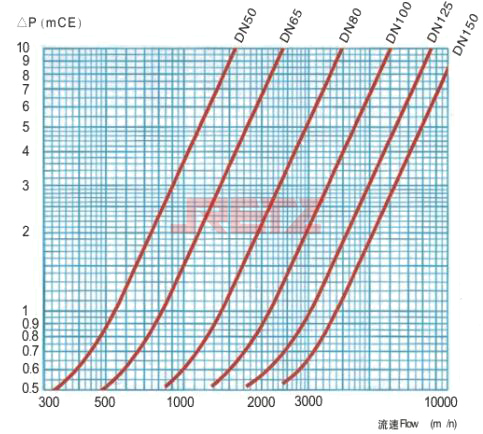

压力损失 Pressure Loss

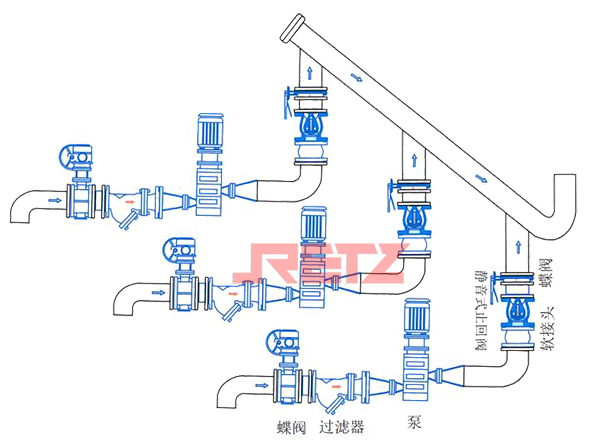

安装示意图 installation diagram
