(HGP-33A)双联齿轮泵

排量：1.1cc到93cc

压力：公称∶210bar   最高240bar

转速：3500 rev/min

HGP-33A进口双联齿轮泵 性能 performance

1、超低噪音性能  Ultra low noise performance

内啮合齿轮泵内部齿轮触点平滑，静音连转。其卓越特性为特殊齿轮设计,使用时其声音极低，即使在高速运转，音频仍然平稳平和retz品牌 The internal gear contact of the internal gear pump is smooth and silent. Its outstanding feature is the special gear design. When it is used, its sound is extremely low. Even at high speed, the audio is still stable and flat

2、高运转耐磨性  High running wear resistance

除机械结构简单外，使用高级液压油，可以减少机械表面及各功能零件的磨损。能以200bar压力高速运转，即使使用一般的液压油，也不易磨损机件 In addition to the simple mechanical structure, the use of high-grade hydraulic oil can reduce the wear of mechanical surfaces and functional parts. It can operate at a high speed with a pressure of 200bar, and it is not easy to wear parts even if ordinary hydraulic oil is used

3、极低压力脉动 Very low pressure pulsation

几乎可以完全免除压力波，故可作为系统精确控速的理想机械工具使用压力范围广泛 It can almost completely eliminate the pressure wave, so it can be used as an ideal mechanical tool for precise speed control of the system, and the pressure range is wide

HGP-33A双联齿轮泵 规格说明 Description

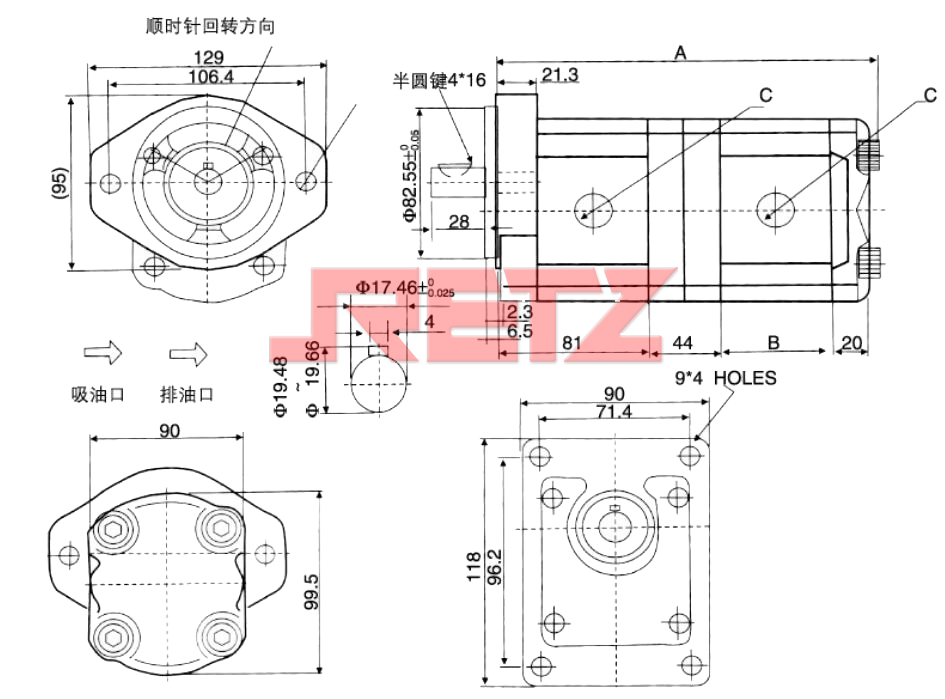

型号说明 Model description

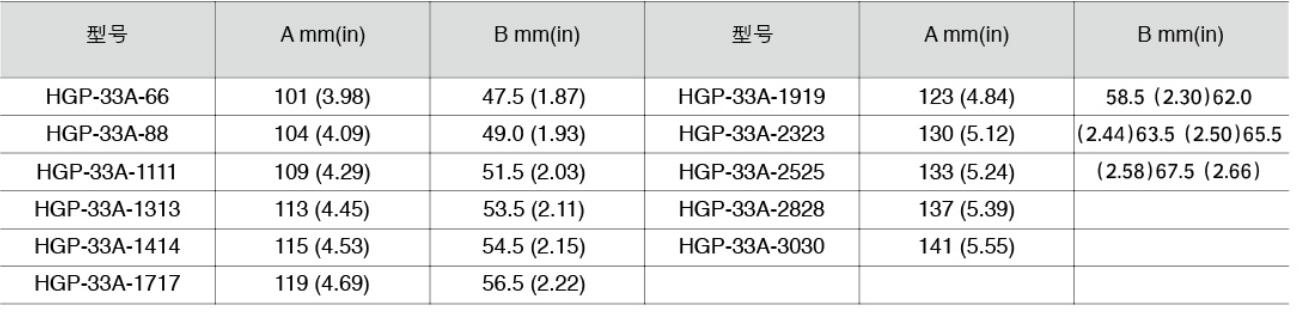

参数表  Parameter table
