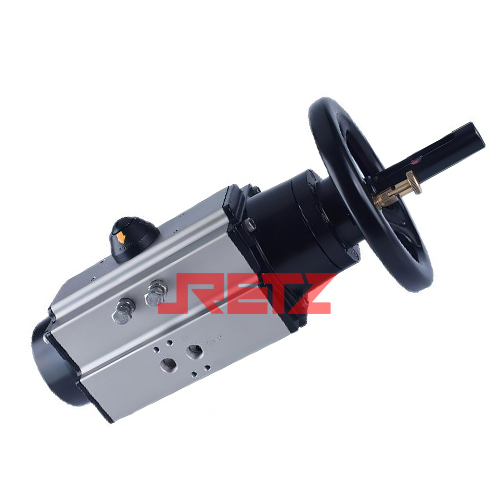

(CTS)手动操作气动执行器

(CTS)进口手动操作气动执行器将齿条齿轮机构与手动离合器机构集成一体 ，除了保留齿条齿轮式气动执行器的各 项功能外，增加了气动执行器的现场手动功能和0°- 90°间任意位置的阀位调节、限位和锁紧功能

CTS manual operation pneumatic actuator integrates the rack and pinion mechanism with the manual clutch mechanism. In addition to retaining the functions of the rack and pinion pneumatic actuator, the on-site manual function of the pneumatic actuator and the valve position adjustment, limit and locking functions at any position between 0 ° - 90 ° are added

(CTS)进口手动操作气动执行器 特性介绍  Introduction to characteristics of manual pneumatic actuator

1.将气动执行器与手动离合器机构集成一体 ，高精度 低成本地实现了控制阀的现场紧急制动 The pneumatic actuator is integrated with the manual clutch mechanism, and the on-site emergency braking of the control valve is realized with high precision and low cost

2.适用于双作用和单作用功能，单作用功能最多可装 12根回复弹簧 It is applicable to double acting and single acting functions, and the single acting function can be equipped with up to 12 return springs

3.产品依据ISO/NAMUR国际标准设计制造，能与各种 附件无缝连接和安装 The product is designed and manufactured according to iso/namur international standards, and can be seamlessly connected and installed with various accessories

4.具有行程末端0±5°和90±5°调节与限位  It has 0 ± 5 ° and 90 ± 5 ° adjustment and limit at the end of stroke

5.可轻松实现0°- 90°间任意位置的限位、调节和锁紧功能  It can easily realize the limit, adjustment and locking functions at any position between 0 ° - 90 °

6.可实现0°- 90°间任意位置的授权锁位 It can realize authorized locking at any position between 0 ° - 90 °

(CTS)进口手动操作气动执行器 工作原理 Working principle of manual pneumatic actuator

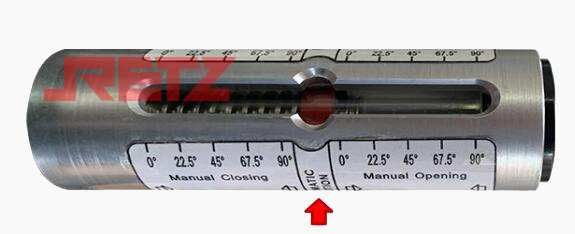

（1）0° - 90°的气动工作状态：该气动工作是CTS系列手操气动执行器最基本的气动工作形式。通过旋转手轮将保护套视窗槽中的红色指示 器移到中间的气动位置（见下图），此时手操气动执行器 进入0° - 90°的气动工作状态。值得注意的是行程末端0±5°和90±5°调 节的调节是通过缸体侧面的二个调节螺钉实现的 。

 0 ° - 90 ° pneumatic working state: this pneumatic work is the most basic pneumatic working form of CTS series manual pneumatic actuators. Turn the hand wheel to move the red indicator in the window slot of the protective sleeve to the middle pneumatic position (see the figure below). At this time, the manual pneumatic actuator enters the pneumatic working state of 0 ° - 90 °. It is worth noting that the adjustment of 0 ± 5 ° and 90 ± 5 ° adjustment at the end of the stroke is achieved by two adjusting screws on the side of the cylinder block.

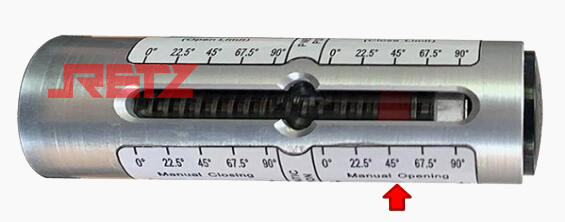

（2）0° - 45°的气动工作状态：该气动工作是CTS系列手操气动执行器 较为特殊的气动工作形式。通过旋转手轮将保护套视窗槽中的红色 指示器移到左边开向限位区（见下图），此时手操气动执 行器进入0° - 45°的气动工作状态。值得注意的是45度的开向限位是由手轮机构提供的。

0 ° - 45 ° pneumatic working state: this pneumatic work is a special pneumatic work form of CTS series manual pneumatic actuators. Rotate the hand wheel to move the red indicator in the window slot of the protective sleeve to the left opening limit area (see the figure below), and then the manual pneumatic actuator enters the pneumatic working state of 0 ° - 45 °. It is worth noting that the 45 degree open limit is provided by the handwheel mechanism.

（3）45° - 90°的气动工作状态：该气动工作是CTS系列手操气动执行 器较为特殊的气动工作形式。通过旋转手轮将保护套视窗槽中的红色指示器移到右边关向限位区（见下图），此时手操气 动执行器进入45° - 90°的气动工作状态。值得注意的是45度的关向限 位是由手轮机构提供的

45 ° - 90 ° pneumatic working state: this pneumatic work is a special pneumatic work form of CTS series manual pneumatic actuators. Rotate the hand wheel to move the red indicator in the window slot of the protective sleeve to the right closing limit area (see the figure below). At this time, the manual pneumatic actuator enters the pneumatic working state of 45 ° - 90 °. It is worth noting that the 45 degree closing limit is provided by the handwheel mechanism

 45° 是一个非标限位概念，可根据现场要求在 5° - 85°间选定需要的限位位置  45 ° is a non-standard limit concept, and the required limit position can be selected between 5 ° - 85 ° according to the site requirements

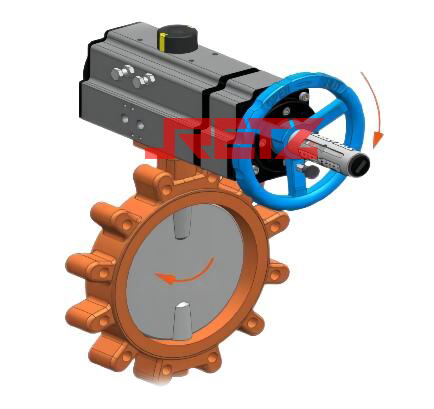

顺时针关闭阀门 Close the valve clockwise

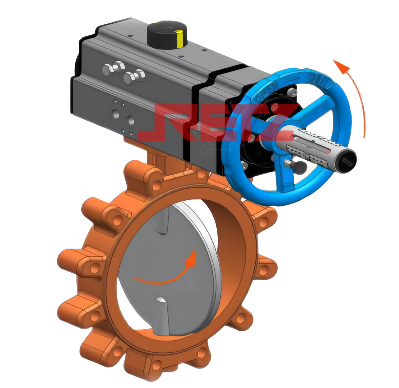

逆时针打开阀门 Open the valve counterclockwise

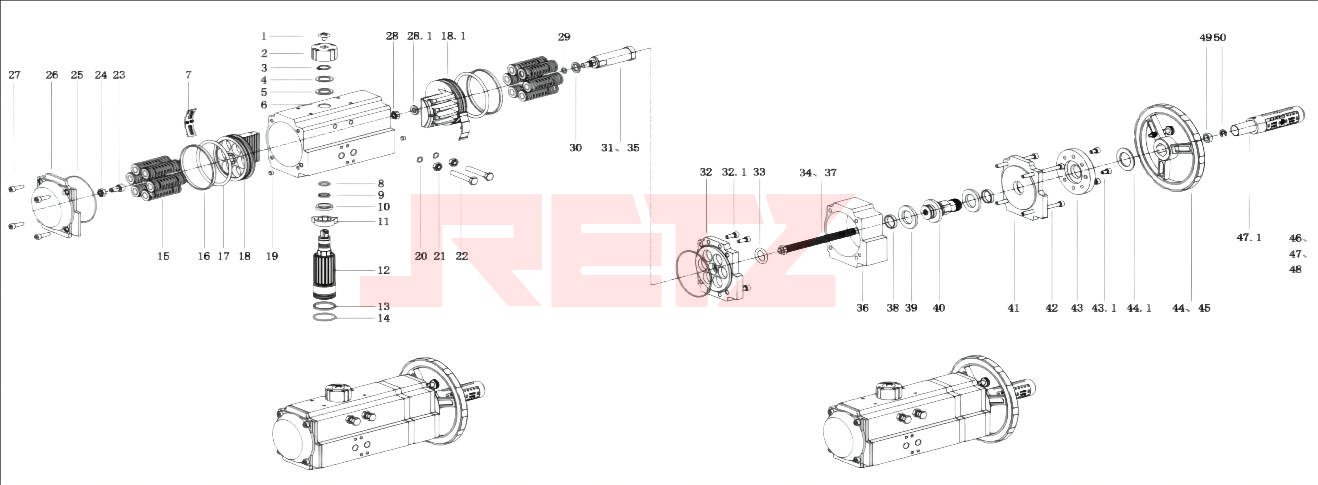

产品结构和零部件材料
