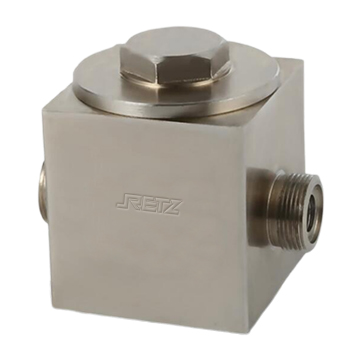

(CGQ)管路强磁过滤器

(CGQ)进口管路强磁过滤器 技术参数 Technical paramete

通径(NG)6-50, 压力至31.5MPa ,过滤精度Filtration accuracy:60 μ m,原始压力损失:0.14~0.19MPa

Diameter (NG) 6-50, pressure to 31.5MPa, filtration accuracy: 60 μ m. Original pressure loss: 0.14~0.19MPa

特性 characteristic

强磁管路过滤器由采用高矫顽力的强磁性材料与阻拦滤网组合而成。吸附力是一般磁性材料的十倍，具有在瞬间液流冲击或高流速状态下，吸附微米级的铁磁性污染物的能力，并能克服在高速大冲击下冲下的铁磁性污染物重新被吸附住，从而避免了液压元件的卡死或磨擦付的磨损，延长液压元件及液压系统的使用寿命，增强液压系统的可靠性。管路过滤器在电液伺服系统和电液比例系统中应用，效果十分明显 retz Strong magnetic pipeline filter is composed of strong magnetic material with high coercivity and blocking filter screen. The adsorption force is ten times of that of ordinary magnetic materials. It has the ability to adsorb micron level ferromagnetic pollutants under instantaneous liquid flow impact or high flow rate, and can overcome the re adsorption of ferromagnetic pollutants under high speed and large impact, thus avoiding the seizure of hydraulic components or wear of friction pairs, extending the service life of hydraulic components and hydraulic systems, and enhancing the reliability of hydraulic systems. The application of pipeline filter in electro-hydraulic servo system and electro-hydraulic proportional system has obvious effect.

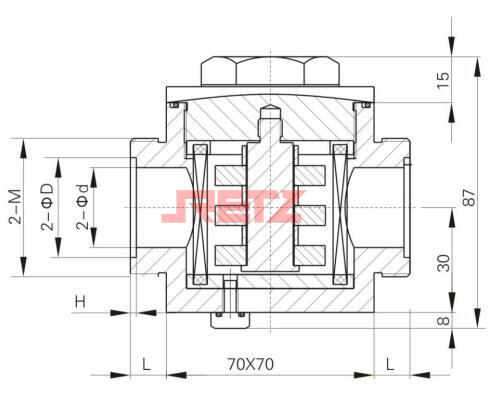

通径d(6-25)外形尺寸

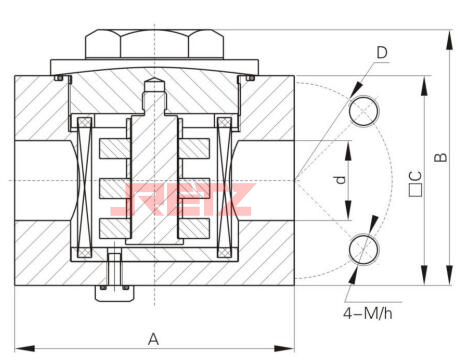

通径d(32-50)外形尺寸

注：该过滤器清洗时先打开放油孔，放出内部的油液，再打开端盖清洗磁芯及过滤网，若再次安装时先把放油螺塞旋紧，再放入过滤网，过滤网底盘上的孔必须对准放油螺塞。

Note: retz When cleaning the filter, first open the oil opening hole to drain the internal oil, and then open the end cover to clean the magnetic core and filter screen. If it is reinstalled, first tighten the oil drain plug, and then put it into the filter screen. The hole on the filter screen chassis must be aligned with the oil drain plug.
