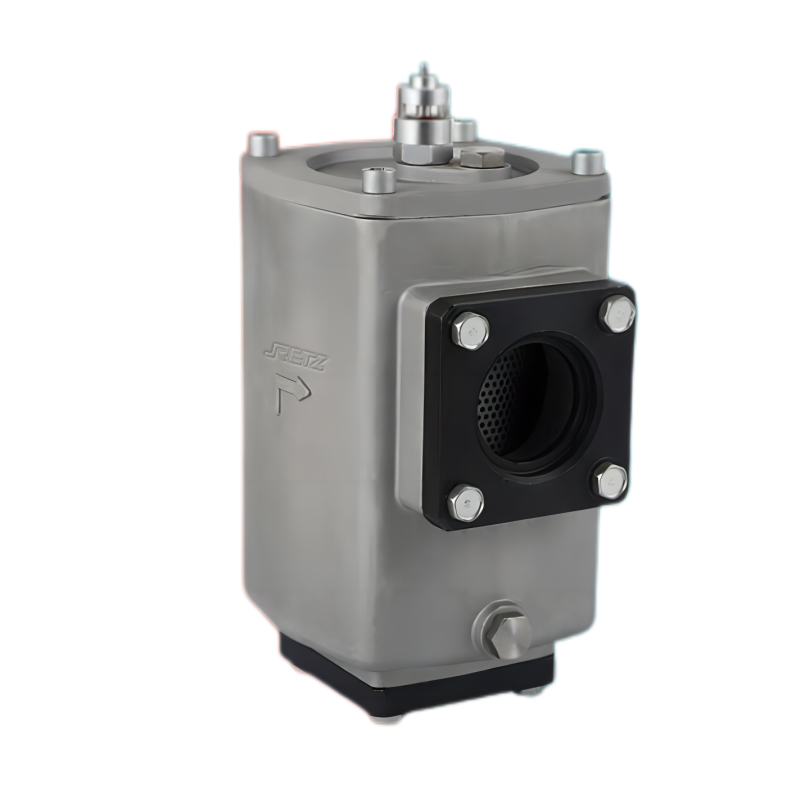

(TFA)管路吸油过滤器
简要描述：RETZ (TFA)进口管路吸油过滤器 管路过滤器仅可安装在油箱的上部,吸油筒体入油箱内液面以下,其它性能均与TF系列相似,但无自封阀
品牌：RETZ- 工况条件：活性炭吸油
- 温度/压力：P-T: 10bar@60℃
- 更新时间：2022/12/19
(TFA)进口管路吸油过滤器 技术参数 Technical paramete
过滤精度:80 μ m,原始压力损失:＜0.01
Filtering precision: 80 μ m. Original pressure loss: ＜ 0.01
本过滤器仅可安装在油箱的上部吸油管体入油箱内液面以下其它件能均与TE系列相似，但无自封阀 retz Filtering precision: 80 μ m. Original pressure loss: ＜ 0.01

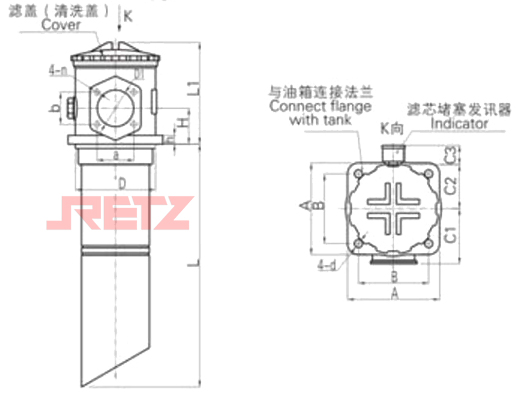

TFA-25~160螺纹式连接尺寸
管式（出油口螺纹连接）Threaded Connection
型号 | 尺寸(mm) | ||||||||||||
L1 | L2 | L3 | H | M | D | A | B | C1 | C2 | C3 | h | d | |
TFA-25x*L-c Y | 93 | 78 | 36 | 25 | M22x1.5 | Φ62 | 80 | 60 | 45 | 42 | 42 | 9.5 | Φ9 |
TFA-40x*L-c Y | 110 | M27x2 | |||||||||||
TFA-63x*L-c Y | 138 | 98 | 40 | 33 | M33x2 | Φ75 | 90 | 70.7 | 54 | 47 | 10 | ||
TFA-100x*L-c Y | 188 | M42x2 | |||||||||||
TFA-160x*L-c Y | 200 | 119 | 53 | 42 | M48x2 | Φ91 | 105 | 81.3 | 62 | 53.5 | 12 | Φ11 | |
TFA-250~1300法兰式连接尺寸
法兰式（出油口法兰连接Flanged Connection
型号 | 尺寸(mm) | ||||||||||||||||
L1 | L2 | L3 | H | D1 | D | a | b | n | A | B | C1 | C2 | C3 | h | d | Q | |
TFA-250x*F-c Y | 270 | 119 | 53 | 42 | Φ50 | Φ91 | 70 | 40 | M10 | 105 | 81.3 | 72.5 | 53.5 | 42 | 12 | Φ11 | Φ60 |
TFA-400x*F-c Y | 275 | 141 | 60 | 50 | Φ65 | Φ110 | 90 | 50 | 125 | 95.5 | 82.5 | 61 | 15 | Φ73 | |||
TFA-630x*F-c Y | 325 | 184 | 55 | 65 | Φ90 | Φ140 | 120 | 70 | 160 | 130 | 100 | 81 | 15.5 | Φ102 | |||
TFA-800x*F-c Y | 385 | ||||||||||||||||
TFA-1000x*F-c Y | 485 | ||||||||||||||||
TFA-1300x*F-c Y | 680 | ||||||||||||||||
注：管路过滤器所需的出油口法兰，安装连接螺栓及密封垫圈等配件均和本产品配套提供，用户只需准备好Q的管子焊上即可。发讯器连接口为M18x1.5不需带发讯器者可提供丝堵 Note: retz The oil outlet flange, mounting bolts, sealing washers and other accessories required by the pipeline filter are provided with this product. Users only need to prepare the Q pipe for welding. The connector of the transmitter is M18x1.5. If the transmitter is not required, the plug can be provided
