(PLF)压力管路过滤器

简要描述：RETZ (PLF)进口压力管路过滤器可安装在不同压力等级的压力管路上，用以进一步清除或阻挡由于外界带入元件工作时磨损，以及介质本身化学作用所产生的杂质。特别适用于自动控制系统和伺服系统

品牌：RETZ
工况条件：油管路过滤
温度/压力：P-T: 320bar@80℃
更新时间：2022/12/19

联系我们

产品详情 在线咨询

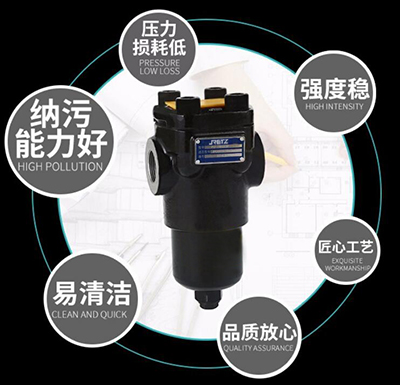

性能特点 Performance characteristics (PLF)进口压力管路过滤器2.jpg

(PLF)进口压力管路过滤器可防止高精度的控制元件和执行元件由于污染而过早磨损或卡死，从而可减少故障，延长元件使用寿命。过滤器采用优质玻璃纤维滤材，具有过滤精度高，通油能力强，原始压力损失小，纳污量大等优点。过滤精度以过滤精度标定，其过滤比β3,5,10,20＞100过滤效率n≥99%。符合ISO标准 (PLF) inlet pressure line filter can prevent high-precision control elements and actuating elements from premature wear or seizure due to pollution, thus reducing failures and extending the service life of elements. The filter adopts high-quality glass fiber filter material, which has the advantages of high filtering accuracy, strong oil permeability, small original pressure loss, and large dirt holding capacity. The filtering precision is calibrated according to the filtering precision, and its filtering ratio β 3,5,10,20 ＞ 100 filtration efficiency n ≥ 99%. ISO compliant

结构特点 Structural characteristics

1、与同等流量过滤器相比，结构紧凑体积小 Compact structure and small volume compared with the same flow filter

2、使用压力范围宽 Wide operating pressure range

3、换滤芯方便，根据安装空间，打开上盖，更换滤芯，也可旋下外壳（先放油）从下面取下滤芯 It is convenient to change the filter element. According to the installation space, open the upper cover, replace the filter element, or unscrew the housing (drain oil first) to remove the filter element from below

4、安装固定方便：如用户按标准流向安装有困难时可拆下盖上4个螺钉，把盖转动180度。这样就改变了介质流动方向 Convenient installation and fixation: If it is difficult for users to install according to the standard flow direction, remove 4 screws on the cover and turn the cover 180 degrees. This changes the flow direction of the medium

5、该过滤器设有旁通阀和压差发讯装置，双重保护功能。当滤芯污染堵塞至进出口压差值为发现讯器设定值时，发讯器发讯，此时必须更换滤芯 The filter is equipped with a bypass valve and a differential pressure transmitter, with dual protection functions. When the filter element is polluted and blocked until the differential pressure between the inlet and outlet is the set value of the detector, the transmitter will send a signal, and the filter element must be replaced

(RLF)进口回油管路过滤器技术参数 Technical paramete

型号	公称流量(L/min)	过滤精度(μm)	公称压力(Mpa)	压力损失(MPa)		发讯装置功率(V/W)	滤头型号	连接方式
				Initial	Max
PLF-□30x*P	30	3 5 10 20	H=32 E=16 C=6.3	≤0.07	0.5	24V/48W 220V/50W	PLFX-30X-*	管式
PLF-□60x*P	60						JH0060D*BN3HC
PLF-□110x*P	110						JH0110D*BN3HC
PLF-□160x*P	160						JH0160D*BN3HC
PLF-□240x*FP	240						JH0240D*BN3HC	法兰式
PLF-□330x*FP	330						JH0330D*BN3HC
PLF-□500x*FP	500						JH0500D*BN3HC
PLF-□660x*FP	660						JH0660D*BN3HC

注：※表示过滤精度 Note: ※ represents the filtering precision

滤芯压差流量曲线 Filter element differential pressure flow curve

滤芯JH※D※BN/HC（由试验测得数据）Filter element JH ※ D ※ BN/HC (data measured by test)

Q-△P曲线油液粘度 Q - △ P curve oil viscosity

过滤精度Filtation 5μm 流量Flow（l/min）

过滤精度Filtation 5μm.jpg

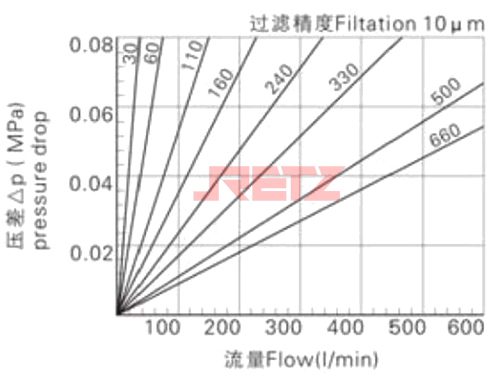

过滤精度Filtation 10μm 流量Flow（l/min）

过滤精度Filtation 10μm.jpg

外型尺寸 Overall dimensions

管式 THREADED CONNECTION

6.3MPa压力管路过滤器 6.3MPa pressure pipeline filter

型号	~H	~H1	H2	H3	H4	h	L	L1	L2	D	M	d2
PLF-C30x*P	223	136	52	39		35	110	88	56	73	2-M33×2	2-M10
PLF-C60x*P	239	152	52	39		35	110	88	56	73	2-M33×2	2-M10
PLF-C110x*P	308	221	52	39		35	110	88	56	73	2-M42×2	2-M10
PLF-C160x*P	290	196	59	39	45	45	140	114	69	95	2-M48×2	4-M10

16MPa压力管路过滤器 16MPa pressure pipeline filter

型号	~H	~H1	H2	H3	H4	h	L	L1	L2	D	M	d2
PLF-E30x*P	223	136	52	39		35	110	100	62	73	2-M33×2	2-M10
PLF-E60x*P	239	152	52	39		35	110	100	62	73	2-M33×2	2-M10
PLF-E110x*P	308	21	52	39		35	110	100	62	73	2-M42×2	2-M10
PLF-E160x*P	294	196	63	43	45	45	140	130	77	95	2-M48×2	4-M10

32MPa压力管路过滤器 32MPa pressure pipeline filter

型号	~H	~H1	H2	H3	H4	h	L	L1	L2	D	M	d2
PLF-H30x*P	239	146	58	45		35	118	114	69	73	2-M33×2	2-M10
PLF-H60x*P	255	162	58	45		35	118	114	69	73	2-M33×2	2-M10
PLF-H110x*P	329	236	58	45		35	118	114	69	73	2-M42×2	2-M10
PLF-H160x*P	319	215	69	49	45	50	150	140	82	102	2-M48×2	4-M10

法兰式FLANGED CONNECTION

6.3MPa压力管路过滤器 6.3MPa pressure pipeline filter

型号	尺寸(mm)
型号	~H	~H1	H2	H4	H5	h	h1	h2	h3	h4	L	L1	L2	D	d	d1	d2
PLF-C240x*FP	348	254	59	45	39	45	69.9±0.25	94	35.7±0.25	82	140	114	69	95	2-Φ38	4-M12	4-M10
PLF-C330x*FP	350	249	66	55	46	65	77.8±0.25	102	42.9±0.25	96	180	144	90	133	2-Φ51	4-M12	4-M12
PLF-C500x*FP	443	342	66	55	46	65	77.8±0.25	102	42.9±0.25	96	180	144	90	133	2-Φ51	4-M12	4-M12
PLF-C660x*FP	517	416	66	55	46	65	77.8±0.25	102	42.9±0.25	96	180	144	90	133	2-Φ51	4-M12	4-M12

16MPa压力管路过滤器 16MPa pressure pipeline filter

型号	尺寸(mm)
型号	~H	~H1	H2	H4	H5	h	h1	h2	h3	h4	L	L1	L2	D	d	d1	d2
PLF-E240x*FP	352	254	63	45	43	45	69.9±0.25	94	35.7±0.25	82	140	130	77	95	2-Φ38	4-M12	4-M10
PLF-E330x*FP	368	257	76	55	56	75	77.8±0.25	102	42.9±0.25	96	180	164	100	140	2-Φ51	4-M12	4-M12
PLF-E500x*FP	461	350	76	55	56	75	77.8±0.25	102	42.9±0.25	96	180	164	100	140	2-Φ51	4-M12	4-M12
PLF-E660x*FP	535	424	76	55	56	75	77.8±0.25	102	42.9±0.25	96	180	164	100	140	2-Φ51	4-M12	4-M12

32MPa压力管路过滤器 32MPa pressure pipeline filter

型号	尺寸(mm)
型号	~H	~H1	H2	H4	H5	h	h1	h2	h3	h4	L	L1	L2	D	d	d1	d2
PLF-H240x*FP	377	273	69	45	49	50	79.4±0.25	110	36.5±0.25	90	150	140	82	102	2-Φ38	4-M16	4-M10
PLF-H330x*FP	400	277	88	60	63	80	96.8±0.25	130	44.5±0.25	110	190	180	108	146	2-Φ51	4-M20	4-M12
PLF-H500x*FP	493	370	88	60	63	80	96.8±0.25	130	44.5±0.25	110	190	180	108	146	2-Φ51	4-M20	4-M12
PLF-H660x*FP	567	444	88	60	63	80	96.8±0.25	130	44.5±0.25	110	190	180	108	146	2-Φ51	4-M20	4-M12

安装示意图 MOUNTING GUIDE
