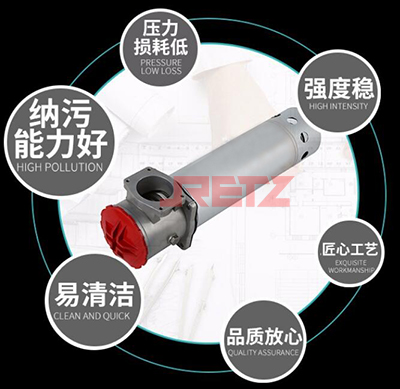

(TF)箱外自封式吸油过滤器
简要描述：RETZ (TF)进口箱外自封式吸油过滤器安装在油泵吸油口处,用以保护油泵及其它液压元件,以避免吸入污染杂质,有效地控制液压系统污
品牌：RETZ- 工况条件：吸油过滤
- 温度/压力：P-T: 16bar@80℃
- 更新时间：2022/12/20
(TF)进口箱外自封式吸油过滤器可直接安装在油箱侧边,上部或底部，吸油筒体侵入油箱内液面以下，过滤器滤头露在油箱外，并设有自封阀,旁通阀,滤芯污染堵塞发讯器等装置,更换滤芯和清洗滤芯时油箱内不会流出,本产品设计新颖,安装方便,通油能力大,阻力小,清洗或更换滤芯方便等优点
(TF) The imported self sealing oil suction filter outside the tank can be directly installed on the side, upper or bottom of the oil tank. The oil suction cylinder intrudes below the liquid level in the oil tank, and the filter head is exposed outside the oil tank. Self sealing valves, bypass valves, filter element pollution blocking transmitters and other devices are also provided. When replacing the filter element and cleaning the filter element, the oil tank will not flow out. This product has the advantages of novel design, convenient installation, large oil passing capacity, small resistance, convenient cleaning or replacing the filter element, etc
性能特点 Performance characteristics
1、安装连接方便，简化系统管路 Convenient installation and connection, simplified system pipeline
可直接安装在油箱侧边，底部或上部，过滤器头露在油箱外，吸油筒体浸入油箱内液面以下，出油口设有管式、法兰式连接，过滤器内设有自封阀等装置，使管路省去装截止阀等其它管件，从而使管路简化，安装方便。
It can be directly installed on the side, bottom or upper part of the oil tank, the filter head is exposed outside the oil tank, the oil suction cylinder is immersed below the liquid level in the oil tank, the oil outlet is equipped with pipe type and flange type connections, and the filter is equipped with self sealing valves and other devices, so that the pipeline does not need to install stop valves and other pipe fittings, so that the pipeline is simplified and the installation is convenient
2、设置自封阀，使更换、清洗滤芯或维修系统非常方便 The self sealing valve is set to make it very convenient to replace and clean the filter element or maintain the system
当更换、清洗滤芯或维修系统时，只需旋开过滤器端盖(清洗盖),此时自封阀会自动关闭,隔绝油路,使油箱内油液不会向外流出，从而使清洗，更换滤芯或维修系统非常方便，如顶开自封又可作油箱向外放油之用
When replacing and cleaning the filter element or repairing the system, just unscrew the filter end cap (cleaning cap). At this time, the self sealing valve will automatically close, isolate the oil path, so that the oil in the tank will not flow out, which makes cleaning, replacing the filter element or repairing the system very convenient. If the self sealing valve is opened, it can also be used for draining oil from the tank
3、吸油过滤器具有滤芯污染发讯器与油路旁通阀，提高了液压系统的可靠性 The oil suction filter is equipped with filter element pollution transmitter and oil circuit bypass valve, which improves the reliability of the hydraulic system
当滤芯被污染物堵塞到出油口真空度为0.018MPa时，发讯器便发出讯号，应及时更换或清洗滤芯。若此时不能马上停机或无人来更换滤芯时,设在滤芯上部的油路旁通阀会自动开启（开启值为：真空0.02MPa），以避免油泵出现吸空故障。但些时应停机更换或清洗滤芯，以保持液压系统清洁度，提高液压系统的可靠性 When the filter element is blocked by pollutants and the vacuum degree of the oil outlet is 0.018MPa, the transmitter will send a signal, and the filter element should be replaced or cleaned in time. If the machine cannot be stopped immediately or no one comes to replace the filter element at this time, the oil path bypass valve set at the upper part of the filter element will open automatically (opening value: vacuum 0.02MPa) to avoid the failure of oil pump suction. However, the machine should be stopped to replace or clean the filter element in order to maintain the cleanliness of the hydraulic system and improve the reliability of the hydraulic system
技术参数 Technical paramete
型号 | 公称流量 | 过滤精度 | 通径 | 原始压力损失 | 发讯装置 | 连接方式 | 重量(Kg) | 滤芯型号 | |
(V) | (A) | ||||||||
TF-25x*L-c Y | 25 | 80 100 180 | 15 | ＜0.01 | 12 24 36 220 | 2.5 2 1.5 0.25 | 管式 | 0.4 | TFX-25x* |
TF-40x*L-c Y | 40 | 20 | 0.45 | TFX-40x* | |||||
TF-63x*L-c Y | 63 | 25 | 0.82 | TFX-63x* | |||||
TF-100x*L-c Y | 100 | 32 | 0.87 | TFX-100x* | |||||
TF-160x*L-c Y | 160 | 40 | 1.75 | TFX-160x* | |||||
TF-250x*F-c Y | 250 | 50 | 法兰 | 2.60 | TFX-250x* | ||||
TF-400x*F-c Y | 400 | 65 | 4.3 | TFX-400x* | |||||
TF-630x*F-c Y | 630 | 90 | 6.2 | TFX-630x* | |||||
TF-800x*F-c Y | 800 | 6.9 | TFX-800x* | ||||||
TF-1000x*F-c Y | 1000 | TFX-1000x* | |||||||
TF-1300x*F-c Y | 1300 | TFX-1300x* | |||||||
注：*为吸油过滤器的过滤精度，若使用介质为水一乙二醇，公称流量160L/min,过滤精度80μm,带ZS-Ⅰ型发讯器,则过滤器型号为TF·BH-160x80L-C,滤芯型号为TFX·BH-160x80
Note: * is the filtering accuracy of the oil absorption filter. If the medium is water glycol, the nominal flow is 160L/min, and the filtering accuracy is 80 μ m. With ZS-I transmitter, the filter model is TF · BH-160x80L-C, and the filter element model is TFX · BH-160x80
外型尺寸 Overall dimensions

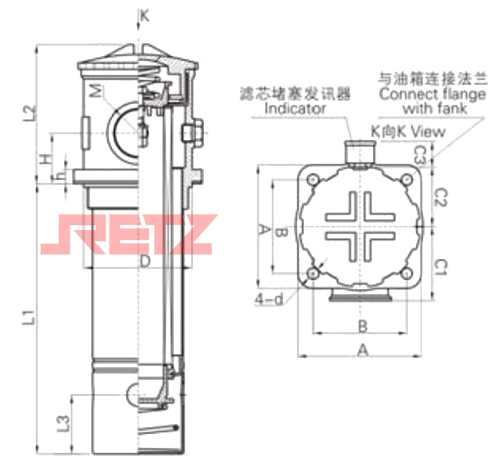

管式（出油口螺纹连接）Threaded Connection
型号 | 尺寸(mm) | ||||||||||||
L1 | L2 | L3 | H | M | D | A | B | C1 | C2 | C3 | h | d | |
TF-25x*L-c Y | 93 | 78 | 36 | 25 | M22x1.5 | Φ62 | 80 | 60 | 45 | 42 | 42 | 9.5 | Φ9 |
TF-40x*L-c Y | 110 | M27x2 | |||||||||||
TF-63x*L-c Y | 138 | 98 | 40 | 33 | M33x2 | Φ75 | 90 | 70.7 | 54 | 47 | 10 | ||
TF-100x*L-c Y | 188 | M42x2 | |||||||||||
TF-160x*L-c Y | 200 | 119 | 53 | 42 | M48x2 | Φ91 | 105 | 81.3 | 62 | 53.5 | 12 | Φ11 | |

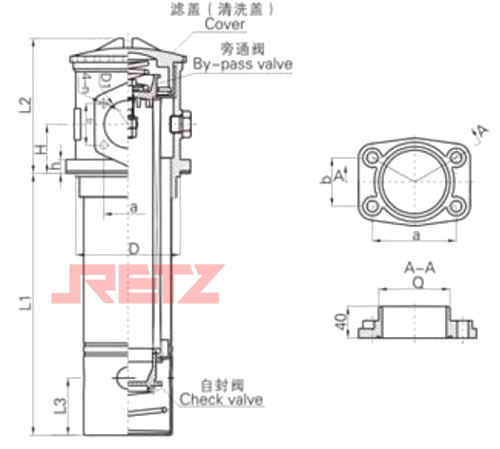

法兰式（出油口法兰连接）FlangedConnection
型号 | 尺寸(mm) | ||||||||||||||||
L1 | L2 | L3 | H | D1 | D | a | b | n | A | B | C1 | C2 | C3 | h | d | Q | |
TF-250x*F-c Y | 270 | 119 | 53 | 42 | Φ50 | Φ91 | 70 | 40 | M10 | 105 | 81.3 | 72.5 | 53.5 | 42 | 12 | Φ11 | Φ60 |
TF-400x*F-c Y | 275 | 141 | 60 | 50 | Φ65 | Φ110 | 90 | 50 | 125 | 95.5 | 82.5 | 61 | 15 | Φ73 | |||
TF-630x*F-c Y | 325 | 184 | 55 | 65 | Φ90 | Φ140 | 120 | 70 | 160 | 130 | 100 | 81 | 15.5 | Φ102 | |||
TF-800x*F-c Y | 385 | ||||||||||||||||
TF-1000x*F-c Y | 485 | ||||||||||||||||
TF-1300x*F-c Y | 680 | ||||||||||||||||
注：本产品所需的出油口法兰，安装连接螺栓及密封垫圈等配件均和本产品配套提供，用户只需准备好ΦQ的管子焊上即可。发讯器连接口为M18x1.5不需带发讯器者可提供丝堵.
Note: The oil outlet flange, mounting bolts, sealing washers and other accessories required by this product are provided together with this product. Users only need to be prepared Φ The pipe of Q can be welded. The connector of the transmitter is M18x1.5. If the transmitter is not required, the plug can be provided

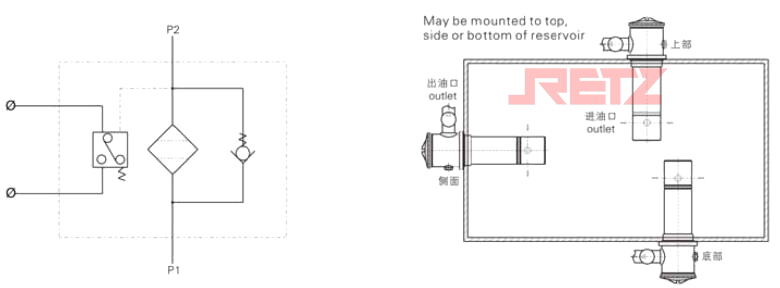

安装示意图 installation diagram
