(RFA)微型直回式回油过滤器

(RFA)进口微型直回式回油过滤器安装在油箱顶部，简体部分浸入油箱内，并设置夯通阀，扩散器，泡芯污染场塞发汛圈等装置，具有结构紧凑，安装方便、通油能力大、压力损失小、更换滤芯方便等特点 (RFA) The imported micro direct return oil filter is installed on the top of the oil tank, and the simple part is immersed in the oil tank. It is also equipped with tamper valve, diffuser, bubble core pollution field plug flood ring and other devices. It is characterized by compact structure, convenient installation, large oil passing capacity, small pressure loss, and convenient filter element replacement

性能特点 Performance characteristics

1、安装连接方便，简化系统管路：直接安装在油箱盖板上，过滤器头露在油箱外，回油筒体浸入油箱内，进油口设有管式与法兰式连接，从而简化了系统管路，使系统布置较为紧凑，安装连接更方便 Convenient installation and connection, simplified system pipeline: it is directly installed on the cover plate of the oil tank, the filter head is exposed outside the oil tank, the oil return cylinder is immersed in the oil tank, and the oil inlet is equipped with pipe type and flange type connections, thus simplifying the system pipeline, making the system layout more compact, and the installation and connection more convenient

2、设置滤芯污染发讯器，油路旁通阀，提高液压系统的可靠性：当滤芯被污染物堵塞或系统液温过低，流量脉动等因素造成进油压力为0.35 MPa时，发讯装置便发出讯号指示。应及时更换滤芯或提高油液温度。如此时不能马上停机处理这些故障时，设在滤芯下部的旁通阀自动开启工作（旁通阀开启压力为0.4MP a），以保护过滤器及液压系统正常工作 Set filter element pollution transmitter and oil circuit bypass valve to improve the reliability of the hydraulic system: when the filter element is blocked by pollutants or the system liquid temperature is too low, flow pulsation and other factors cause the oil inlet pressure to be 0.35 MPa, the transmitter will send a signal indication. Replace the filter element or raise the oil temperature in time. If the machine cannot be stopped immediately to deal with these faults, the bypass valve at the lower part of the filter element will automatically open (the opening pressure of the bypass valve is 0.4MP a) to protect the normal operation of the filter and hydraulic system

3、设计采用直回滤油，使更换滤芯或油箱加油非常方便：只需旋开过滤器滤盖（清洗盖）即可更换滤芯或向油箱加油，并在滤头设有2只M18×1.5油口，可在任何一方安装发讯器或系统中少量油液回流油箱过滤之用 The direct return oil filter is designed to make it very convenient to replace the filter element or add oil to the oil tank: just unscrew the filter cover (cleaning cover) of the filter to replace the filter element or add oil to the oil tank, and there are two M18s in the filter head × 1.5 Oil port, which can be installed at either side of the transmitter or used for filtering a small amount of oil in the system back to the oil tank

4、具有液流扩散器；扩散器设置在回油筒体底部，能使回油的介质平稳地流入油箱内，不易产生气泡，从而减少空气重新进入，并减弱已沉积的污染物骚动 With liquid flow diffuser; The diffuser is set at the bottom of the oil return cylinder, which can make the oil return medium flow smoothly into the oil tank, and is not easy to generate bubbles, thus reducing the re-entry of air and reducing the disturbance of deposited pollutants

5、滤芯采用玻璃纤维过滤材质：具有过滤精度高，通油能力大，原始压力损失小，纳污量大等优点.其过滤精度以对过滤精度标定，过滤比β3，5.10.20，过滤效率n≥99%，符合ISO标准 The filter element is made of glass fiber filter material, which has the advantages of high filtering accuracy, large oil passing capacity, small original pressure loss, large dirt holding capacity, etc. Its filtering accuracy is calibrated with absolute filtering accuracy, and the filtering ratio is β 3, 5.10.20, filtration efficiency n ≥ 99%, in line with ISO standard

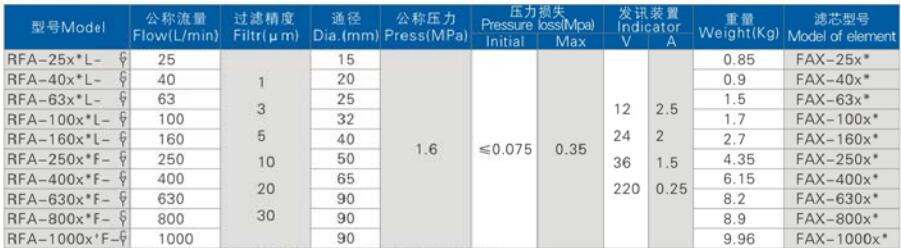

技术参数 Technical paramete

注:*为过滤精度,若使用介质为水一乙二醇,公称流量400L/Min,过滤精度80um,带ZKF-II发讯器,则过滤器型号为CFF·BH-515x80,滤芯型号为FX·BH-515x80。

Note: *retz  is the filter precision. If the medium is water glycol, the nominal flow is 400L/Min, the filter precision is 80um, and the ZKF-II transmitter is provided, the filter model is CFF · BH-515x80, and the filter element model is FX · BH-515x80.

滤芯压差流量曲线 ELEMENTPRESSUREDROP(△P)AGAINSTFLOWCURVES

滤芯FAX-※×※（由试验测得数据）Q-△P曲线油液粘度Viscosity 30CST

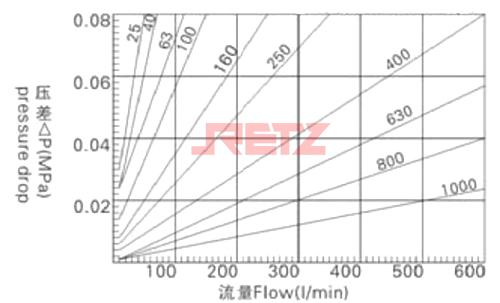

过滤精度 Filtation 5um

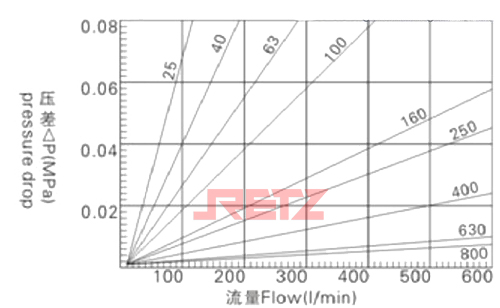

过滤精度 Filtation 10um

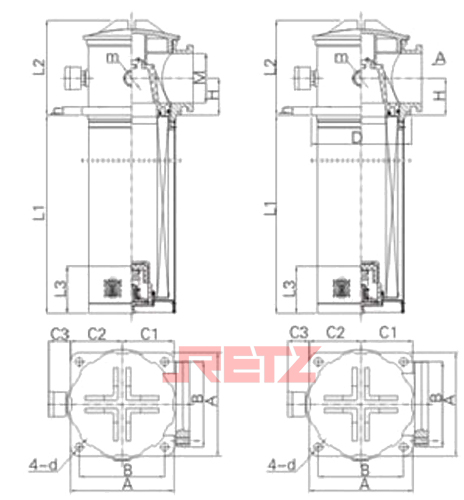

外型尺寸 Overall dimensions

1、管式（进油口螺纹连接）Threaded connection

2、法兰式（进油口法兰连接）Flanged Connection

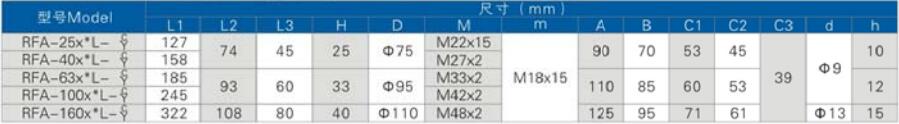

RFA-25~160管式连接尺寸Table1：RFA-25~160 threaded connectiona

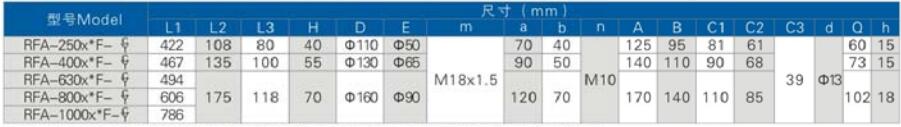

RFA-250~800法兰式连接尺寸Table2：RFA-250~800flanged connection

注：1）本产品所需的进油口法兰盘安装连接螺栓及密封圈等配件均和本产品配套提供用户只需准备好￠Q的管子焊上即可 The oil inlet flange mounting bolts, sealing rings and other accessories required by this product are all matched with this product. Users only need to prepare ￠ Q pipes for welding

      2）2-m为M18×1.5螺孔，可在任何一面安装发讯器或作小回油孔之用，并配装丝堵 2-m is M18 × 1.5 Screw hole, which can be used for installing transmitter or small oil return hole on any side, and equipped with screw plug

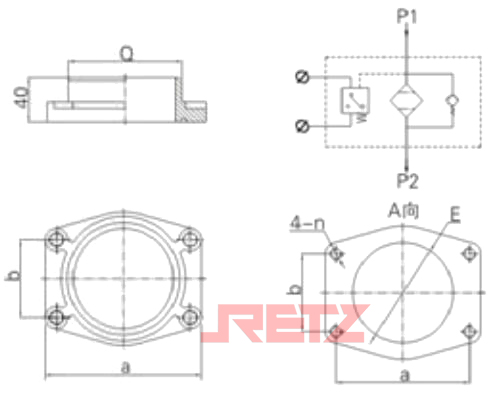

配对法兰外形尺寸

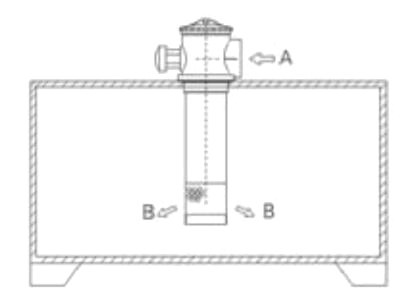

安装示意图 installation diagram
