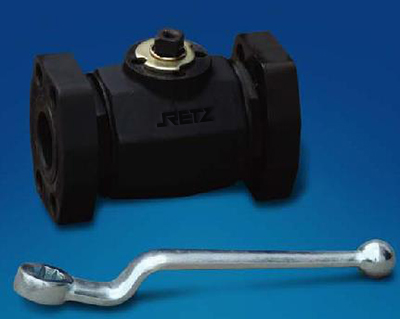

(KHBG，KHMG-F)SAE螺旋式高压球阀

(KHBG，KHMG-F)进口SAE螺旋式高压球阀用来截断工作介质的正反向流动，旋转控制芯轴使球体从开启位置切换到关闭位置，系统压力将球体推向密封碗的无压侧并无泄漏地切断液流 retz品牌 (KHBG，KHMG-F) imported SAE screw type high pressure ball valve is used to cut off the positive and negative flow of working medium, rotate the control spindle to switch the ball from the open position to the closed position, and the system pressure pushes the ball to the non pressure side of the sealing bowl to cut off the liquid flow without leakage

安装位置：任选；流向：任选 Installation position: optional; Flow direction: optional

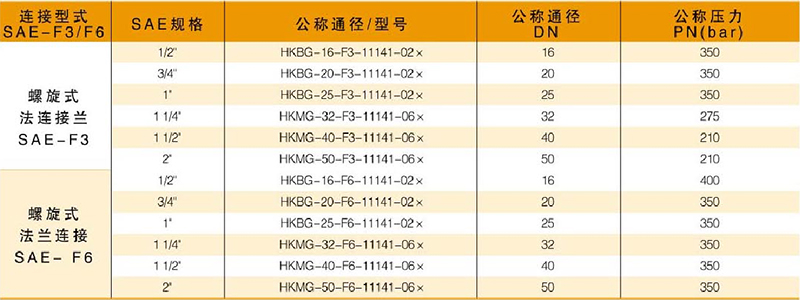

有两种不同的类型：

阀块型（KHBG-DN16/25 ）

袖套型（KHMG-DN32/50）

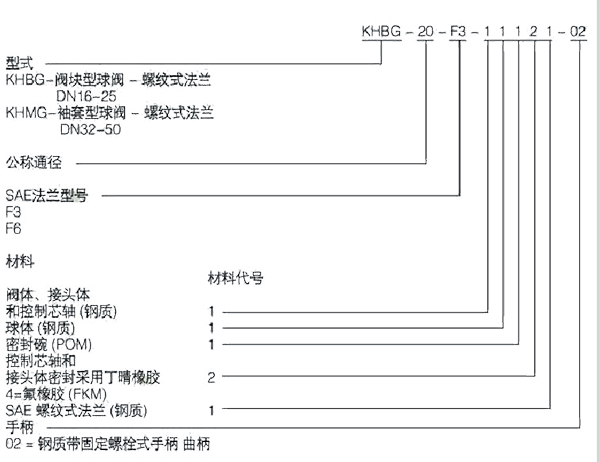

型号说明 Model description

结构特点 Structural characteristics

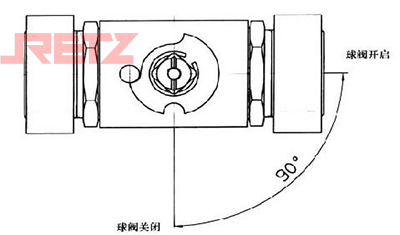

通过控制手柄芯轴上的指示槽位观察开关位置 Observe the switch position through the indication slot on the control handle spindle

通过限位销和限位垫限定开关位置 Limit switch position through limit pin and limit pad

无泄漏，不需要手工重调密封件 No leakage, no need to manually readjust the seal

采用浮球式密封原理，双侧密封 The floating ball sealing principle is adopted, with double side sealing

全流量通流便于介质的无阻尼流动 Full flow passage facilitates undamped flow of medium

可旋转的SAE螺纹式法兰 Rotatable SAE threaded flange

A .阀体  B.接头体  C.控制芯轴  D.球体  E.定位销  F.限位垫  G.挡环  H.螺纹式法兰

A. Valve body B. Connector body C. Control spindle D. Sphere E. Locating pin F. Limit gasket G. Retaining ring H. Threaded flange

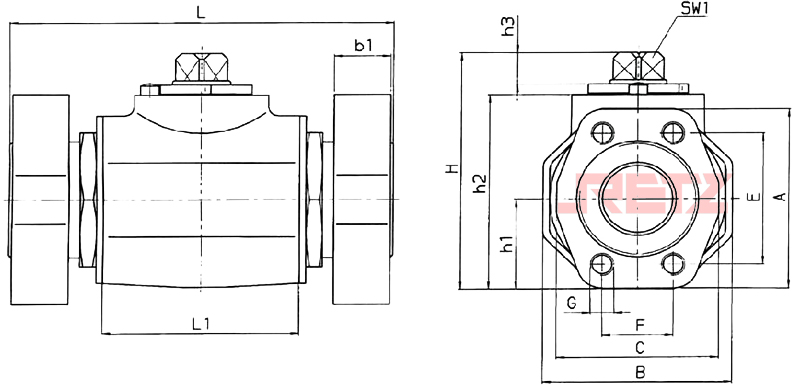

外形尺寸 Overall dimensions

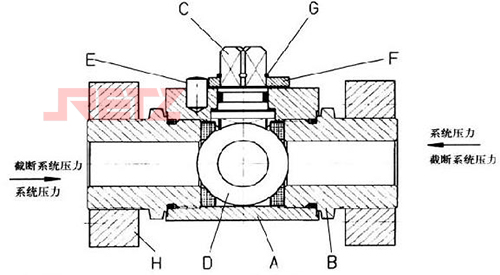

KHBG结构图

KHMG结构图

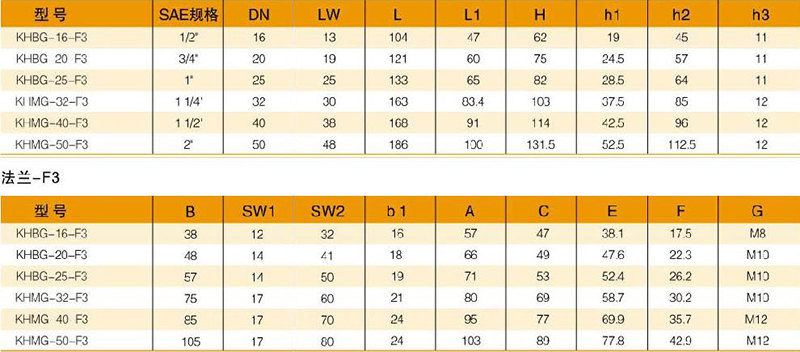

KHBG-F3;KHMG-F3尺寸

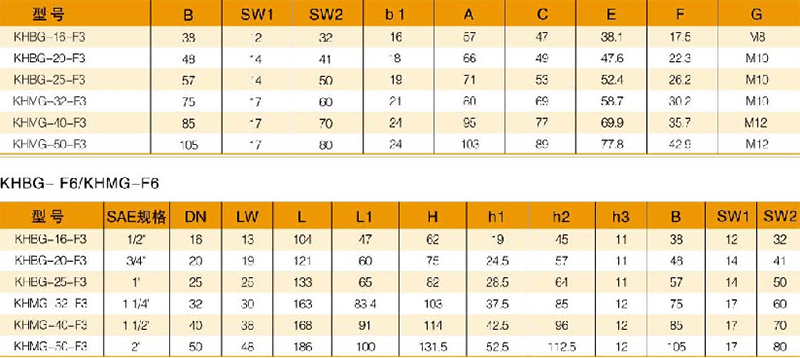

KHBG-F6;KHMG-F6尺寸

注释：球阀不是设计为流量控制阀，因此要么全开要么全闭以免损坏密封 Note: The ball valve is not designed as a flow control valve, so it is either fully open or fully closed to avoid damaging the seal

为确保工作正确，必须满足要求的压力和温度参数 To ensure correct operation, the required pressure and temperature parameters must be met
