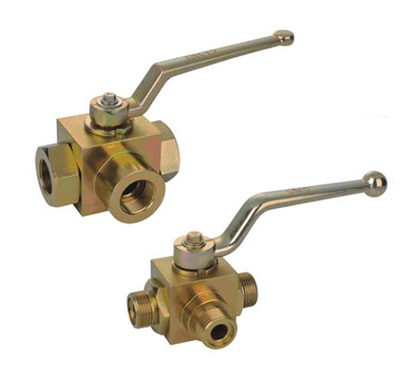

(KHB3K)二位三通高压球阀

功能原理 Functional principle

(KHB3K)进口二位三通高压球阀旋转控制芯轴使液流按球口形状换向，同时无泄漏地截断对立的一侧。系统压力把球体推向密封的无压侧。球体无泄漏地截断从接口1到接口2或3的液流。当流向从接口2或3到接口1时，会有少许泄漏，但取决于压力。转向过程中三个接口互相连接。retz品牌 (KHB3K) The imported two position three-way high pressure ball valve rotates the control spindle to make the liquid flow reverse according to the shape of the ball mouth, while cutting off the opposite side without leakage. The system pressure pushes the ball towards the non pressure side of the seal. The ball can cut off the liquid flow from interface 1 to interface 2 or 3 without leakage. When the flow direction is from interface 2 or 3 to interface 1, there will be a little leakage, but it depends on the pressure. The three interfaces are connected to each other during steering.

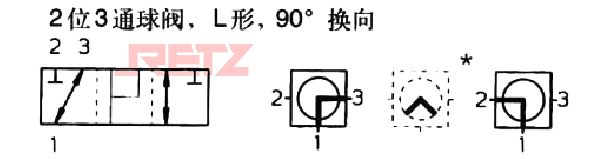

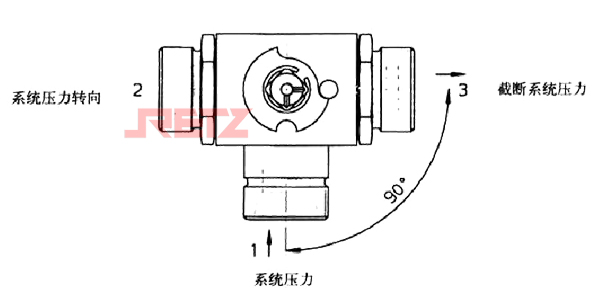

功能示意图 Function Diagram

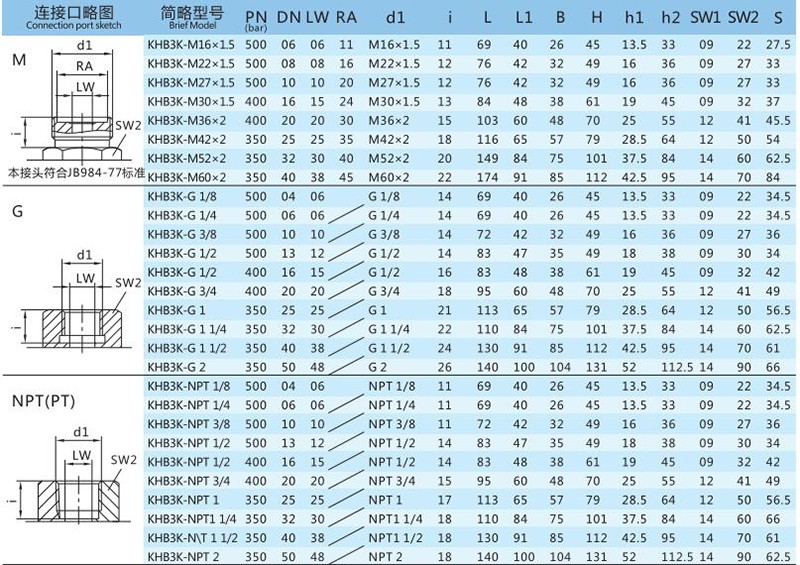

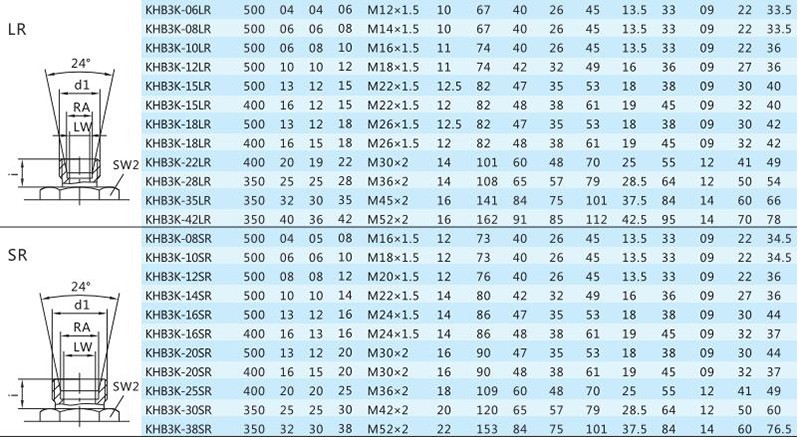

型号说明 Model description

结构特点 Structural characteristics

通过控制手柄芯轴上的指示槽位观察开关位置 Observe the switch position through the indication slot on the control handle spindle

通过限位销和限位垫限定开关位置 Limit switch position through limit pin and limit pad

无泄漏，不需要手工重调密封件 No leakage, no need to manually readjust the seal

全流量通流便于介质的无阻尼流动 Full flow passage facilitates undamped flow of medium

控制芯轴密封上设有支撑环 The control spindle seal is provided with a support ring

采用浮球式密封原理，在出口侧密封 Adopt the floating ball sealing principle to seal at the outlet side

可提供不锈钢材质球阀 Stainless steel ball valve available

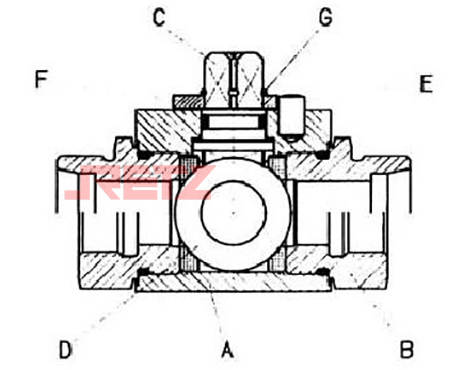

A .阀体  B.接头体  C.控制芯轴  D.球体  E.紧定螺钉  F.限位垫  G.挡环

A. Valve body B. Connector body C. Control spindle D. Sphere E. Locating pin F. Limit gasket G. Retaining ring

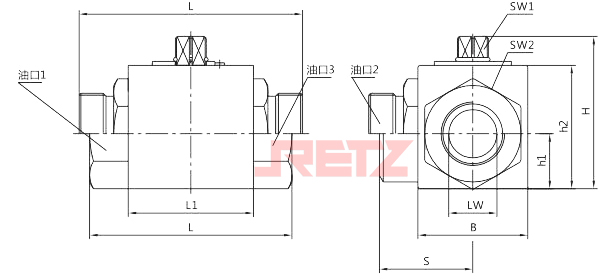

外形尺寸 Overall dimensions

注释：球阀不是设计为流量控制阀，因此要么全开要么全闭以免损坏密封 Note: The ball valve is not designed as a flow control valve, so it is either fully open or fully closed to avoid damaging the seal

为确保工作正确，必须满足要求的压力和温度参数 To ensure correct operation, the required pressure and temperature parameters must be met
