(HXM)浸没式汽水混合加热器

(HXM)进口浸没式汽水混合加热器 慨述 Express with regret

浸没式汽水混合加热器是一种新型、有效的汽水加热器，生水加热器它将蒸汽直接导入水中，迅速高效地加热水。生水加热器由于采用全新的消声结构，噪声降低至50dB以下,解决了传统加热方式的费用高、噪声大、工作不稳定的难题。并且可以与温度控制、水位控制联动，成为全自动运行的热水制备系统。HX消音加热器加热器非常适用于水箱热水加热、污水加热，成本低，稳定可靠 retz品牌 The submerged steam water mixed heater is a new and effective steam water heater. The raw water heater directly introduces steam into water to heat water quickly and efficiently. The noise of the raw water heater is reduced to below 50dB due to the new noise elimination structure, which solves the problems of high cost, high noise and unstable operation of the traditional heating method. And it can be linked with temperature control and water level control to become a fully automatic hot water preparation system. HX silencing heater heater is very suitable for water tank hot water heating, sewage heating, low cost, stable and reliable

结构 Structure

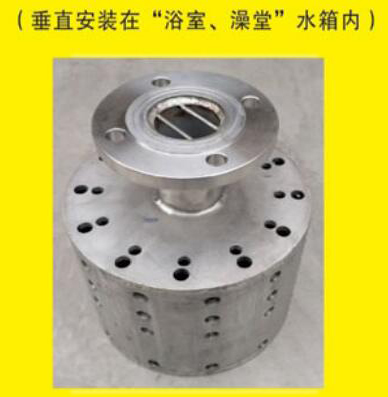

采用全不锈钢结构。内芯壁上斜孔为偏心、向上顷斜形式，蒸汽从斜孔中喷出，推动水在壳体内盘旋上升旋转。一方面蒸汽汽水混合效果大大提高，另一方面，旋转水流可吸收蒸汽动能，消除噪声；同时，被加热的水不断从壳体表面引出，带动加热器周围的水流动，加热水箱中的水 All stainless steel structure is adopted. The inclined hole on the inner core wall is eccentric and upward inclined, and steam is ejected from the inclined hole to drive the water to spiral up and rotate in the shell. On the one hand, the mixing effect of steam and water is greatly improved; on the other hand, the rotating water flow can absorb steam kinetic energy and eliminate noise; At the same time, the heated water is constantly led out from the shell surface to drive the water around the heater to flow and heat the water in the water tank

特点 Characteristic

浸没式汽水混合器相当于把蒸汽直接喷入水中，但克服了噪声大、加热不稳定、冷热水分区等根本缺陷 Immersed steam water mixer is equivalent to directly injecting steam into water, but it overcomes the fundamental defects of high noise, unstable heating, cold and hot water partition, etc

1、静音、无振动：浸没式加热器采用内部旋流消声结构，噪声低于50dB Silent and vibration free: the immersion heater adopts an internal swirl noise elimination structure, and the noise is lower than 50dB

2、热效率高：蒸汽直接通入水中，无冷凝水所带走的热量损失，热效率99%  High thermal efficiency: steam flows directly into water without heat loss taken away by condensate, with thermal efficiency of 99%

3、投资省：浸没式汽水加热器价格远低于壳管式换热器，在热水箱设置位置高时，可省却热水泵 Investment saving: the price of the submerged steam water heater is far lower than that of the shell and tube heat exchanger. When the hot water tank is set high, the hot water pump can be saved

4、重复加热：浸没式汽水混合器采用汽水分开控制，重复加热水箱中的水，无需放干箱内余水 Repeated heating: the submerged steam water mixer is controlled separately by steam and water, and the water in the water tank is heated repeatedly without draining the remaining water in the tank

5、安装维护简便：浸没式加热器外形尺寸小 Simple installation and maintenance: the immersion heater has a small overall dimension

系统图 System diagram

安装使用 Installation and use
