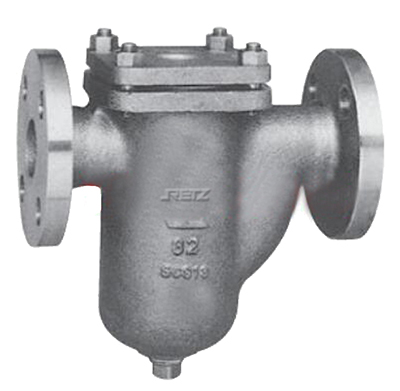

U型过滤器 除污器

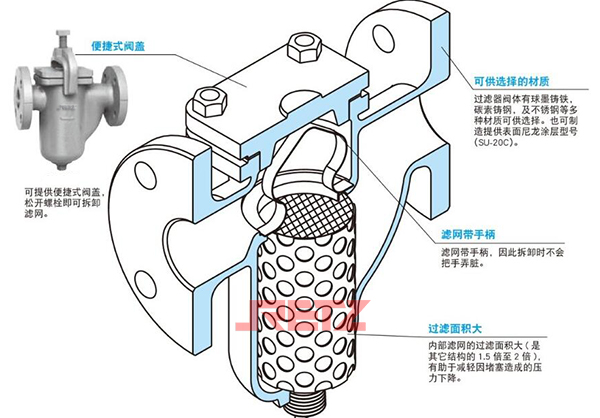

进口U型过滤器工作原理 Operating principle of imported U-shaped filter

1.U型过滤器有法兰、内螺纹和焊接等连接方式,是管道输送液体过程中清除固体杂质的设备 U-shaped filter has flange, internal thread, welding and other connection modes, and is the equipment for removing solid impurities in the process of pipeline liquid transmission

2.通常安装在设备的入口端，当流体进入置滤网的滤筒后，其杂质被阻挡，而清洁的滤液则由过滤器出口排出，当需要清洗时，只要将可拆卸的滤筒取出，处理后重新装入即可 It is usually installed at the inlet end of the equipment. When the fluid enters the filter cartridge with the filter screen, its impurities are blocked, and the clean filtrate is discharged from the filter outlet. When cleaning is needed, just take out the removable filter cartridge, and then reload it after treatment

3.压力损失小,流通面积大，抗污性强，排污方便，排污方便 Small pressure loss, large circulation area, strong anti-pollution, convenient sewage discharge and convenient sewage discharge

4.U型过滤器为整体式阀体设计、可更换过滤内件、多种过滤结构设计、滤网精度18-300目可选、常规30目设计、双排放接口、排污方便 The U-shaped filter is designed with integral valve body, replaceable filter internals, various filter structure designs, filter screen accuracy of 18-300 mesh optional, conventional 30-mesh design, double drain interface, and convenient drainage

进口U型过滤器技术参数 Technical parameters of imported U-shaped filter
