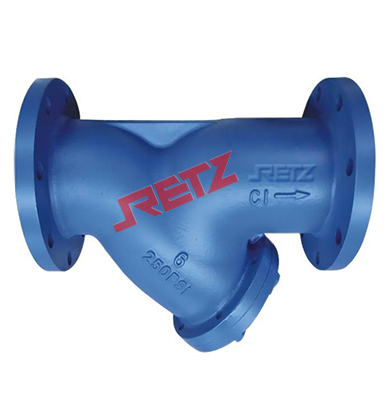

(除污器)导热油 蒸汽过滤器

主要性能 Main performance

(除污器)进口导热油，蒸汽过滤器是用来消除介质中的杂质，能有效保护阀门及设备的正常使用 Heat transfer oil and steam filter are used to eliminate impurities in the medium and effectively protect the normal use of valves and equipment

设计标准∶EN12516、GB/T12224、DIN3356

结构长度∶EN558、GB/T12221、DIN3202

连接法兰∶EN1092-1、GB/T9113、DIN2543-2546

试验和检验∶EN12266、GB/T26480、DIN3230

规格尺寸：F1/2-12"(法兰连接) Specification and size: F1 / 2-12 "(flange connection)

公称压力：16-40Bar Nominal pressure: 16-40bar

介质温度：-29-350℃  Medium temperature: - 29-350 ℃

过滤网目数：水介质20-40、 气介质40-300、 油介质10-200

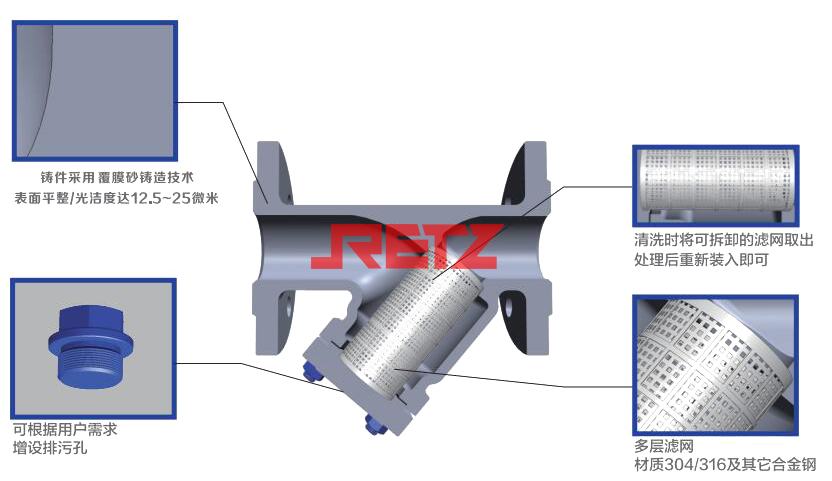

(除污器)进口导热油，蒸汽过滤器特点∶ Performance characteristics

双层不锈钢滤网，杂质过滤更彻底，耐腐蚀性更好 Double layer stainless steel filter screen, more complete impurity filtration and better corrosion resistance

当需要清洗时，只要将可拆卸的，滤网取出，处理后重新装入即可，维护极为方便RETZ When cleaning is required, the removable filter screen can be taken out and reinstalled after treatment, which is extremely convenient for maintenance

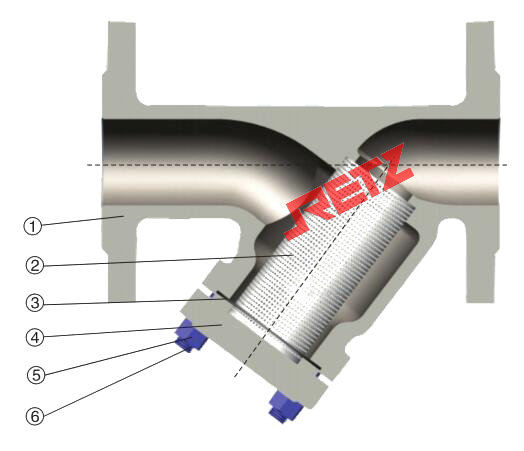

主要零件材料 Main parts and materials

应用行业 Application industry

不同的材质和阀门类型适用于各种不同的工况环境，用户应当根据介质的性能、温度、压力、流速、流量等特性结合工艺、操作、安全等诸多因素，选用相应类型、结构形式、型号规格的阀门

Different materials and valve types are applicable to different working conditions. Users should select valves of corresponding types, structural forms, models and specifications according to the characteristics of medium such as performance, temperature, pressure, flow rate and flow, combined with many factors such as process, operation and safety

保护疏水设备正常使用

保护蒸汽减温减压系统正常使用
