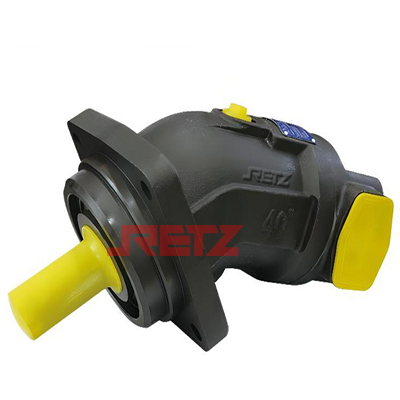

(RDA2FM)定量柱塞马达

(RDA2FM)进口定量柱塞马达 产品特点 Product features

油口A或B的最高压力,额定压力可达40MPa， 峰值压力可达45MPa The maximum pressure of oil port a or B, the rated pressure can reach 40MPa, and the peak pressure can reach 45MPa

开式和闭式回路，规格10...180 Open and closed circuits, specifications 10... 180

流动方向:顺时针旋转A到B,逆时针旋转B到A Flow direction: clockwise rotation a to B, counterclockwise rotation B to a

输出转速与输入流量成正比而与排量成反比  The output speed is proportional to the input flow and inversely proportional to the displacement

驱动扭矩随马达的高压侧和低压侧的压降加大而增大  The driving torque increases with the increase of the pressure drop on the high-pressure side and low-pressure side of the motor

仔细选择所提供的排量.其规格可与各实际应用情况匹配  Carefully select the displacement provided. Its specification can match the actual application

良好的功率/重量比  Good power / weight ratio

整体锥形柱塞带有用于密封的活塞环  Integral tapered plunger with piston rings for sealing

工作粘度范围 Working viscosity range

液压油，矿物油 Hydraulic oil, mineral oil

为了获得最佳效率和使用寿命.我们推荐工作粘度（在工作温度下）在以下范围内选择∶In order to obtain the best efficiency and service life, we recommend that the working viscosity (at the working temperature) be selected in the following range:

Vopt=最佳工作粘度16..36mm2/S  Vopt= optimum working viscosity 16..36mm2/S

闭式回路中针对回路温度.开式回路中针对油箱温度 For circuit temperature in closed circuit. For oil tank temperature in open circuit

油液的过滤 Filtration of oil

油液过滤得越干净.油液的清洁度越好.轴向柱塞元件的使用寿命也就越长。为了保证元件的正常工作 最低的清洁度等级是retz品牌∶NAS 1638，9级或 ISO/DIS 4406，18/15级  The cleaner the oil is filtered, the cleaner the oil is The longer the service life of the axial piston element. In order to ensure the normal operation of components, the minimum cleanliness level is NAS 1638, level 9 or iso/dis 4406, level 18/15

油液温度很高时.清洁度等级至少应为∶NAS 1638，8级或 ISO/DIS 4406，17/14级  When the oil temperature is very high The cleanliness grade shall be at least NAS 1638, Grade 8 or iso/dis 4406, grade 17/14

转速范围 Speed range

最低转速n min没有限制,在需要平稳运行的  There is no limit on the minimum speed of N min, when it needs to run smoothly

场合最低转速n min不能低于50rpm。最高转速风工作参数  The minimum speed n min of the occasion shall not be lower than 50rpm. Working parameters of maximum speed wind

(RDA2FM)进口定量柱塞马达 数据值（理论值）
