气体超声波流量计

简要描述:RETZ进口气体超声波流量计其关键零部件全部采用原装配件,具有可靠性高、使用寿命长等特点。是一种高精度、高可靠性的新型精密计量仪表

  • 品牌:RETZ
  • 工况条件:流体测控
  • 温度/压力:P-T: 16bar@80℃
  • 更新时间:2023/04/01
产品详情 在线咨询

进口气体超声波流量计产品用途 Product use进口气体超声波流量计2.jpg

采用复用双声道(DN25-DN-80)和复用六声道(DN100-DN200)设计,可以消除涡流和不对称流影响,复用声道增加冗余备份声道,提高系统的可靠性。广泛用用于城市燃气、石油、化工、电力、冶金等行业气体的流量计量

The unique design of multiplexed dual channel (DN25-DN-80) and multiplexed six channel (DN100-DN200) can eliminate the impact of eddy current and asymmetric flow. The multiplexed channel adds redundant backup channels and improves system reliability. Widely used for gas flow measurement in urban gas, petroleum, chemical, electric power, metallurgy, and other industries


主要特点 Main features

1.无压力损失,量程比宽,超低始动流量 No pressure loss, wide range ratio, ultra-low starting flow

2.无任何可动部件,故障率少,寿命长 No movable parts, low failure rate, long service life

3.耐污性强,长期使用精度不变,无需定期维护 Strong stain resistance, constant accuracy for long-term use, and no need for regular maintenance

4.复用双声道、六声道测量,采用数字相关算法,精度高,抗干扰性能强 Multiplexing dual channel and six channel 进口气体超声波流量计3.jpgmeasurements using digital correlation algorithms, high accuracy, and strong anti-interference performance

5.集流量、温度、压力测量于一体,可自动进行温压补偿和压缩因子修正运算 Integrating flow, temperature, and pressure measurements, it can automatically perform temperature and pressure compensation and compression factor correction operations

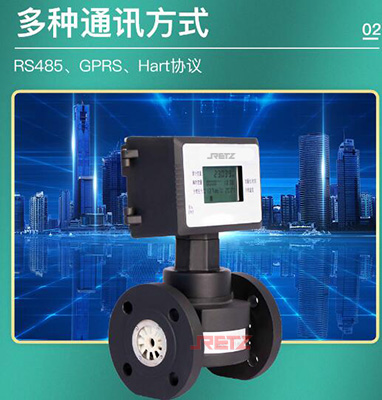

6.仪表有脉冲信号输出、4-20mA模拟信号输出、RS485 (MODBUS-RTU协议)通讯输出;同时支持IC卡信号输出,可与IC卡预付费系统配套使用,便于贸易结算 The instrument has pulse signal output, 4-20mA analog signal output, and RS485 (MODBUS-RTU protocol) communication output; At the same time, it supports IC card signal output and can be used in conjunction with the IC card prepaid system to facilitate trade settlement

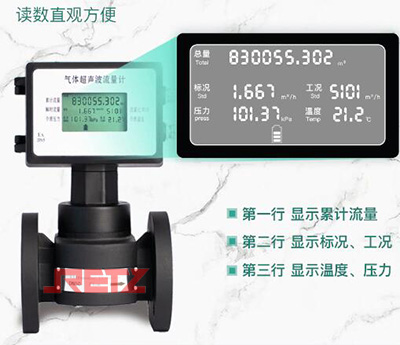

7.专用液晶显示屏,读数直观方便,可同时显示标况瞬时流量、工况瞬时流量、标况累积流量、介质温度、介质压力、输出电流等参数 Special LCD display screen, intuitive and convenient reading, can simultaneously display parameters such as standard instantaneous flow, working instantaneous flow, standard cumulative flow, medium temperature, medium pressure, output current, etc

8.具有实时数据存储功能,可防止仪表突然掉电导致的数据丢失,在停电状态下,可长久保存 With real-time data storage function, it can prevent data loss caused by sudden power failure of the instrument, and can be stored for a long time in case of power failure


技术参数 Technical parameter

精度等级       ±1.0%级别

量程比

1:40

仪表材质       表体:304不锈钢或铸铝

被测介质

无杂质、中低流速气体

防护等级       IP65

工作电源

A.内电源:13.6VDC锂电池
B.外电源:5~24VDC,纹波≤±50mV

使用条件       环境温度: -20~+60℃;相对湿度:5%~95%;介质温度: -30~+80℃;大气压力:70kPa~106kPa

常规耐压等级

1.6MPa

信号输出       脉冲信号、4-20mA电流信号

通讯输出

RS485通讯

实时记录       日记录、定时间间隔记录

防爆等级

Exib IIC T6 Gb

型号规格

公称通径
DNmm

始动流量
m³/h

量程比

流量范围
  m³/h

计量准确度范围
(m³/h)

压力等级

(m³/h)

±1.5%

±1.0%

RS-KC25

25

0.02

1:40

1~40

1~4

5~40

1.6MPa
2.5MPa

RS-KC-40

40

0.05

1:50

2~100

2~10

11~100

RS-KC-50

40

0.07

1:40

4~160

4~12

13~160

RS-KC-80

80

0.10

1:62.5

8~500

8~20

21~500

RS-KC-100

100

0.20

1:90

10~650

10~32

33~650

RS-KC-150

150

0.40

1:125

16~1600

16~150

151~1600

RS-KC-200

200

0.50

1:110

20~2500

20~200

201~2500
