液体超声波流量计

简要描述:RETZ进口液体超声波流量计采用时差法测量原理,运用高可靠性的信号处理电路,经过采样、计算、修正等复杂算法实现流速的测量

  • 品牌:RETZ
  • 工况条件:流体测控
  • 温度/压力:P-T: 40bar@80℃
  • 更新时间:2023/04/01
产品详情 在线咨询

进口液体超声波流量计产品用途 Product use进口液体超声波流量计2.jpg

超声波在管道中的传播时间受管道中的流速的影响,逆流传播时间比顺流传播时间要长,且传播时间差与流速成正比。可测介质包括水、废水、油类等均匀稳定液体,应用领域包括给水排水、石油化工、供暖发电、造纸冶金、食品医药等诸多行业,能满足大部分工业现场对液体流量的准确测量与监控的需求。

The propagation time of ultrasonic waves in the pipeline is influenced by the flow velocity in the pipeline. The propagation time in the upstream direction is longer than that in the downstream direction, and the propagation time difference is proportional to the flow velocity. The measurable media include uniformly stable liquids such as water, wastewater, and oils, and their application fields include water supply and drainage, petrochemical industry, heating and power generation, papermaking and metallurgy, and food and pharmaceutical industries. They can meet the needs of most industrial sites for accurate measurement and monitoring of liquid flow.


主要特点 Main features

1.双声道测量精度可达±0.5%,重复性精度优于±0.1%  The accuracy of dual channel measurement can reach ± 0.5%, and 进口液体超声波流量计3.jpgthe repeatability accuracy is better than ± 0.1%

2.全焊接弹压可在线拆装式探头结构,密封性能优异,防护等级IP68 Fully welded elastic pressure online detachable probe structure, excellent sealing performance, and protection level of IP68

3.特别的信号发射与接收电路,防错波检测技术,提供可靠的信号检测RETZ  Unique signal transmitting and receiving circuit, error proofing detection technology, providing reliable signal detection

4.系统输出包括脉冲输出、开关量报警输出、4~20mA电流输出等多种方式,适应不同工况要求 The system output includes pulse output, switching value alarm output, 4~20mA current output, and other methods to adapt to different working conditions

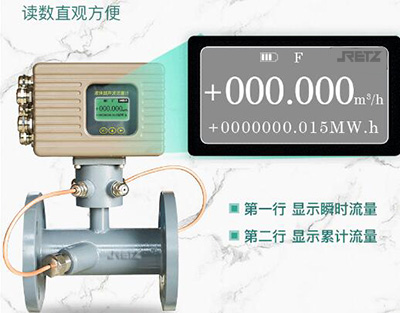

5.128×64点阵式液晶显示屏,层级式菜单结构,显示内容丰富,可通过按键或通讯进行实时仪表参数设置 one hundred and twenty-eight × 64 dot matrix LCD screen, hierarchical menu structure, rich display content, and real-time instrument parameter setting through keys or communication


技术参数 Technical parameter

技术参数

单声道

双声道

DN50~DN300

DN100~DN1000

流速范围            0.01m/s10m/s

精度等级

±1.0%

±1.0%,±0.5%

4.0MPa(DN50~DN80)

2.5MPa(DN100~DN500)

压力等级

2.5MPa(DN50~DN300)

2.5MPa(DN100~DN500)

1.6MPa(DN50~DN300)

1.6MPa(DN100~DN1000)

1.0MPa(DN50~DN300)

1.0MPa(DN100~DN1000)

介质温度

介质温度+2℃~+60°℃/+2℃~+160℃;环境温度-20℃~+60℃

防护等级            IP68(传感器)IP67(转换器)

供电方式

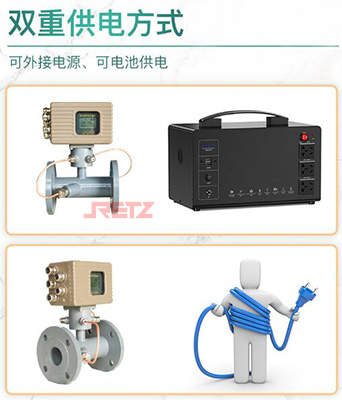

主电源:220VAC24VDC可选,备用电池:3.6V DC19Ah可用6

安装方式            一体式、分体式

管段材质

碳钢、304不锈钢、316L不锈钢

输出                隔离4~20mA电流输出(无源),标配。

通讯

Modbus-RTU

防爆                隔爆

型号、通径DN(mm)

最大流量(m³/h)

最小流量(m³/h)

切除值
(m³/h)

脉冲当量
(L/P)

RT-KLZ50

47.25

0.15

0.075

0.2

RT-KLZ65

75.6

0.25

0.125

0.5

RT-KLZ80

126

0.4

0.2

0.5

RT-KLZ100

252

0.6

0.3

      1

RT-KLZ125

420

         1

0.5

      2

RT-KLZ150

588

1.5

0.75

      2

RT-KLZ200

945

2.5

1.25

      5

RT-KLZ250

1470

           4

2

      5

RT-KLZ300

2205

5.6

2.8

      10

RT-KLZ350

2940

7.5

3.75

10

RT-KLZ400

3780

9.5

4.75

20

RT-KLZ450

4784

12


20

RT-KLZ500

5775

14.75

7.375

20

RT-KLZ600

8400

21.5

10.75

50

RT-KLZ700

11340

29

14.5

50

RT-KLZ800

14910

38

19

50

RT-KLZ900

21000

50

25

100

RT-KLZ1000

25200

60

30

100
