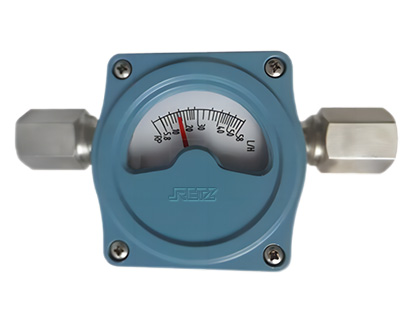

微小流量金属管浮子流量计

简要描述:RETZ进口微小流量金属管浮子流量计是基于浮子位置测量的一种变面积流量仪表,全新的设计使微小流量的测量成为可能。特别适合液体和气体微小流量的测量

  • 品牌:RETZ
  • 工况条件:流体测控
  • 温度/压力:P-T: 25bar@20℃
  • 更新时间:2023/04/01
产品详情 在线咨询

进口微小流量金属管浮子流量计 产品用途 Product use

微小型金属管浮子流量计远传部分采用了无接触无磁滞检测磁场角度变化的磁测传感器、并配以高性能MCU,两线制 进口微小流量金属管浮子流量计2.jpg4~20mA远传输出,可通过上位机软件对流量计进行线性校正等参数设置。该型智能信号变送器具有很高的精度和可靠性,可以取代进口同类型仪表。

The remote transmission part of the micro metal tube float flowmeter adopts the internationally advanced non-contact and non magnetic hysteresis magnetic sensor to detect changes in magnetic field angle, and is equipped with a high-performance MCU. The two-wire system has a 4-20mA remote transmission output. Parameters such as linear correction of the flowmeter can be set through upper computer software. This type of intelligent signal transmitter has high accuracy and reliability, and can completely replace imported instruments of the same type.

广泛应用于各行业复杂、恶劣环境下、对微小流量、低流速、各种苛刻介质条件的流量测量与过程控制,特别适合测量混浊,不透明或腐蚀性流体,针对不同的用户需求、不同场合

Widely used in various industries in complex and harsh environments, for flow measurement and process control of small flows, low flow rates, and various harsh media conditions, it is particularly suitable for measuring turbid, opaque, or corrosive fluids, targeting different user needs and different occasions


主要特点 Main features

采用全金属结构,具有体积小、压损小、量程比大(10:1)Adopt all-metal structure, with small volume, small pressure loss, and large range ratio (10:1)

有多种测量形式供用户可选;按输出形式分有就地指示型、远传输出型 There are various measurement forms for users to choose from; According to the output form, there are local indication type and remote output type

按防爆要求分类,又可分为普通型、本质安全型两种 Classified according to explosion-proof requirements, it can also be divided into two types: ordinary type and intrinsically safe type


技术参数 Technical parameter

测量范围

介质温度: -40℃~150℃

20℃   6L/h-100L/h

环境温度: -25℃~65℃

空气:20℃  101325pa   50L/h-3400L/h

连接尺寸:1/4NPT内螺纹或卡套连接φ8配管(φ6)

范围度:  10:15:1

材质:基座:不锈钢

准确度:4%Fs

指示器外壳:铸铝、注塑

非常大压力:2.5Mpa(根据需要可增加)

锥体浮子:不锈钢

型号

(L/h)

空气(L/h)

压力损失(Kpa)

RJ-HW01


50

1.2

RJ-HW02


100

1.4

RJ-HWO3

6

150

1.5

RJ-HW04

10

400

1.8

RJ-HW05

25

800

3.5

RJ-HW06

40

1250

6.5

RJ-HW07

60

2000

13.0

RJ-HW08

80

2500

23.5

RJ-HW09

100

3400

40.0
