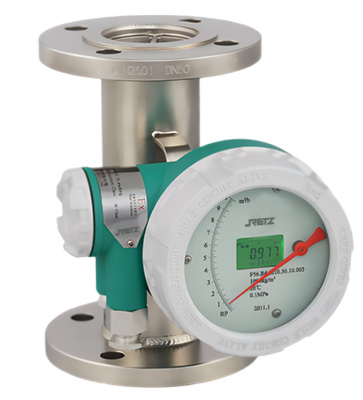

金属管浮子流量计

简要描述:RETZ进口金属管浮子流量计是工业自动化过程控制中常用的一种面积流量测量仪表,具有体积小,检测范围大,使用方便等特点

  • 品牌:RETZ
  • 工况条件:流体测控
  • 温度/压力:P-T: 40bar@400℃
  • 更新时间:2023/04/01
产品详情 在线咨询

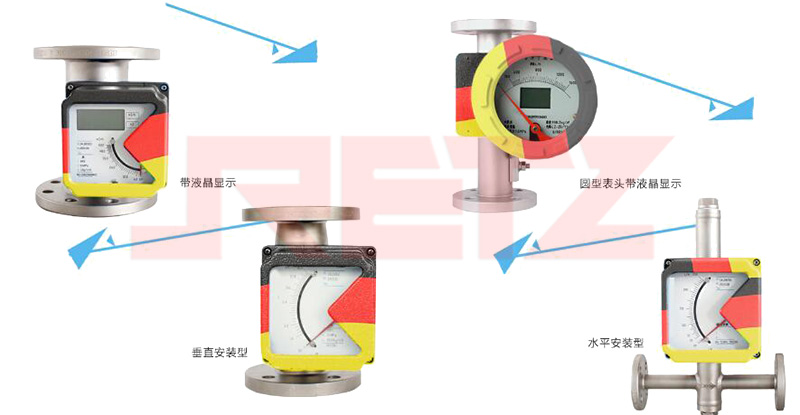

进口金属管浮子流量计 产品用途 Product use进口金属管浮子流量计2.jpg

1.主要有三大部分组成:1.测量管体;2.锥形浮子;3.指示器,它可用来测量液体、气体以及蒸汽的流量,特别适宜低流速小流量的介质流量测量 It mainly consists of three parts: 1. Measuring tube body; 2. Conical float; 3. Indicator, which can be used to measure the flow of liquid, gas, and steam, especially suitable for medium flow measurement with low flow rate and small flow rate

2.浮子的位移量与流量大小成正比,通过磁耦合系统,以不接触方式,将浮子位移量传给指示器指出流量大小 The displacement of the float is proportional to the flow rate. Through a magnetic coupling system, the float displacement is transmitted to the indicator in a non-contact manner to indicate the flow rate

3.也可配合不同的转换器,将流量值转换成标准的电远传信号如4-20mA It can also be combined with different converters to convert the flow value into a standard electrical remote transmission signal such as 4-20mA

4.实现距离远传显示、记录、积算和控制等功能 Achieve functions such as distance remote display, recording, integration, and control

5.具有特别的双指示系统,双行液晶数字显示,耐高温高压 With a unique dual indicator system, dual line LCD digital display, high temperature and high pressure resistance


主要特点 Main features

1.采用了16位微处理工业化组件,保证了优良特性 Adopt 16 bit microprocessor industrial components to ensure excellent characteristics

2.适用于小口径和低流速介质流量测量 Suitable for small diameter and low flow rate medium flow measurement

3.对于直管段要求不高 Low requirements for straight pipe sections

4.较宽的流量比10: 1  Wide flow ratio 10:1

5.双行大液晶显示,可同时显示瞬时流量和累积流量 Dual line large LCD display, which can simultaneously display instantaneous flow and cumulative flow

6.单轴灵敏指示,非接触磁耦合转动 Single axis sensitive indication, non-contact magnetic coupling rotation

7.全金属结构,适合于高温,高压和强腐蚀介质 All metal structure, suitable for high temperature, high pressure and strong corrosive media

8.可用于易燃、易爆危险场合 Can be used in flammable and explosive hazardous situations

9.可选二线制、电池、交流供电方式 Optional two-wire system, battery, AC power supply mode

10..多参数标定功能,带有数据恢复,数据备份及掉电保护功能 Multi-parameter calibration function, with data recovery, data backup, and power down protection functions


技术参数 Technical parameter


仪表型号

RJ-HA下进上出;RJ-HB下进上横出;RJ-HC下横进上横出;

RJ-HD 右进左出;RJ-HE 左进右出

DN15 -DN200

测量范围

(20℃)1-200000L/H


空气(20℃ 0.1013Mpa)0.03-4000m   /h

量程比

101    201

精度等级

1.5%     1.00%

压力损失

7Kpa -0Kpa

压力等级

标准型DN15-DN50  4.0Mpa  特殊型DN15-DN50  25Mpa

介质温度

标准型 -80℃-200℃防腐形(衬四氟)  0-85℃高温型-80-400℃

介质粘度

DN15:n<5mPa.S       DN25-DN150:n<300mPa.S

环境温度

液晶型: -30℃~85℃     指针型: -40℃~120℃

连接形式

标准型:DIN2501标准流量计

电缆接

M20*1.5

供电电源

标准型:24V DC二线制4-20mA


报警型:24V DC三线制4-20mA


交流型:85-250V AC   50HZ


电池型:3.6V 7.5AH锂电池

报警输出

上限或下限瞬时流量报警


开关量报警(最大100mA@30V DC)


继电器输出(最大5A@250V AC)

输出信号

标准4-20mA   脉冲

脉冲输出

累积脉冲输出,最下间隔50毫秒

通讯协议

RS485ModbusHART通讯协议

液晶显示

瞬时流量显示数值范围:0-50000(带小数点)


累积流量显示数值范围:0-99999999

防护等级

IP65

防爆标志

本安型iallCT6隔爆型dIICT6

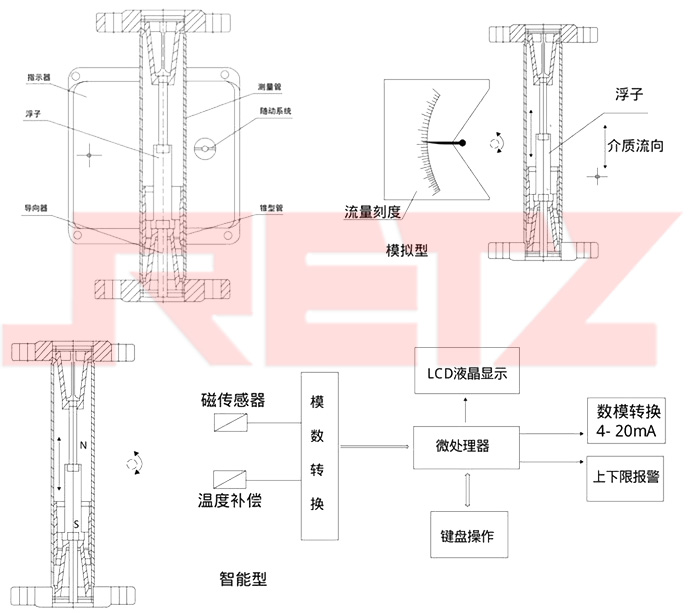

结构示意图 Structural diagram

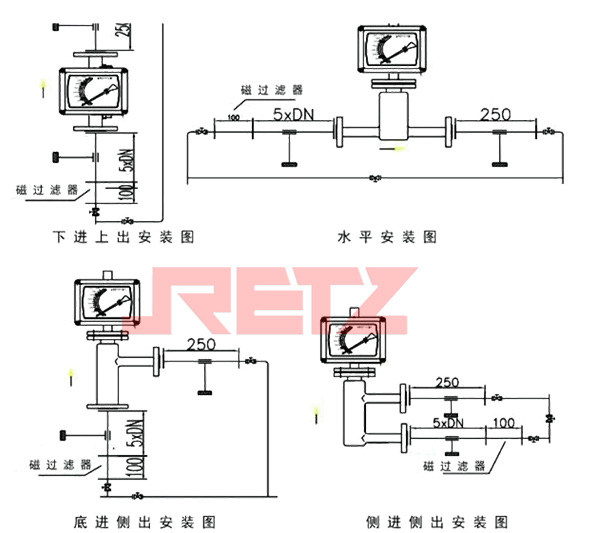

安装示意图

1.安装操作之前,应拆卸所有包装,取出运输中固定浮子的部件,并检查有无损坏

2.安装到工艺管道之前,将管道里的焊渣清洗干净,防止管道中杂质堵塞仪表,影响正常使用。

3.为了保证测量精度,推荐在流量计上游安装5DN的入口直管段,下游安装250mm出口直管段。

4.流量计有垂直安装和水平安装形式,如果是垂直安装形式安装垂直度应该保证优于1%,如果是水平安装形式,安装垂直度和水平度都应该保证优于1%。

5.若介质中含有固体杂质,应在阀门和直管段间加装过滤器;若介质中含有铁磁物质,应在流量计上游安装磁过滤器。

6.由于金属管浮子流量计安装一个磁远传系统,要确保周围其他设备产生的磁场不影响测量结果。

7.安装在管道中的仪表不应受到压力的作用,仪表的出入口应有合适的管道支撑,使仪表处于最小的应力状态。

8.低温介质测量时,需选夹套型。
