玻璃电磁阀

技术参数 Technical parameter

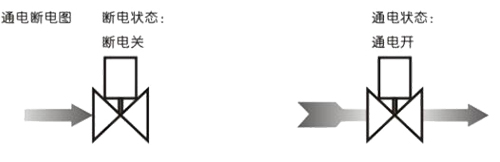

二位二通玻璃电磁阀阀体采用有机采用玻璃制成，零压差结构，常闭式原理，断电关闭，通电打开 The valve body of the two position two way glass solenoid valve is made of organic glass, with a zero pressure difference structure and a normally closed principle. It is closed when powered off and opened when powered on

当入口与出口没有压差时，通电后，电磁力直接把先导小阀和主阀关闭件依次向上提起，阀门打开。当入口与出口达到启动压差时，通电后，电磁力先导小阀，主阀下腔压力上升，上腔压力下降，从而利用压差把主阀向上推开；断电时，先导阀利用弹簧力或介质压力推动关闭件，向下移动，使阀门关闭

When there is no pressure difference between the inlet and outlet, after being energized, the electromagnetic force directly lifts the pilot small valve and the main valve closure piece upwards, and the valve opens. When the starting pressure difference between the inlet and outlet is reached, after being energized, the electromagnetic force leads the small valve, causing the pressure in the lower chamber of the main valve to increase and the pressure in the upper chamber to decrease, thereby using the pressure difference to push the main valve upwards; When the power is cut off, the pilot valve uses spring force or medium pressure to push the closing part downwards, causing the valve to close

阀体材质：有机玻璃

最大耐压：10kgf/cm²

环境温度：0℃~65℃（F级）、0℃~80℃（H级）

按阀上所标流向箭头，可任意安装；为增强使用寿命，最好线圈向上，水平安装

电压：AC220V/230V/240V/110V/24V 50/60HZ DC24V/12V+10%到-10%允许波动

密封件：VITON

参数 Parameter
