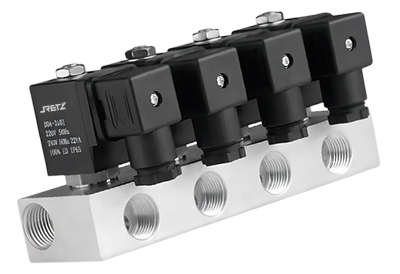

直动式二通集成并联电磁阀
简要描述：RETZ进口直动式二通集成并联电磁阀按阀上所表流向箭头一进多路出，断电关闭，通电打开阀
品牌：RETZ- 工况条件：并联开关
- 温度/压力：P-T: 0-10bar@110℃
- 更新时间：2023/04/08
技术参数 Technical parameter

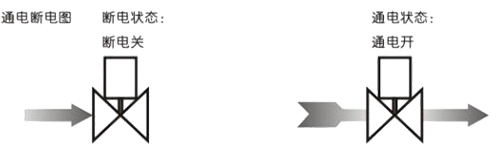

二位二通常闭型电磁阀按阀上所表流向箭头一进多路出，断电关闭，通电打开阀 The two position two normally closed
solenoid valve enters and exits in multiple ways according to the flow direction arrow on the valve, and is powered off to close and open the valve
体材质：黄铜，铝
环境温度，0~65℃
电压：AC220V/230V/240V 50/60HZ 22VA,24VA DC24V 13W
参数 Parameter
接管口径 | 流量通径mm |
| 压力差(kgf/cm²) | 最大流体温度 | 线圈配置 | 功率 | |||||||
最小压力 | 最大工作压力 | ||||||||||||
空气 | 水、热水 | 轻油 | VA | W | |||||||||
AC | 24 | ||||||||||||
AC | DC | AC | DC | AC | DC | ||||||||
1/8" | 2.0 | 0.15 | 0 | 20 | 20 | 20 | 15 | 15 | 10 | 120 | D | 22 | 13 |
3.0 | 0.23 | 0 | 10 | 10 | 10 | 10 | 7 | 7 | 120 | D | 22 | 13 | |
4.0 | 0.44 | 0 | 7 | 7 | 7 | 5 | 5 | 5 | 120 | D | 22 | 13 | |
5.0 | 0.5 | 0 | 4 | 2.5 | 4 | 2.5 | 2.5 | 2.5 | 120 | D | 22 | 13 | |
1/4" | 2.0 | 0.15 | 0 | 20 | 20 | 20 | 15 | 15 | 10 | 120 | D | 22 | 13 |
3.0 | 0.23 | 0 | 13 | 13 | 13 | 10 | 7 | 5 | 120 | D | 22 | 13 | |
4.0 | 0.44 | 0 | 7 | 7 | 7 | 5 | 5 | 5 | 120 | D | 22 | 13 | |
5.0 | 0.5 | 0 | 4 | 2.5 | 4 | 2.5 | 2.5 | 2.5 | 120 | D | 22 | 13 | |
6.0 | 0.8 | 0 | 3 | 3 | 3 | 1.5 | 2 | 1 | 120 | D | 22 | 13 | |
3/8" | 5.0 | 0.5 | 0 | 4 | 2.5 | 4 | 2.5 | 2.5 | 2.5 | 120 | D | 22 | 13 |
6.0 | 0.8 | 0 | 3 | 3 | 3 | 1.5 | 2 | 1 | 120 | D | 22 | 13 | |
9.0 | 1.65 | 0 | 1 | 1 | 0.8 | 0.4 | 0.5 | 0.3 | 120 | D | 22 | 13 | |
1/2" | 5.0 | 0.5 | 0 | 4 | 2.5 | 4 | 2.5 | 2.5 | 2.5 | 120 | D | 22 | 13 |
6.0 | 0.8 | 0 | 3 | 3 | 3 | 1.5 | 2 | 1 | 120 | D | 22 | 13 | |
9.0 | 1.65 | 0 | 1 | 1 | 0.8 | 0.4 | 0.5 | 0.3 | 120 | D | 22 | 13 | |
