组合式高压差减压阀

简要描述:RETZ进口组合式高压差减压阀主要由主阀、控制导阀、过滤器、针阀、球阀及旁通管道节流部位等组成。使用于温度≤80℃的水及非腐蚀性液体(汽油、煤油)和气体等介质

  • 品牌:RETZ
  • 工况条件:减压
  • 温度/压力:P-T: 400bar@100℃
  • 更新时间:2023/04/20
产品详情 在线咨询

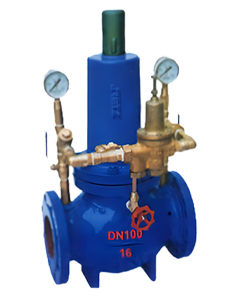

产品描述 Product Description进口组合式高压差减压阀2.jpg

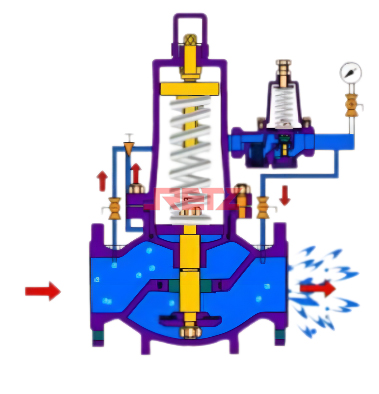

组合式高压差减压阀需要降低到一定范围的设备和管路系统上,通过调节将近口压力降低至某一需要的出口压力值。当进口压力或流量发生变化时靠介质本身的能量可自动保持出口压力在一定的范围内。

The combined high-pressure differential pressure reducing valve needs to be lowered to a certain range of equipment and pipeline systems, and the outlet pressure can be reduced to a desired value by adjusting the inlet pressure. When the inlet pressure or flow rate changes, the energy of the medium itself can automatically maintain the outlet pressure within a certain range.


主要技术性能(Main technical feature)

公称通径
DN(mm)

公称压力
PN(MPa)

  强度试验压力
Strength test pressure
    (MPa)

   最大进口压力
Maximum inlet pressure
    (MPa)

出口压力分段范围
Outlet pressure section range
          (MPa)

50~250

1.6

2.4

1.6

0.08~0.2

0.2~0.5

0.5~1.2

300~500

0.08~0.2

0.2~0.5

0.5~1.0

50~250

2.5

3.75

2.5


0.2~0.5

0.5~1.2

300~500


0.2~0.5

0.5~1.0

50~250

4.0

6.0

4.4


0.2~0.5

0.5~1.2

300~500


0.2~0.5

0.5~1.0

主要零件材质 Structure and main component materials

零件名称Part Name

零件材料Parts Material

阀体Body

灰铸铁、球墨铸铁、铸钢Gray Cast Iron,Ductile Cast lron,Cast Ste

阀盖Valve Cover

灰铸铁、球墨铸铁、铸钢Gray CastIron,Ductile Cast lron,Cast Steel

阀座Seat

铜、不锈钢CopperStainless steel

过滤器Filter

Copper

球阀Ball Valve

Copper

针阀Needle Valve

Copper

控制导阀Control Guide Valve

Copper

弹簧Spring

硅锰钢Silicon Manganese Steel

活塞Piston

不锈钢Stainless Steel

阀瓣Disc

不锈钢Stainless Steel

阀杆Stem

不锈钢Stainless Steel
