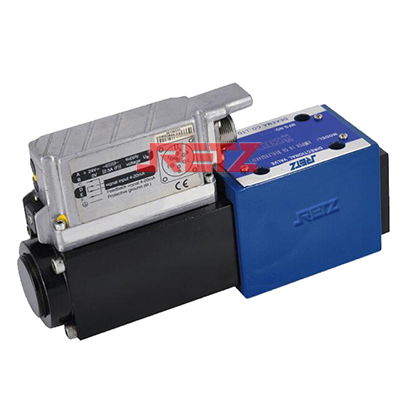

(DBETB)比例压力安全阀

●6p+PE电气连接

●信号驱动

●标准0·····10V（A1）

●版本4···20 mA（F1）

在工厂校准的阀门曲线

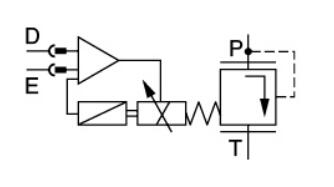

DBETB比例压力安全阀基本原理

为了调整系统的压力，一个设置点设置在触发电子设备中。在此基础上，电子控制了在锥形阀座和压缩弹簧上的电枢位置。位置控制确保了极低的滞后。那磁力决定了弹簧力直到一个新的位置达到。最大安全压力限制

如果电子元件出现故障，那么电磁电流（Imax）会以一种无法控制的方式超过指定的水平，压力就无法超过最大的弹簧力确定的水平。retz品牌 In order to adjust the pressure of the system, a set point is set in the trigger electronics. On this basis, the armature position on the conical valve seat and the compression spring is electronically controlled. Position control ensures extremely low hysteresis. The magnetic force determines the spring force until a new position is reached. Maximum safety pressure limit

If the electronic component fails, the electromagnetic current (IMAX) will exceed the specified level in an uncontrollable manner, and the pressure cannot exceed the level determined by the maximum spring force

DBETB比例压力安全阀 性能特点 Performance characteristics

直接操作的阀门，有位置反馈和板上的限制系统压力的电子学  Direct operated valves with position feedback and on-board electronics to limit system pressure

通过电枢的位置对其进行调整压缩弹簧-位置控制，最小滞后小于0.2%，快速反应时候，看到技术数据 Adjust the armature by the position of the compression spring position control, the minimum lag is less than 0.2%, and the technical data can be seen during the rapid response

即使是有缺陷的电子设备，也有安全级别的压力限制（螺线管电流I>Imax）Even defective electronic equipment has pressure limit of safety level (solenoid current I > IMAX)

对于副板附件，安装孔的配置ISO4401-03-02-0-94。每个目录下的子板是45053（订单分开）一插件连接器到DIN 43563-am6，查看目录表是08008（订单分开）For auxiliary plate accessories, the configuration of mounting holes is iso4401-03-02-0-94. The daughter board under each directory is 45053 (order separated) and a plug-in connector is connected to DIN 43563-am6. The table of contents is 08008 (order separated)

机载触发电子设备的数据遵守CE，EMC指令，EN61000-6-2∶2002-08和EN61000-6-3∶2002-08UB=24 VnomDC Data of airborne trigger electronic equipment shall comply with CE and EMC directives, en61000-6-2:2002-08 and en61000-6-3:2002-08ub = 24 vnomdc

技术数据 Technical data

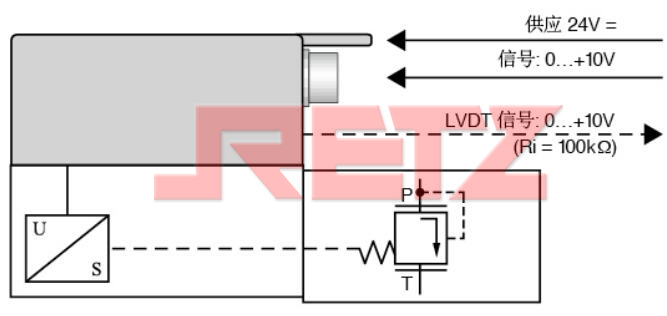

版本A1（标准）

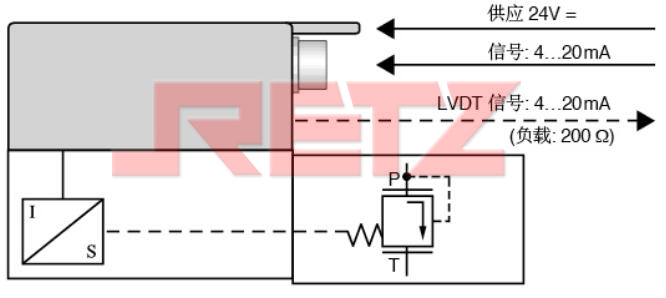

版本MA（信号）

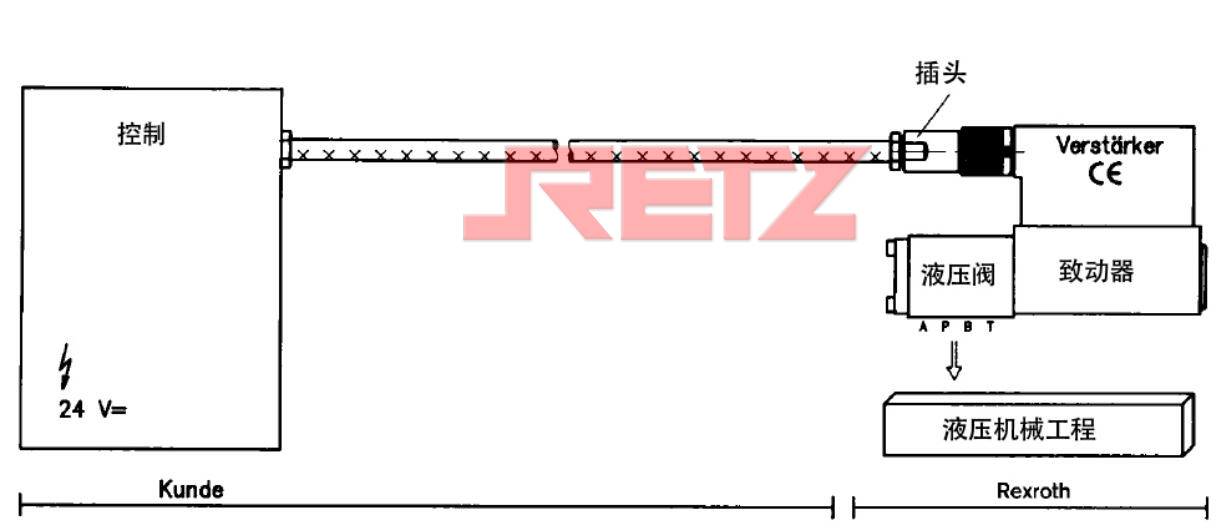

连接 Connect

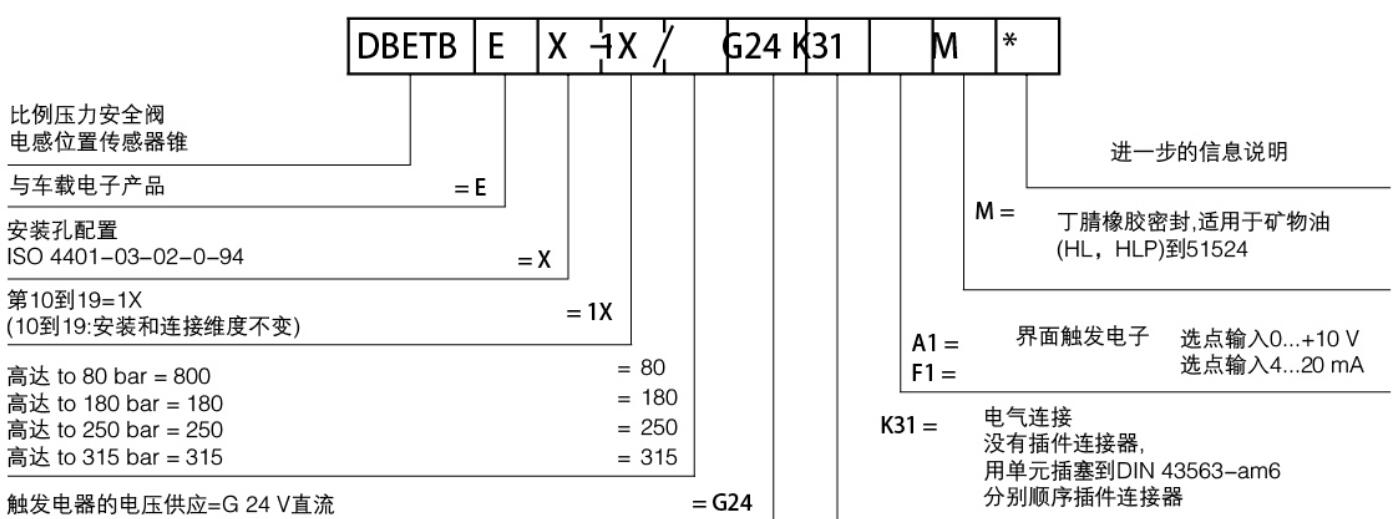

型号说明 Model description
