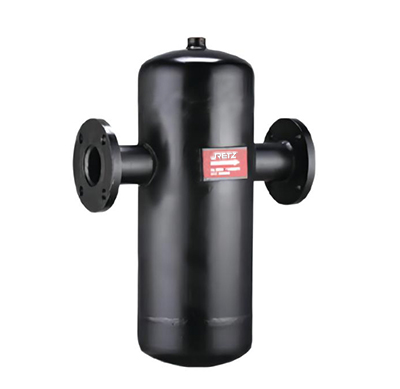

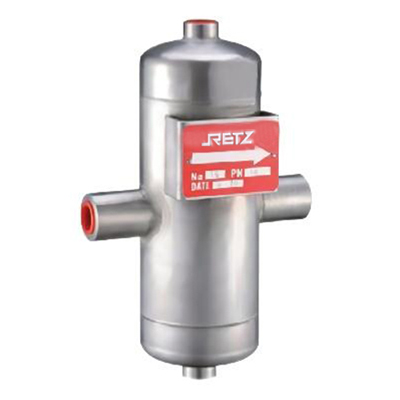

(档板式)蒸汽汽水分离器

主要性能 Main performance

(档板式)进口蒸汽汽水分离器用于分离蒸汽、压缩空气及其它气体系统中内含的液滴，大量含水的蒸汽进入汽水分离器，并在其中以离心向下倾斜式运动。夹带的水份由于速度的降低而被分离出来。被分离出来的液体流入下部经疏水阀排出体外，干燥清洁的蒸汽从分离器出口排出RETZ The baffle steam water separator is used to separate the liquid droplets contained in the steam, compressed air and other gas systems. A large amount of water containing steam enters the steam water separator and moves downward in a centrifugal inclined manner. The entrained water is separated due to the decrease in speed. The separated liquid flows into the lower part and is discharged through the drain valve. The dry and clean steam is discharged from the outlet of the separator

规格尺寸：1/2-16"(法兰/内螺纹G、NPT)  Specification and size: 1/2-16"(flange / internal thread g, NPT)

公称压力：16/25Bar, 16/25 Nominal pressure: 16bar

介质温度：≤350℃  Medium temperature:≤350℃

阀体材质：铸钢、不锈钢  Valve body material: cast steel, stainless steel

(档板式)进口蒸汽汽水分离器 特点∶ Performance characteristics

密封式设计，无易损件  Sealed design, no wearing parts

分离效率高达99%  The separation efficiency is up to 99%

最低压降（约为千分之五）Minimum pressure drop (about 5 ‰)

上部设计了排空气口 The upper part is designed with air outlet

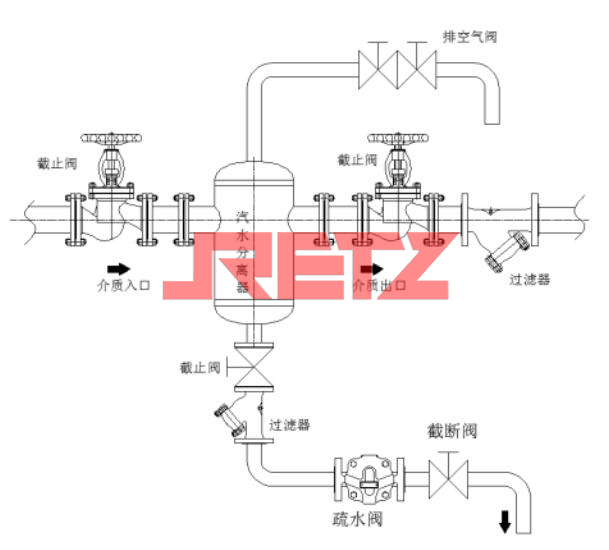

安装示意图 Installation diagram

1.安装前必须用压力气体吹扫管线、清除污垢、杂物  Before installation, the pipeline must be purged with pressure gas to remove dirt and sundries

2.本分离器应安装在蒸汽管线路较低的位置，分离器前后建议安装截止阀 The separator should be installed at the lower position of the steam pipe line. It is recommended to install stop valves in front of and behind the separator

3.汽水分离器下部应安装疏水阀，疏水阀要根据排量和工况选择  A drain valve shall be installed at the lower part of the steam water separator. The drain valve shall be selected according to the displacement and working conditions

蒸汽应用∶安装浮球疏水阀和倒吊桶疏水阀 Steam application: installation of float trap and inverted bucket trap

排空气阀压缩空气/气体应用∶浮球排液阀和倒吊桶排液阀 Air exhaust valve (compressed air / gas application): floating ball drain valve and inverted bucket drain valve
