(CFF)自封式磁性吸油过滤器
简要描述：RETZ (CFF)进口自封式磁性吸油过滤器具有手动自封阀，在更换滤芯时，应关闭自封阀，使油箱中的油液不会流出，安装时过滤器应浸入油面以下，若自封阀没有完全打开，切勿起动泵，否则会引起泵的吸空现象
品牌：RETZ- 工况条件：磁性吸油过滤
- 温度/压力：P-T: 16bar@80℃
- 更新时间：2022/12/20
性能特点 Performance characteristics
(CFF)进口自封式磁性吸油过滤器设有滤芯污染堵塞发讯器，当滤芯被污染物堵塞到出油口真空度为0.018MPa时发讯器便发出讯号，应及时更换或清洗吸油过滤器的滤芯，以免泵出现吸空等故障 retz (CFF) imported self sealing magnetic oil suction filter is equipped with a filter element pollution blocking transmitter. When the filter element is blocked by pollutants to the oil outlet vacuum degree of 0.018MPa, the transmitter will send a signal. The filter element of the oil suction filter should be replaced or cleaned in time to avoid pump suction and other failures
技术参数 Technical paramete
型号 | 公称流量(L/min) | 过滤精度(µm) | 通径(mm) | 原始压力损失(Mpa) | 连接方式 | 重量(kg) | 滤芯型号 |
CFF-510x* | 300 | 80 100 180 | Φ63 | ＜0.01 | 法兰式 | 7.0 | FX-510x* |
CFF-515x* | 400 | Φ76 | 8.5 | FX-515x* | |||
CFF-520x* | 630 | Φ101 | 10.0 | FX-520x* |
注:*为过滤精度,若使用介质为水一乙二醇,公称流量400L/Min,过滤精度80um,带ZKF-II发讯器,则过滤器型号为CFF·BH-515x80,滤芯型号为FX·BH-515x80。
Note: *retz is the filter precision. If the medium is water glycol, the nominal flow is 400L/Min, the filter precision is 80um, and the ZKF-II transmitter is provided, the filter model is CFF · BH-515x80, and the filter element model is FX · BH-515x80.

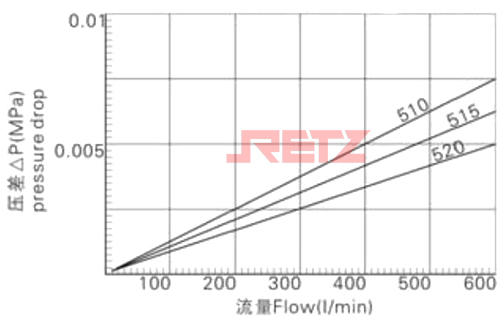

滤芯压差流量曲线 Filter element differential pressure flow curve
滤芯FX-※/※(由试验测得数据) Q-△P曲线 Filter element FX - ※/※ (data measured by test) Q - △ P curve
过滤精度：80-180μm Filtation 油液粘度Viscosity 30CST

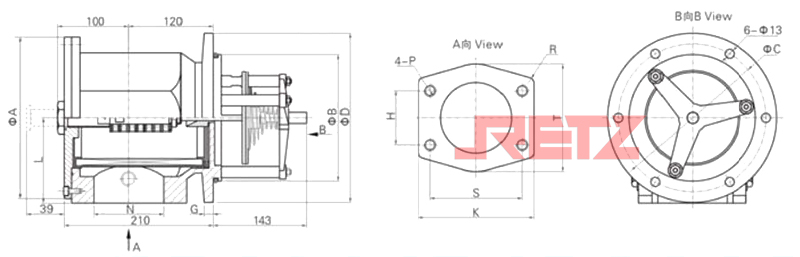

外型尺寸 Overall dimensions
型号 | N | A | B | C | D | G | H | K | L | P | S | T | R |
CFF-510x* | Φ63 | 183 | 135 | 161 | 188 | 10 | 50.8 | 88.9 | 94 | M12 | 114.3 | Φ108.8 | 13 |
CFF-515x* | Φ76 | 214 | 150 | 181 | 210 | 12 | 62 | 106.43 | 110 | M16 | 135 | Φ131 | 14 |
CFF-520x* | Φ101 | 230 | 180 | 210 | 242 | 77.7 | 130 | 120 | 162 | Φ152.4 | 16 |
注：进出口法兰由RETZ工厂提供，用户需准备d3尺寸的管子焊上即可 Note: The inlet and outlet flanges are provided by RETZ factory. Users need to prepare d3 size pipes for welding

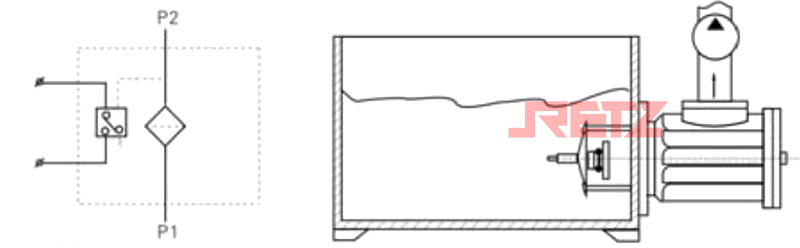

安装示意图 installation diagram
